Warehouse Steel Dock Ramps, Yard Ramp For Non Fixed Dock To Loading

Description:

• A yard ramp is a cost-effective way to streamline your supply chain and solve many day-to-day problems at your loading dock. Whether your current dock is at capacity or no loading dock at all, yard ramps will make freight handling easier than ever and help you get more jobs done in less time.

• A yard ramp is essentially a fully mobile loading dock. It provides ground-level access to your loading dock and semi-truck trailers and a level surface for transporting materials.Yard ramps are often used in combination with existing loading docks to expand their capacity without having to relocate to a larger warehouse.

Loading dock ramp size can be customizable

Main Features:

• 1. 300mm/400mm length of reinforced diamond lip
• 2. Heavay duty deck construction with grid plate on top surface.
• 3. Anti-skid high-strength steel grid plate prevent forklift drive skid on it
• 4. Heavy duty solid tyre with brake block or air inflation tyre option
• 5. Dia 80mm heavy duty high pressure hydraulic cylinders
• 6. Steel grid plate , which is hollow, so it can prevent grease, dirt, rain and snow accumulation
• 7. Manual hydraulic operation, which is suitable for explosion proof place and inflammable places.

Optional Configuration:

• Electrical hydraulic or manual hydraulic operation optional
• 300mm or 400mm lip
• With supporting leg or no need.

Applications:

1. Site: Work Shop, logistic center, warehouse, factory, explosion proof &inflammable places, etc.
2. Loading dock ramp use: Loading/unloading Cargo etc.

Safety Precaution:

1. Chain of the loading dock ramp lock with lorry tail. let the dock ramp platform tight with the truck tail.

2. Wheel chock let the mobile loading ramp can not movement when it loading and unloading goods from truck.

3. Support leg let the loading ramp more stable when loading and unloading goods from lorries.

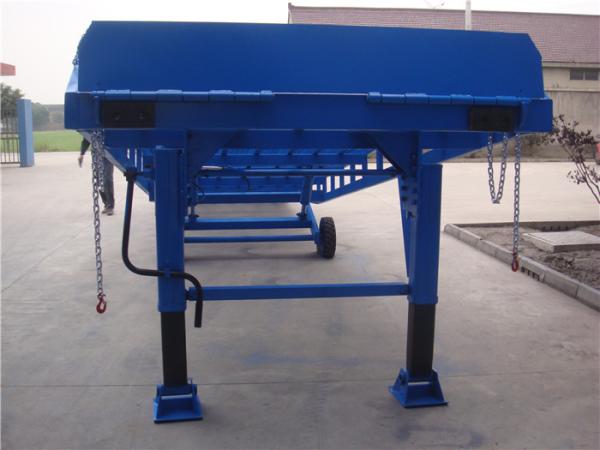

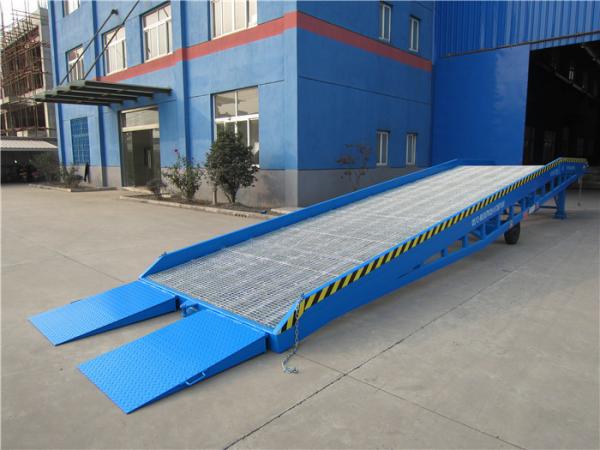

Loading dock ramp pictures:
