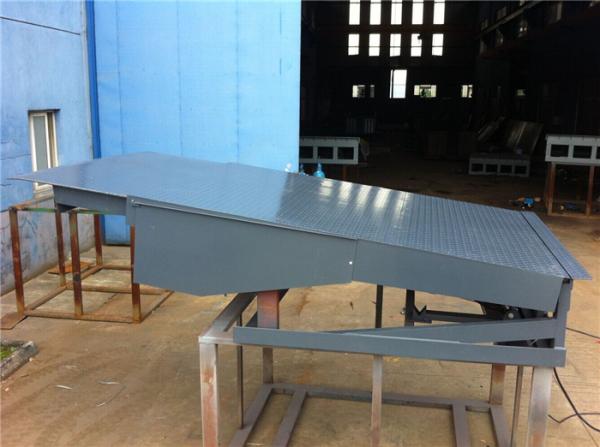

Hydraulic Telescopic Dock Leveler With Retractable Lip Cover Bigger Range Between Truck And Dock

Hydraulic Telescopic Doc Leveler Description:

• This Hydraulic Telescopic dock loading system which is mounted in front of a door opening or a building as a self-supporting unit. It consists of a hydraulic dock leveller with a telescopic lip and lateral treads which are reinforced on their bottom side.Hydraulic Dock system is operated at the touch of a button and after exact positioning the telescopic lip automatically follows the movements of the vehicle during the loading or unloading process (automatic floating position). The big advantage of this type of dock leveller is the maximum flexibility of the lip contact length. Thanks to this feature effective loading and unloading even of vehicles that are not completely correctly positioned can be guaranteed and time-consuming and complicated repositioning of the vehicle is not necessary.

Noted: Usually the hydraulic telescopic dock levellers width is 2000mm, it also can be custom as your requirements!.The lip can extend telescopic reached 800mm/900/1000mm.

Main Features:

• 1. 20mm thickness anti-skid plate make the telescopic lip
• 2. 8-10 pieces "C" or "H" beam support heavay duty deck.
• 3. Anti-skid high-strength chequered steel on the top face of the platform.
• 4. Full width one -piece lip by electric hydraulic system to retract its lip.
• 5. Heavy duty high pressure hydraulic cylinders
• 6. First class imported hydraulic power pack, good seal capacity and long life
• 7. Rubber bumpers to protect machine-self when the truck reverse to dock platform.
• 8. Full range toe guard to protect user when operater use it.

Configurations:

• Electric system: Schneider contactor, CHINT electrical components
• Hydraulic System: ARGO-HYTOS Swiss brand power pack
• Platform Surface : 6mm/8mm/10mm Antiskid checkered plate
• Main Support: 8-10 pieces"C" or "H" beam under the deck to supporting.
• Deck lip platform thickness: 20mm anti-skid plate
• High-pressure oil hose: Double steel mesh in the rubber hose.

Optional Configuration:

• Hydraulic Power Pack:ARGO-HYTOS Swiss brand.
• Electric controller with emergency or without.

Applications:

1. Site: Work Shop, logistic center, big cold storge centre etc.

2. Hydraulic telescopic dock levellers use: Loading/unloading Cargo etc.

Hydraulic telescopic dock levellers ketch:

Hydraulic telescopic dock levellers safety precaution:

1. Emergency button

2. Toe guards on both side to protect operation worker feet.

3. Maintaince rod break though the lip fully protect the safety of the serviceman.

4. Bumper block protect the dock leveler it-self when truck reverse to th.

5. Oil tube with steel mesh structure . Max oil pressure 48MPA.

6. Double cylinders support the lip telescopic that so stable and reliable.
