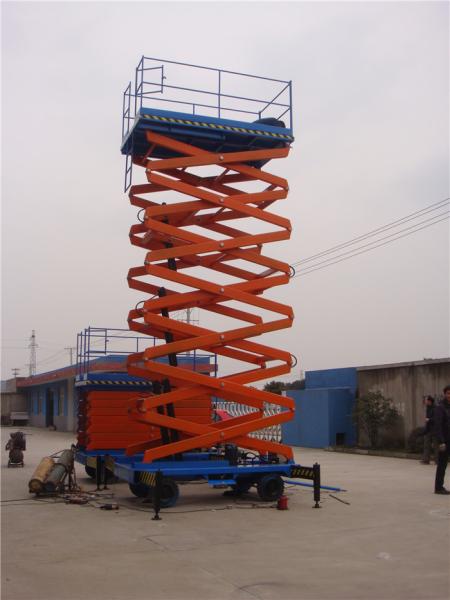

Aerial Working Anti-skid Diamond Platform 9M Height Hydraulic Mobile Scissor Lift

Description:

• 1. Mobile scissor lift is a professional safety equipment for aerial work, which is scissor mechanical structure by electric hydraulic.

• 2. Working platform material is anti-skid diamond platform.

• 3. Lifting height is from 3m-16m, or as your custom.

• 4. This lifting work platform make light load capacity(300kg-500kg) ,It is wide rang application in the workshop,warehouse, enterprise, hotel.It is suitable for 1-2 persons working on the platfrom at the same time.

Noted: Mobile scissor lift also can be custom as your requirements!

Main Features:

• 1. Reinforced chassis design and scissor arm to reduce the platform swing when working.
• 2. Anti-explosion valve between the cylinder and oil tube to prevent the mobile scissor lift drop down at moment when it lifting working but in problems.
• 3. One controller on the lift table platform is easy to help worker operate the scissor lift lifting up and come down.
• 4. Full handrail around the platform to protect the worker safety when they work on the platform.
• 5. Emergency lowering valve help to solve if the machine have problems when it work on the lifting height .
• 6. Nomal Power is 380V 50HZ AC, but option extra DC battery can sovle the aerial work platform outside if no enough power cable or not conveniently to connect AC power.
• 7. Mobile scissor lift, there are two option for mobil, one is by manual, another is by electric mobile.

Configurations:

• 1.Electric system: Schneider contactor, CHINT electrical components
• 2.Hydraulic System: Hycman brand power pack ,KS brand (Made In China) or imported brand as requirements
• 3.Scissor Arm Support: Hi-strength Manganese steel or rectangle tube Q345 B
• 4.Platform Surface : Antiskid checkered plate steel sheet.
• 5.Fence at three sides of the top platform but reserve one door for worker in and out. This door can design inter-locking to protect user safety.
• 6.High-pressure oil hose: steel wire mesh between in double hydraulic rubber hose , ensure the oil hose have safety anti-pressure ability.

Optional Configuration:

• 1.Hydraulic Power Pack: China power pack or imported power pack as your requirements
• 2.Interlocking device to protect worker safety on the platform.
• 3.Power: AC 380V 50HZ. AC 415V 50HZ. or extra DC battery to optional as yours

Applications:

• 1. Site: Work Shop, logistic center, warehouse aerial working, etc.
• 2. Mobile scissor table application : for aerial working, like hotel aerial cleaning, maintenance power line, etc.

Mobile scissor table​​ Safety precautions:

• 1. Emergency valves
• 2. Anti- Explosion safety valves between oil cylinder and oil tube.
• 3. Over height protection device
• 4. Over load alarm or over load buzzer.
• 5. Lowering valve

Mobile scissor lift sketch:
