With Extendable Platform 12M Aerial Self-propelled Construction Scissor Lift

Description:

• 1. Self-propelled Construction Scissor Lift is a professional safety mobile and portable full electric scissor lift for aerial working platform.

• 2. Full electric wheel driving.Which single person can operate lift.

• 3. Working platform material is anti-skid diamond platform, scissors material are high-strength manganese steel structure and solid tyre wheel.

• 4. Lifting height is from 3m-16m, or as your custom.

• 5. Power voltage, it can be custom DC24V battery or AC415V and others.

• 6. Self-propelled sciss lift is widely used indoor/outdoor aerial working platform in the workshop,warehouse, enterprise, hotel.It is suitable for 1-2 persons working on the platfrom at the same time.

• 7. Scissor mechanical structure by electric hydraulic.

• 8. Safety device, there is a over height protected, explosion proof valves and manual lowering valve.

• 9. Specially requirement: can be added gradienter to make sure more banlance

• 10. Two control boxes, one box is operated on platform.

Noted: Mobile scissor lift also can be custom as your requirements!

Main Features:

• 1. Reinforced chassis design and scissor arm to reduce the platform swing when working.
• 2. Anti-explosion valve between the cylinder and oil tube to prevent the mobile scissor lift drop down at moment when it lifting working but in problems.
• 3. One controller on the lift table platform is easy to help worker operate the scissor lift lifting up and come down.
• 4. Full handrail around the platform to protect the worker safety when they work on the platform.
• 5. Emergency lowering valve help to solve if the machine have problems when it work on the lifting height .
• 6. Nomal Power is 380V 50HZ AC, but option extra DC battery can sovle the aerial work platform outside if no enough power cable or not conveniently to connect AC power.
• 7. Self-propelled scissor lift are all moved by full electric moved.

Configurations:

• 1.Electric system: Schneider contactor, CHINT electrical components
• 2.Hydraulic System: Hycman brand power pack ,KS brand (Made In China) or imported brand as requirements
• 3.Scissor Arm Support: Hi-strength Manganese steel or rectangle tube Q345 B
• 4.Platform Surface : Antiskid checkered plate steel sheet.
• 5.Fence at three sides of the top platform but reserve one door for worker in and out. This door can design inter-locking to protect user safety.
• 6.High-pressure oil hose: steel wire mesh between in double hydraulic rubber hose , ensure the oil hose have safety anti-pressure ability.

Optional Configuration:

• 1.Hydraulic Power Pack: China power pack or imported power pack as your requirements
• 2.Interlocking device to protect worker safety on the platform.
• 3.Power: AC 380V 50HZ. AC 415V 50HZ. or extra DC battery to optional as yours

Applications:

• 1. Site: Work Shop, logistic center, warehouse aerial working, etc.
• 2. Mobile scissor table application : for indoor/outdoor aerial working, like hotel aerial cleaning, maintenance power line, etc.

Mobile scissor lift​​ Safety precautions:

• 1. Manual emergency safety valves
• 2. Anti- Explosion safety valves between oil cylinder and oil tube.
• 3. Over height protection device
• 4. Over load alarm or over load buzzer.
• 5. Lowering valve

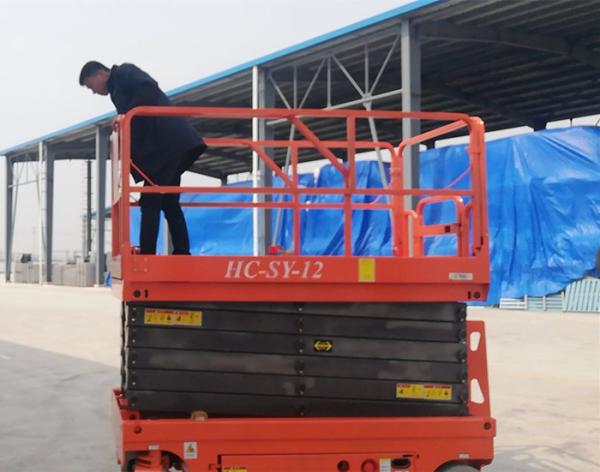

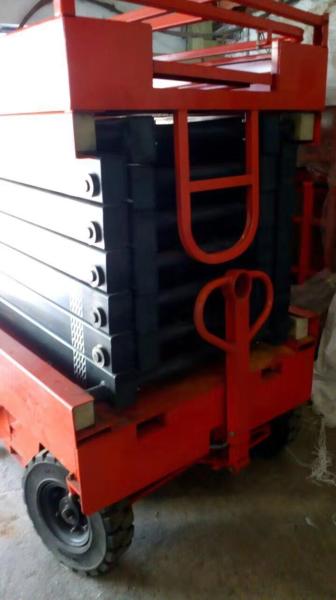

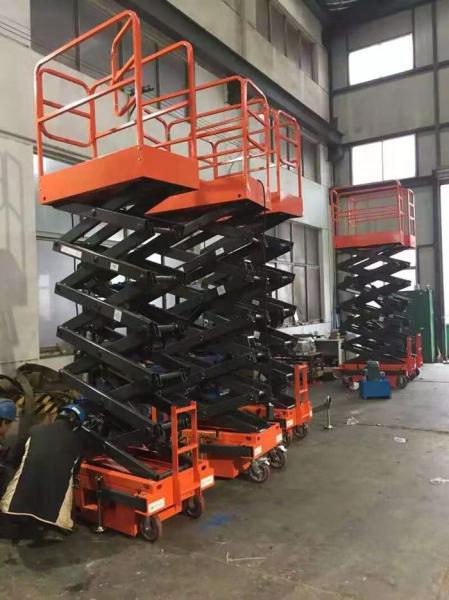

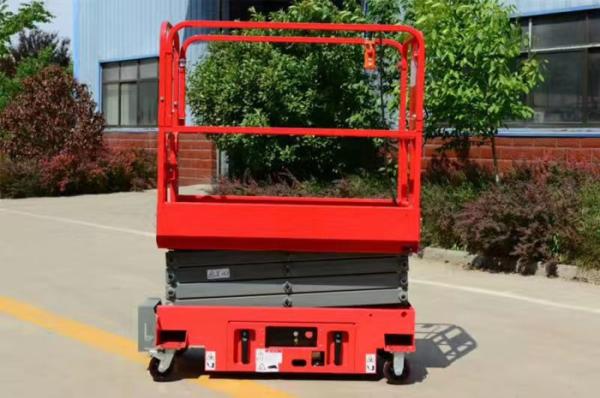

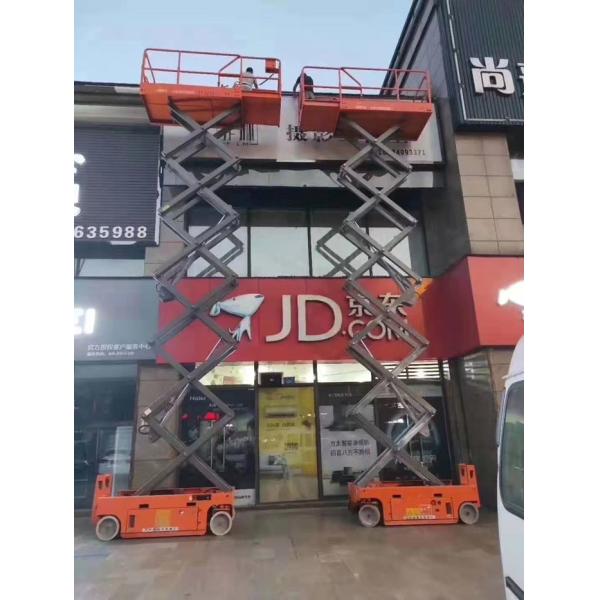

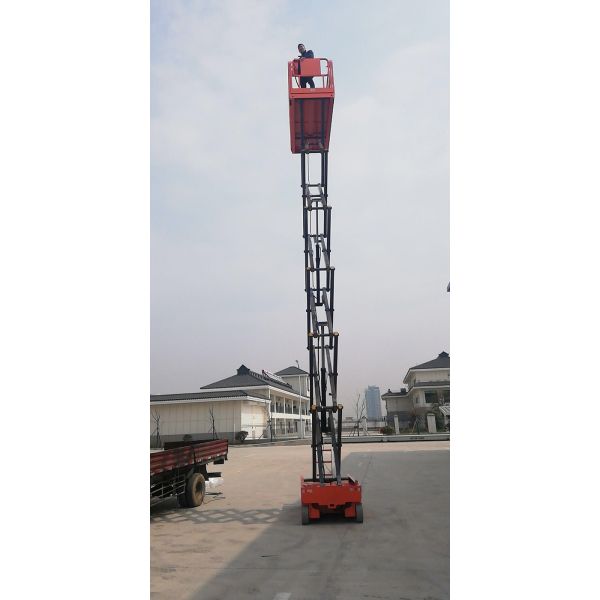

Mobile scissor lift reference pictures:
