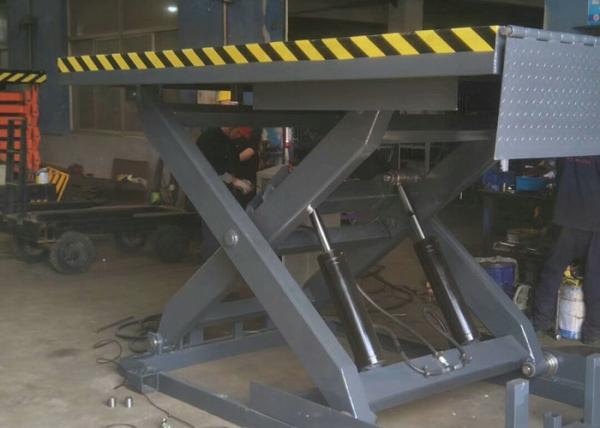

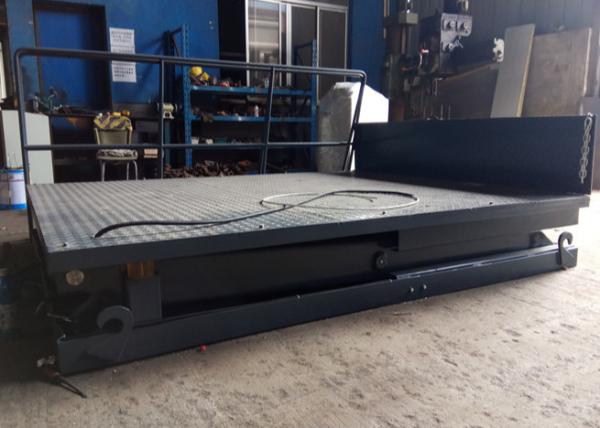

380V,400mm Lip Hydraulic Dock Lift Equipment Used At Truck Loading Bay

Description:

• Hydraulic dock lift equipment have both scissor lift and dock leveler function, which is hydraulic scissor lifting machanism, and it is widely used in warehouse to loading and unloading for truck or container. Main components are the top platform, the lower frame, the scissor system activated by one or more cylinders and hydraulic motor.A Hydraulic dock lift equipment is usually the smallest of the lift platform you’ll find at any given job site, it is also the most versatile one.In many cases, they represent the best solution for the manual load handling, in full observance of the safety standards with regards to functioning, cost-saving, safety and health of operators during work

Noted: Usually scissor lift dock leveelr width is 2000mm, if over 2000mm width, it will need to spliced platform. And also can be custom as your requirements!


Main Features:

• 1. Reinforced anti-skid checkered surface material, which can prevent people and goods slipping down, more safety
• 2. Heavy duty & high strength manganese material construction
• 3. Anti-skid high-strength chequered platform, and lip for optional, need or not.
• 4. Full width one -piece or two lip for option
• 5. Heavy duty high pressure cylinders
• 6. First class hydraulic power unit, good seal capacity and long life
• 7. Safety protected 1, with Explosion Proof Lock Valve
• 8. Safety protected 2 for optional, with Safety toe guard to protect users if need
• 9. Used truck loading bay equipment
• 10. Lip size 400mm or custom as yours

Parameters:

• Electric system: Schneider contactor, CHINT electrical components ( Made In China)
• Hydraulic System: Hycman brand power pack(Made In China) , Oiltec (Import brand) or as requirements
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate steel
• Main Support: 10# I beam
• Deck lip platform steel thickness:6mm/8mm/10mm checkered plate(If need lip)
• High-pressure Oil Pipe: Double wire-steel mesh in hydraulic rubber hose

Scissor Lift Dock Leveelr precautions:
1. Manual decline valves
2. Anti- Explosion safety valves between oil cylinder and oil tube.
3. Number of floor layers indicator
4. Door inter-locking device if indeed need.
5. Over height protect
6. Running indicator
7. Over load alarm

Optional Configuration:

• Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:
1. Site: Work Shop, logistic center, warehouse loading bay, etc.
2. Scissor lift dock leveler application: Lifting and Loading/unloading Cargo as dock leveler function, etc.


Scissor lift dock leveler​ sketch:
