Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
Specifications
Brand Name :
Kinglift
Model Number :
KLDS3431
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
60sets/month
Delivery Time :
20-25days
Packaging Details :
Wrapped in bubble wrap
Product name :
Foam Loading Dock Seal
Dock seal size :
3400*3100mm
Application :
The Foam Dock Seal With Head Curtain accommodating a variety of vehicle heights
Head Curtain Size :
600mm
Both Size Foam Size :
300*250mm
Warning Stripe :
Yellow Stripes
Curtain Color :
Black & yellow
Installation Base :
Concrete or Steel Flat Surface
Description

Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain

Description:

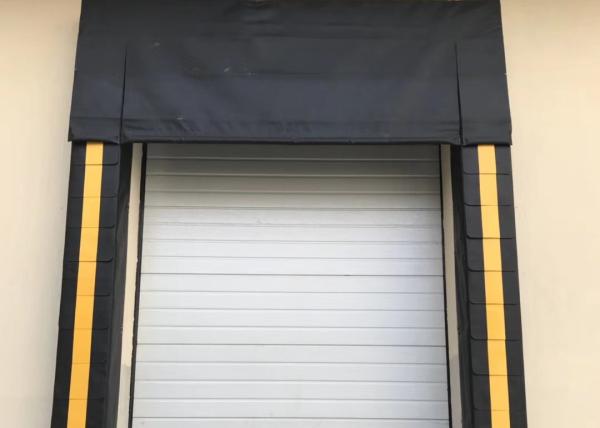

  • Loading dock seal, which is installed on the wall of dock door, forms a close space when vehicle pressed onto its surface.It has good seal thermal function,environmental protection, free weather effect,significant resistance for insect entering and high efficiency during the loading and unloading.

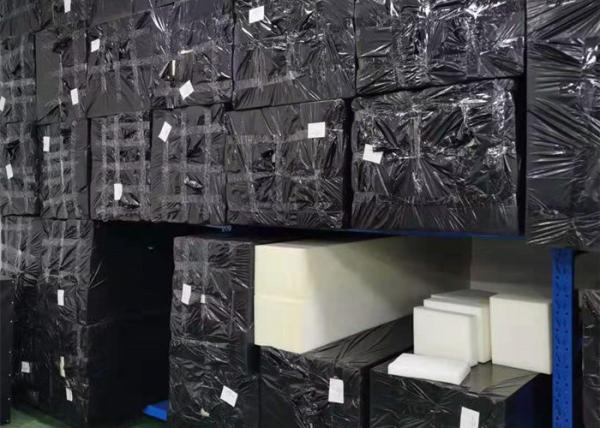

  • Sponge Dock Seal Inside is filled with highly compressed sponge, with density of 30KG/m3. Special pressure-relief design can reduce the friction with dock and trucks. This will prolong work life of surface fabric.

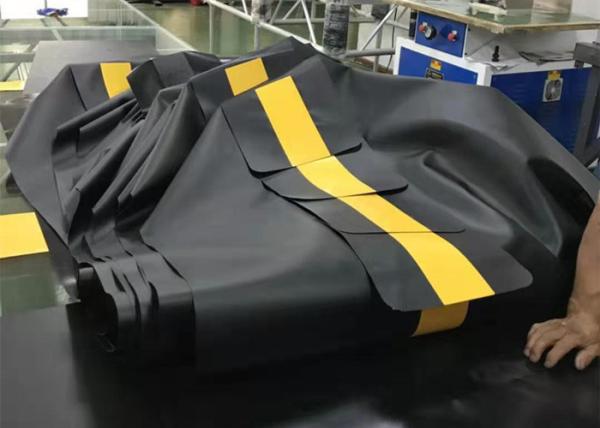

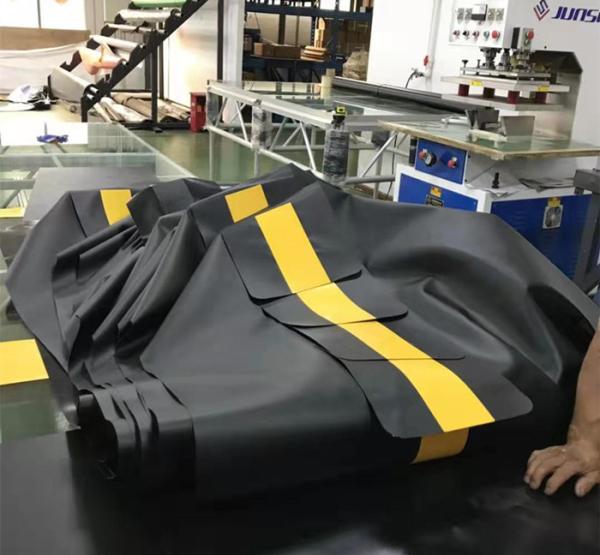

  • Surface fabric:Made from PVC fabric with self-extinguishing function. Weight: 800g/sqm.There are fabric shutter folds on top beam and two side columns. Thus it can endure long-time friction and squeezing.
  • A wide selection of durable coated fabrics provide maximum durability.
  • Full length yellow strips guide drivers to the dock.
  • For the warehouse dock door, they are three types dock shelters for different warehouse, Mechanic dock shelter, Inflatable dock seal, Sponge dock shelters for optional.

Size

Size 3400mm*3400mm , 3200*3200mm , 3400*3600mm,3400*3800mm,custom made is available
Function

Creating a tight seal that blocks out the foul weather, insect,dust and energy-saving
Top Curtain 600mm size or tailored
Material

PVC waterproof and abrasion resistant fabric cover on the high density foam pad.
Tight Sealing Efficiency

Highly resilient, open-celled polyurethane foam keeps original shape and compresses easily
Working temperature

-35℃~+70℃
Installation Base Concrete / Steel
Using Area Loading and unloading area
Low maintenance Yes
Environmental protection Yes
Safety System Bright yellow stripes
Package Pallet or in bulk.


Main Features:

  • 1. Material:0.8mm PVC covered on 300*250mm or 300*300mm foam, which is provide an effective barrier against the elements, keeping loading docks safe and productive
  • 2. Frame: backboard is made by wooden or galvanized plate or tube.
  • 3. Application: A loading dock seal can also be a critical component in containing cooled air inside climate-controlled and cold storage facilities for superior energy efficiency.
  • 4. Safety equipment: Triangle pad at the bottom and with yellow stripes guide drivers back up truck to the dock.
  • 5. Bright yellow reflective strip helps truck to berth accurately.
  • 6. Dock seal with adjustable head hood can suitable kinds of different size truck.
  • 7. Also suitable for loading bay site, which have dock leveler loading equipment.
  • 8.Providing the closing space for the loading and unloading.


Optional Configuration:

  • Top hood:Fixed hood, adjustable hood, or 600mm curtain


Applications:

  • 1. Site: Loading bays, Loading docks, Logistics, Cold rooms, Warehouse, Factories, etc.
  • 2. Dock seal application: good seal thermal function,environmental protection,against four weather, etc.


Dock seal:

Foam Loading Dock Seal For Warehouse Cold Room With Head Hood Curtain
