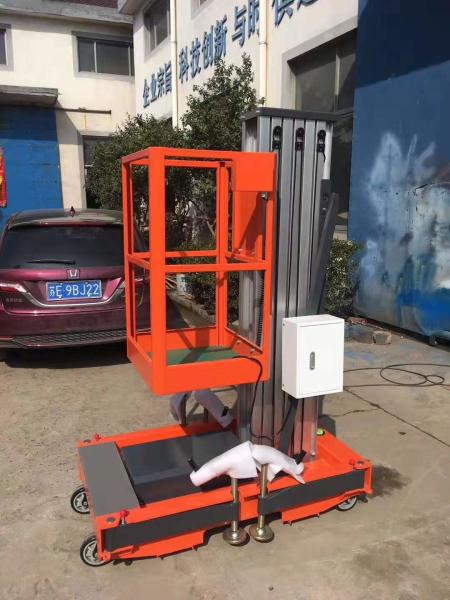

Access AWP Aerial Work Platform By Hydraulic Lifting Up 125kg Loading CE
Access AWP Aerial Work Platform By Hydraulic Lifting Up 125kg Loading CE
Access AWP Aerial Work Platform By Hydraulic Lifting Up 125kg Loading CE
Access AWP Aerial Work Platform By Hydraulic Lifting Up 125kg Loading CE
Specifications
Brand Name :
Kinglift
Model Number :
GTWY810
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
120sets/month
Delivery Time :
10-15days
Packaging Details :
Wrapped in bubble wrap
Product Name :
AWP Aerial Work Platform
Loading capacity :
125kg
Table size :
610*630mm or custom, etc
Lifting height :
4m,6m,8m,10m
Motor Power :
1.1kw / 2.0kw /3.2kw /,4.0kw, etc
Power Voltage :
AC380V 50HZ or DC
Color :
Grey,Blue, Green, Yellow or custom color
Lifting type :
Electric hydraulic
Walking type :
Manual or electric working
Description

Aerial Access Platform, AWP Aerial Work Platform By Hydraulic Lifting Up

Description:

  • AWP aerial work platform is a professional equipment made by alloy aluminum which is for aerial work, It is easy to operate and can be customized as per the requirements from the the customers. These aerial working equipments useful to maintenance servic industry which is conviently,quickly and easily. They are have single mast, double mast, triple mast, four mast, six mast working platform for optional.

Name Model No. Max.H (m) Max.working H (m) Loading capacity
(kg)		 Platform size
(m)

Voltage

V/HZ

 Power
(KW)		 Self-weight
(kg)		 Overall size (m)
Single mast GTWY410 4 5.7 125 0.61*0.63 AC220/50HZ 0.75 230 1.36*0.82*1.65
GTWY610 6 7.7 125 0.61*0.63 AC220/50HZ 0.75 250 1.36*0.82*1.65
GTWY810 8 9.7 125 0.61*0.63 AC220/50HZ 0.75 280 1.46*0.82*2.0
GTWY910 9 10.7 125 0.61*0.63 AC220/50HZ 0.75 320 1.66*0.82*2.0
Double mast GTWY620 6 7.7 200 1.17*0.54 AC220/50HZ 1.1 450 1.38*0.82*1.65
GTWY820 8 9.7 200 1.27*0.54 AC220/50HZ 1.1 520 1.48*0.82*1.8
GTWY1020 10 11.7 200 1.37*0.54 AC220/50HZ 1.1 600 1.58*0.88*2.0
GTWY1220 12 13.7 200 1.47*0.54 AC220/50HZ 1.1 650 1.68*0.88*2.0
Triple mast GTWY1325 13 14.7 250 1.48*0.85 AC220/50HZ 2.2 1000 1.9*1.15*2.45
GTWY1425 14 15.7 250 1.56*0.85 AC220/50HZ 2.2 1100 2.2*1.15*2.45
Four mast GTWY1420 14 15.7 200 1.56*0.85 AC220/50HZ 3 1200 2.2*1.15*2.45
GTWY1520 15 16.7 200 1.56*0.85 AC220/50HZ 3 1400 2.2*1.15*2.7
GTWY1620 16 17.7 200 1.56*0.85 AC220/50HZ 3 1500 2.2*1.15*2.9
Six mast GTWY1615 16 17.7 150 1.56*0.95 AC220/50HZ 2.2/1.1 1550 2.4*1.3*2.15
GTWY1815 18 18.7 150 1.56*0.95 AC220/50HZ 2.2/1.1 1700 2.4*1.3*2.25
GTWY2015 20 21.5 150 1.56*0.95 AC220/50HZ 2.2/1.1 1850 2.4*1.3*2.45


Noted: It also can be custom as your requirements!


Main Features:

  • 1. Reinforced diamond working platform
  • 2. Section aluminum make it that is lightweight to easy to movement
  • 3. Extended support leg make the working platform more stable when it lifting up.
  • 4. Eight point supporting to reduce wobble when lifting up.
  • 5. Internal hydraulic cylinder make the machine look at beautiful.
  • 6. First class hydraulic power unit, good seal capacity and long life
  • 7. Gradienter on the aerial work platform to let user easy to judge of the ground level situation.
  • 8. Over- load alarm to protect safety to worker.
  • 9. Lowering-valve will make it come down by muanual, it is solution problem when working platform work in lifting up.

Configurations:

  • Electric system: Schneider contactor,CHINT electrical components
  • Hydraulic System: Hycman brand power pack or as requirements
  • Platform Surface : Antiskid checkered plate
  • High-pressure Oil hose: Double wire mesh in hydraulic rubber hose
  • Full barrier around platform to protect worker work safety.

Optional Configuration:

  • Hydraulic Power Pack: China power pack or imported power pack as your requirements

Applications:


1. Site: Work Shop, logistic center, warehouse aerial working, etc.
2. AWP aerial work platform application: for aerial working, like hotel aerial cleaning, maintence, etc.

Aerial work platform safety precautions:
1. Emergency valves
2. Anti- Explosion safety valves between oil cylinder and oil tube.
3. Over height protection
4. Over load alarm
5. Gradienter help to judge the ground level situation
6. Manual lowering valve.


Access AWP Aerial Work Platform By Hydraulic Lifting Up 125kg Loading CE

Access AWP Aerial Work Platform By Hydraulic Lifting Up 125kg Loading CE

AWP aerial work platform operate instruction:
