Specifications
Brand Name :
KING LIFT
Model Number :
KLSD4050-H
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
638-2143USD/ea EXW
Payment Terms :
L/C, T/T
Supply Ability :
2000pcs/per month
Delivery Time :
15-20 days
Packaging Details :
exporting packing
Open style :
Automatic/Manual
Door material :
Sandwich board 50mm,Both side 0.5mm galvanized plate steel
Surface finishing :
finished with coating
Opening Way :
Wall Switch and Pull rope control
Position :
Logistic Warehouse
Color :
RAL9003 Standard， Other colors are customized
Door Panel Height :
Standard H=500mm
Panel thickness :
40±2mm,50±2mm,80±2mm
Panel facial pattern :
Ribbed
Wind Resistance :
≥700pa
Open Speed :
0.25m/S
Max Width :
W=11350mm
Description

Industrial Overhead Sectional Door:

  1. Sectional door whatever from thermal efficiency and extreme durability to architecturally inspired models considering. It's the right garage door for your building application, including commercial, industrial, agricultural, and loading dock doors.
  2. Sectional garage doors are designed with horizontally split door panels that move vertically to open and then slide into horizontal tracks curved into the garage. As a result, the entire door sits parallel with the ceiling at a higher level than the door ordering height.
  3. These industrial doors are commonly used in industrial and commercial settings, such as warehouses, loading docks, and distribution centers, as they are durable, secure, and can be customized to fit the specific needs of the space.

Model No Size Lift Type Control Way Pannel Thickness Voltage Vision Window options Speed
KLSD3030-V W3000×H3000mm Verticle Lift Up Wall Switch 40±2mm 220V/380V Non 0.25m/S
KLSD4040-S W4000×H4000mm Stand Lift Up Pull Rope 50±2mm 220V/380V 660*330 1pcs 0.25m/S
KLSD4050-H W4000×H5000mm High Lift Up Remote 80±2mm 220V/380V 660*330 2pcs 0.25m/S

***Size:Max width W=11350mm, Other size can be customtized.
***Lit Type: Different lift type design based on :1. The height of door opening 2.The Height between floor level to ceiling
***Control Way:Standard is Wall Switch + Pull Rope. Others are options
***Pannel Thickness: Normally is 40mm±2, more thicker is better thermal insulation.
***Voltage: customized is available
***Vision Window Nos as customer requirements
***Safety Precautions:Wire rope breaking protection device, Spring breaking protection device...

*** Standard pannel H=500mm***

Sectional garage doors satisfy applications where durability, reliability and economy are top priorities

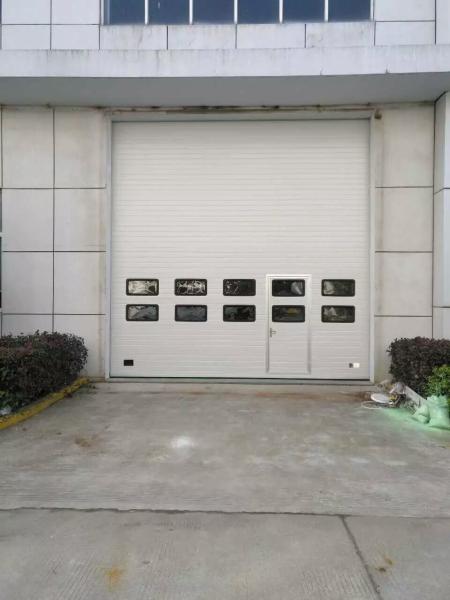

***VISION WINDOW Nos and MAN DOOR As customer's requirements to design***

Sectional garage doors satisfy applications where durability, reliability and economy are top priorities

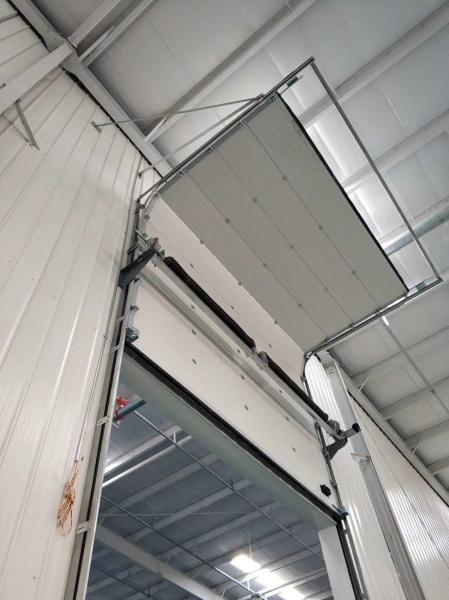

***Industrial Door Structure***

Sectional garage doors satisfy applications where durability, reliability and economy are top priorities

Industrial Door Lift Up Type and Open Way:

Sectional garage doors satisfy applications where durability, reliability and economy are top priorities
