Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
Specifications
Brand Name :
SURING-MAX
Model Number :
SR27-500DF
Certification :
CE EN15194
Place of Origin :
CHINA
MOQ :
1SETS
Price :
USD302/SET
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram,PAYPAL
Supply Ability :
500SETS PER MONETH
Delivery Time :
7-30 DAYS
Packaging Details :
2motors in 1 carton without rim assembled, 1 sets with rim assembled and controller parts in one big carton
Colour :
black
Rated Power :
500w
Efficiency :
≥80%
Net weight :
6kg
Dropout :
100mm
Spoke holes :
36
Structure :
Gearless motor
Brake support :
Disk brake/V brake
Position :
Front wheel
Speed :
25-50km/h
Max speed :
50 KMH
Voltage :
48V
Range per power :
31 - 60 km
Power supply :
Lithium Battery
Motor :
Brushless
Description

Fast speed Mounting ebike kit Front 500w motor wheel with CE certificate

Motor specification:

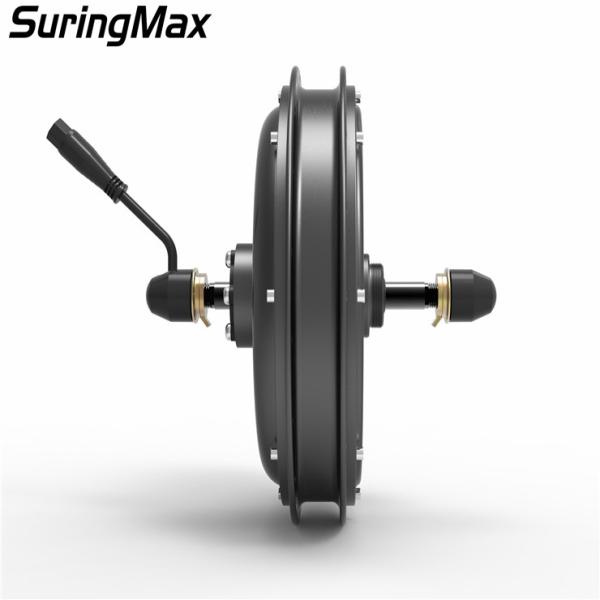

This is the front hub motor for ebike, can assemble on to all regular bicycle to change into ebike .

You will get speed, power when ride it, which will save your time and help you riding Farer.

The advantage:

1.Fast speed

2.Easy to assemble

3.Fashion style

4.Environmental

6.Comfortable

Rated voltage/power 48V500W
Rated speed 25-50km/h
Max speed 55km/h
Dropout 100mm
Assemble Postion Front wheel
Brake available V brake /disk brake
Suitable controller 36V22A-25A
Suitable rim 20-29inch ,19mm
Max torque 50Nm
Available voltage

24-48V
Packing size 2 motors in one carton:48*28*28

Drawing of the motor

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w MotorFast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

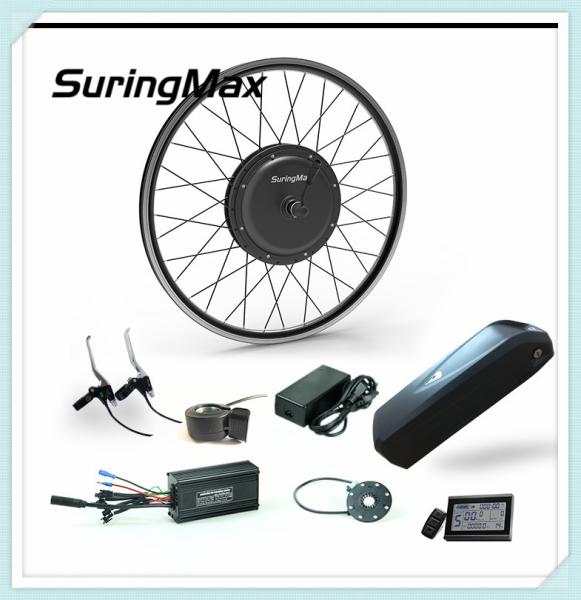

Necessary spare parts into the Ebike kit to make it go:

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

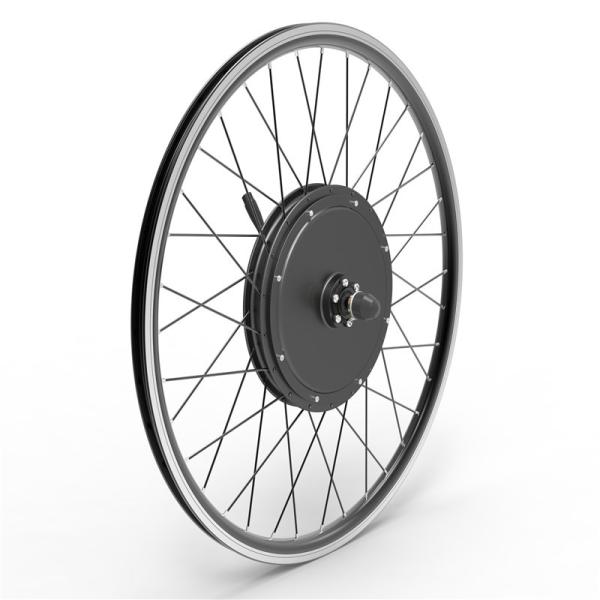

1.Motor in wheel:16-29 inch rim, double/single wall rim ,steel spokes or stainless steel spokes for choice

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

2.Controller: 48V22A for 500w motor, waterproof connection

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

3.Lithium battery:Many shape for choice, rack type or frame type ,LG ,panasonic ,Samsung cells amd so on:

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
4.Charger: 36V2A smart charge

5.Display: Economic and Classic for choice:

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

LED900S LCD5 LCD3 LCD8

6.Ebrake: Standard ebrake and easy assemble brake sensor(attach on the original brake of the bike ) for choice:

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w MotorFast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

7.PAS: 3 kind for choice,single hall and double hall

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

8.Thumble throttle: Twist throttle available too,thumb throttle is more safe.

Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor

We can provide both the motor and the kit, please contact with us for more details.

FAQ:

1.Can we place a small order before the batch order?
--Yes .


2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes
Cause the controller and Motor belongs to the OEM products, different customers have the different request.


3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.


4.Do you provide any OEM?
Yes, we can design motor for some special request.


5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare parts

We will send the new one for replace together with the every next order, you dont need to send the broke goods back.Fast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w MotorFast Speed Electric Mountain Bike Kit, CE Approval Front Wheel 500w Motor
