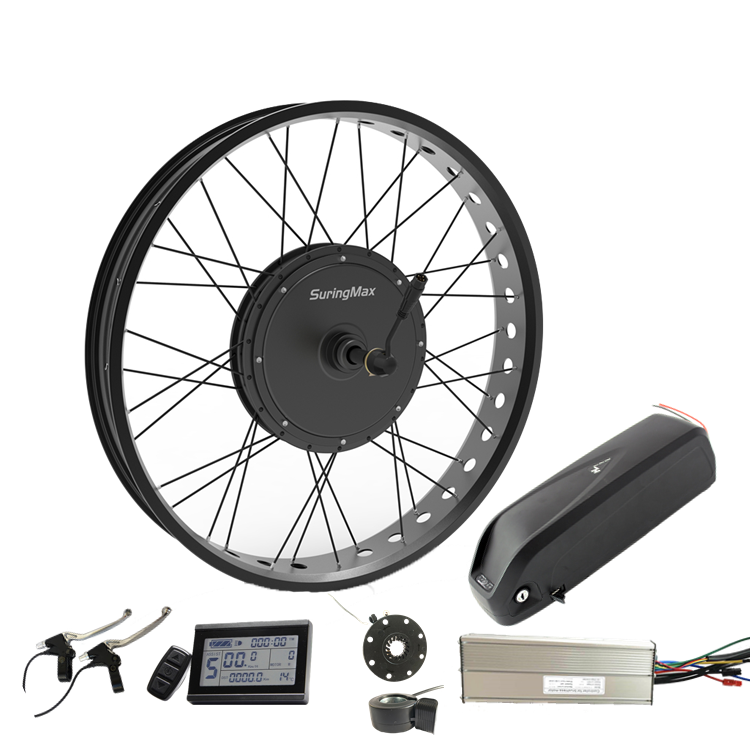

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
Specifications
Brand Name :
Suringmax
Model Number :
SRFAT500w
Certification :
ce
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$60-$322 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
30days
Packaging Details :
Good quality 5-layer corrugated paper cartons with foam for all the goods
Wattage :
500w
Voltage :
48V
Power supply :
Lithium Battery
Motor :
Brushless Fat Bike Hub Motor
Max speed :
50km/h
Wheel size :
20-29''
Brake :
V/Disc Brake
Color :
Black
Display :
LCD/LED
Charging time :
4-6 Hours
Description

China Manufactory fat bike 48v 500w electric wheel hub motor

Specification:

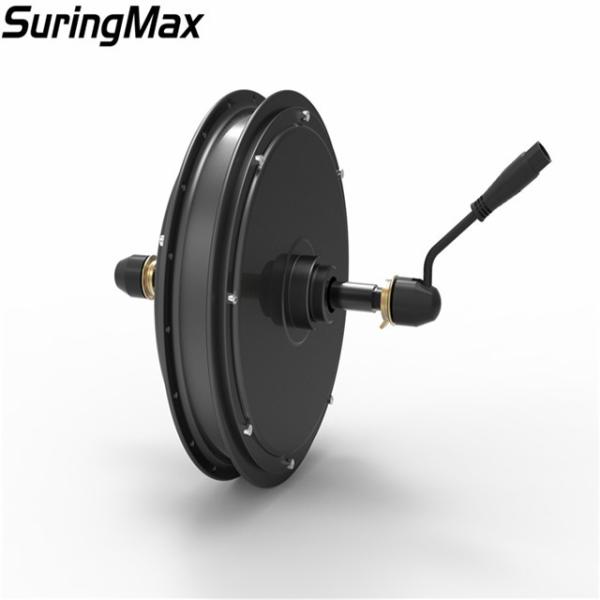

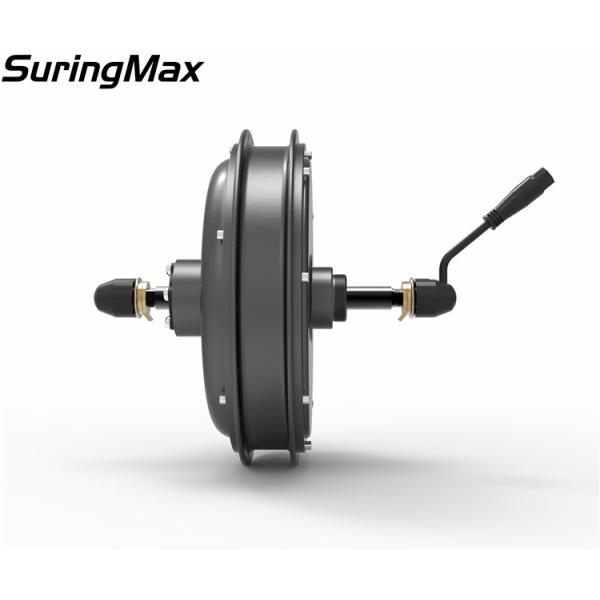

48v 500W Gearless Fatbike Motor
48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

1.Magnet: 30mm

3. MAX speed=50KM/H

5. Color: Black

7. Double hall sensor

9.Max Torque:50N.M.

2.Dropout:170mm/190mm

4.Weight:7.5kg

6.Brake:V/Disk brake

8.Rim support: 20-29''(700c)

10.Temperature sensor for option
Controller 48V22A brushless controller
Battery 48V11.6AH LG cell lithium battery
Display LED/LCD Display for option
Throttle Thumb / Twist throttle for Optional
Braking Wuxing E-brake or brake sensor for Optional
PAS 8 / 10 / 12 magnets pedal assistant system

How to determine what you want

  1. What's size of the wheel? -----------------------You can choose 20inch / 24inch / 26inch / 28inch / 700C

  2. How fast do you need? -------------------------- You can choose 30km/h---50km/h ( with load )

  3. What type of Motor cable do you need? ------------------------Normal is DJ2.8. 1If you other type, please tell us.

  4. What type of display?------------You can choose LCD8/ LCD5 / LCD3/LED 900S

  5. What type of Throttle ?---------------------Wuxing Thumb throttle or twist throttle

  6. What type of PAS? -------------------- Normal is 8 magnets, if you need other type, please let me know.

  7. What type of Ebrake?------------------Normal is wuxing ebrake 106pdd

  8. Any other ideas, We are very willing to support if Possible. Because we are Factory!

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

Reference diagram

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

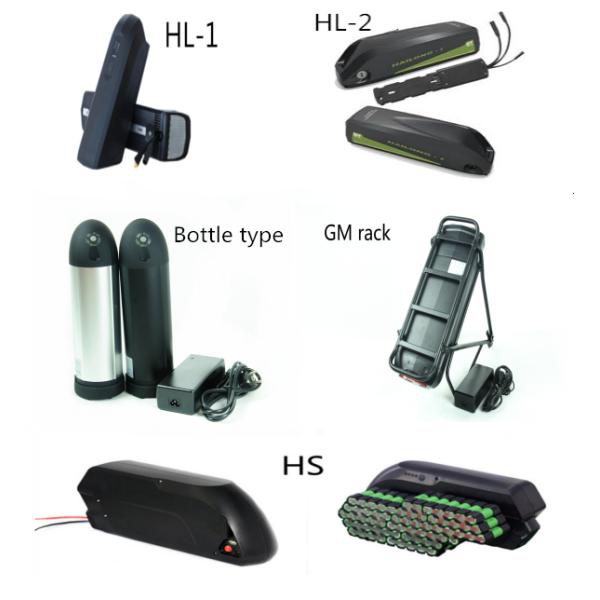

Battery--Hailong 48v 11.6Ah LG cell battery as default

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

Controller--48v 22/25A square wave controller as default

We have waterproof controller and standard controller for option

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

Display--LCD 3 display as default

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

Throttle--Thumb throttle as default

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

PAS--8 magnets as adefault

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

Brake sensor and brake lever--Brake levers as default

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

Other products

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

Packaging & Shipping

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor

48v 500w Electric Fat Bike Kit, With Lithium Battery Fat Bike Wheel Hub Motor
