Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
Specifications
Brand Name :
SURING-MAX
Model Number :
SR500DC
Certification :
CE EN15194
Place of Origin :
CHINA
MOQ :
1SETS
Price :
USD350/SET
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000SETS PER MONETH
Delivery Time :
7-30 DAYS
Packaging Details :
4 motors in 1 carton without rim assembled, 1 sets with rim assembled and controller parts in one big carton
Colour :
black
Rated Power :
500w
Efficiency :
≥80%
Net weight :
4.5kg
Dropout :
135mm
Spoke holes :
36
Structure :
Gear motor
Brake support :
Disk brake/V brake
Position :
Rear wheel
Reduction Ratio :
1:5.3
Speed :
20-32m/h
Voltage :
48v
Description

Big Power 48v500w brushless gear cassette motor ebike kit with thumb throttle

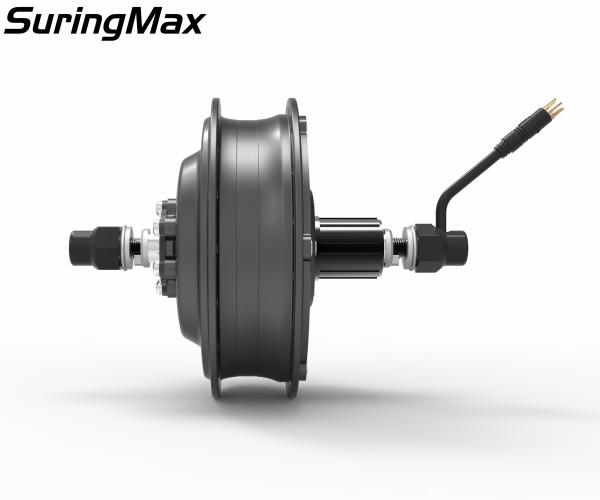

Motor specification:

This is the rear hub motor for ebike, can assemble on to all regular

bicycle to change any bicycle to ebike .

You will get speed, power when ride it, which will save your time and help you riding Farer.

The advantage:

1.Light weight

2.Fast speed

3.Easy to assemble

4.Fashion style

5.Environmental

6.Comfortable

Rated voltage/power 48V500W
Rated speed 20-32km/h
Max speed 32km/h
Dropout 135mm
Assemble Postion Rear wheel
Brake available V brake /disk brake
Suitable controller 48V22A
Suitable rim 16-29inch ,19mm
Max torque 65Nm
Available voltage

24-48V
Packing size 4 motors in one carton:42*42*24, one set in 62*62*23 carton

Drawing of the motor

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle

Necessary spare parts into the Ebike kit to make it go:

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle

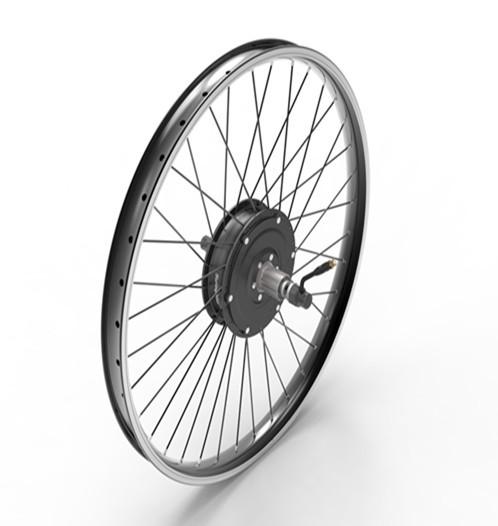

1.Motor in wheel:16-29 inch rim, double/single wall rim ,steel spokes or stainless steel spokes for choice
2.Controller:48V22A for 500w motor

3.Lithium battery:Many shape for choice, rack type or frame type ,LG ,panasonic ,Samsung cells amd so on: 48v 11.6ah HL LG cell battery as default.

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
4.Charger: 36V2A smart charge

5.Display: Economic and Classic for choice. LCD 3 display as default:

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle

LED900S LCD5 LCD3 LCD8

6.Ebrake as defalut: Standard ebrake and easy assemble brake sensor(attach on the original brake of the bike ) for choice:

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb ThrottleBrushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle

7.PAS: 3 kind for choice,single hall and double hall. 8 magnets PAS as default.

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle

8.Thumble throttle as default: Twist throttle available too,thumb throttle is more safe.

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle

We can provide both the motor and the kit, please contact with us for more details.

Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle

FAQ:

1.Can we place a small order before the batch order?
--Yes .


2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes
Cause the controller and Motor belongs to the OEM products, different customers have the different request.


3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.


4.Do you provide any OEM?
Yes, we can design motor for some special request.


5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare parts

We will send the new one for replace together with the every next order, you dont need to send the broke goods back.Brushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb ThrottleBrushless Gear Cassette Bicycle Electric Motor Kit 48v500w With Thumb Throttle
