Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Specifications
Brand Name :
SURING-MAX
Model Number :
SRFAT350W
Certification :
EN15194 ,CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD300 per piece
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-20 days
Packaging Details :
Packed in a carton with 6 motors
Part :
170mm dropout snow bike motor
Controller :
48V25A
Motor :
Brushless Hub Motor
Display :
LCD display,850C Colorful display
Wheel size :
16''-29''
Battery :
48V13AH lithium battery
Max speed :
35km/h
Product name :
48v750w brushless wheel hub gear fat snow bike motor for electric snow bikes with lithium hailong battery
Power :
750W
Brake :
Disk/V brake
Speed :
20-35KM/H
Voltage :
48V
Warranty :
2 Years
Weight :
4.5kg
Motor type :
Gear fat bike motor
Efficiency :
≥85%
Pas :
8P/D12 PAS for options
Rim :
Aluminium Alloy Double-Wall 20"-28",26' double wall
Description

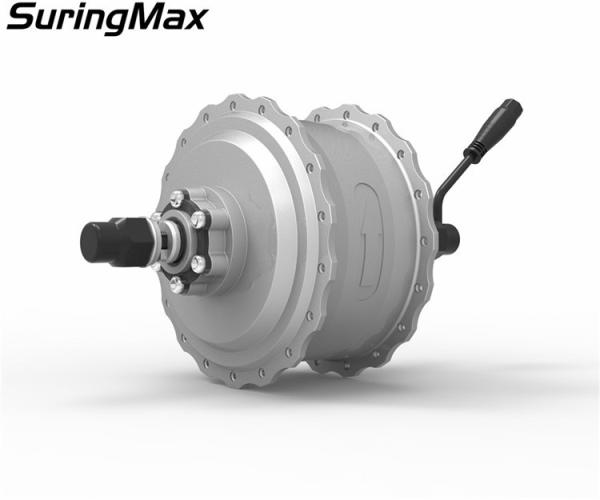

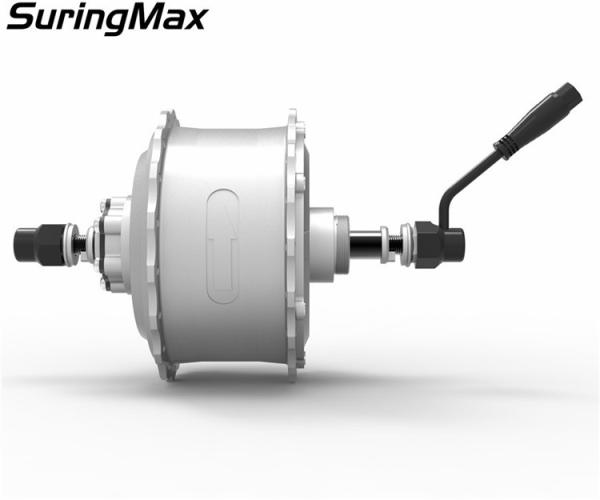

48v750w brushless wheel hub gear fat snow bike motor for electric snow bikes with lithium hailong battery
Simple Specification of this motor:

Rated voltage/power 48v750w
Rated speed 20-35km/h
Max speed 35km/h
Dropout 170mm
Assemble position Rear wheel
Brake available disk brake/V brake
Suitable controller 36v22A
Suitable rim 16''-29''
Max torque 50Nm
Avaliable voltage 24v-48v
Package4 motors in one carton:42*42*24

Necessary spare parts into the Ebike kit to make it go:

1.Motor in wheel:16-29 inch rim, double/single wall rim ,steel spokes or stainless steel spokes for choice
2.Controller:36V22A for 500w motor, waterproof connection

3.Lithium battery:Many shape for choice, rack type or frame type ,LG ,panasonic ,Samsung cells amd so on:

Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
4.Charger: 36V2A smart charge

5.Display: Economic and Classic for choice:

Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes

LED900S LCD5 LCD3 LCD8

6.Ebrake: Standard ebrake and easy assemble brake sensor(attach on the original brake of the bike ) for choice:

Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow BikesLithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes

7.PAS: 3 kind for choice,single hall and double hall

Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes

8.Thumble throttle: Twist throttle available too,thumb throttle is more safe.

Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow BikesLithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes

We can provide both the motor and the kit, please contact with us for more details.

FAQ:

1.Can we place a small order before the batch order?
--Yes .


2.Do you have stocks for a quick order?
--We only have some for the spare parts like throttle and brakes
Cause the controller and Motor belongs to the OEM products, different customers have the different request.


3.What is the estimate prepare time?
Motors: 3-15 days .
Battery /Controllers: 25-35 days.
Other spare parts: 10-20 days.


4.Do you provide any OEM?
Yes, we can design motor for some special request.


5.What is the guarantee?
3 years for motor.2 years for battery, 1 year for the other spare parts

We will send the new one for replace together with the every next order, you dont need to send the broke goods back.



Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
Lithium Hailong Battery Powered Fat Tire Electric Hub Motor For Electric Snow Bikes
