72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
Specifications
Brand Name :
Suringmax
Model Number :
SRFAT3000W
Certification :
CE
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$120 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 sets per month
Delivery Time :
30days
Packaging Details :
Good quality 5-layer corrugated paper cartons with foam for all the goods
Voltage :
72v
Wattage :
3000W
Design :
Brushless gearless
Color :
Silver / Black
Weight :
9kg
Speed :
50km/h
Wheel size :
20-29''
Efficiency :
≥80%
Brake type :
v/disc brake
Open size :
170-190mm
Description

Good design powerful hub motor 3000w fat bike motor kit 72v with warranty

Quick information for this fat bike motor

Motor 72v3000w gearless fatbike motor
Net weight 9kg
Gross weight with package 10kg
package size for single motor 40*40*30cm
Winding turns 3T,4T,5T,6T,7T
Suitable wheelsize 20-29inch for bike rim
Dropout 135mm for front,170-190mm
Max torque 50Nm
Max speed 50km/h
Stator Aluminum Structure stator

Pictures of this fat bike motor:

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Winding inside:

45mm magnets with aluminum structure and 0.35mm silicon steel sheet:

More powerful and efficiency than steel structure and 0.5mm silicon steel sheet

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Diagram of dropout 190mm fatbike motor

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

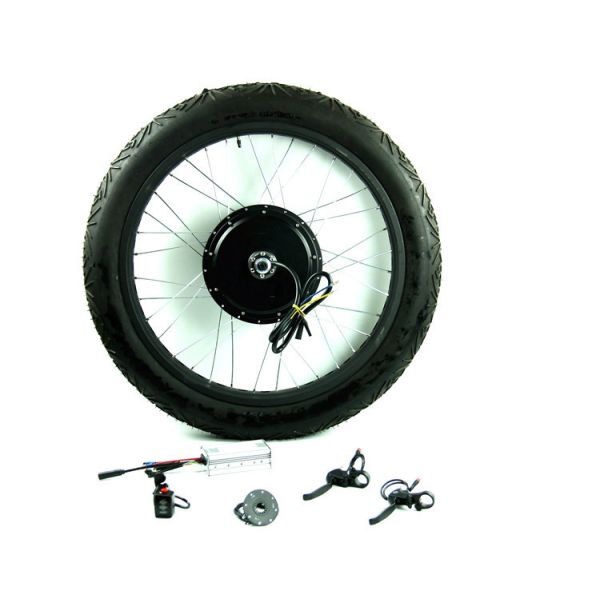

Quick information for 72v 3000w fat bike motor kit

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Suitable Rim:

Ebike rim95mm width,20-29inch

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Suitable controller:

72V 60A controller

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Suitable battery

Also have other shape for choice, and OEM size available

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Suitable display:

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

PAS:

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Throttle:

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Ebrake/Brake sensor:

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Packing&delivery:

We use the 5-layer corrugated carton and good quality foam to pack one kit in one carton.

Samples will be shipped by the fastest express way

The batch order will shipped by sea.

Motor without rim assembled packed 2 in 1 carton with quality foam protected:

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

Motor with rim assembled pack 1 in 1 carton with good protection to make make no defect.

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification

72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification72v 3000w Powerful Fat Bike Hub Motor For Electric Bike CE Certification
