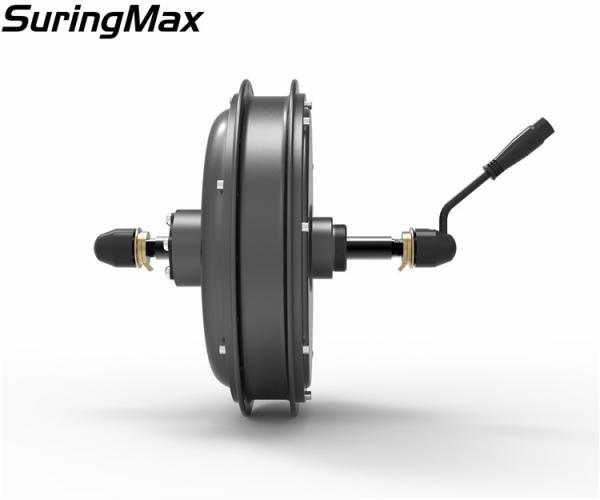

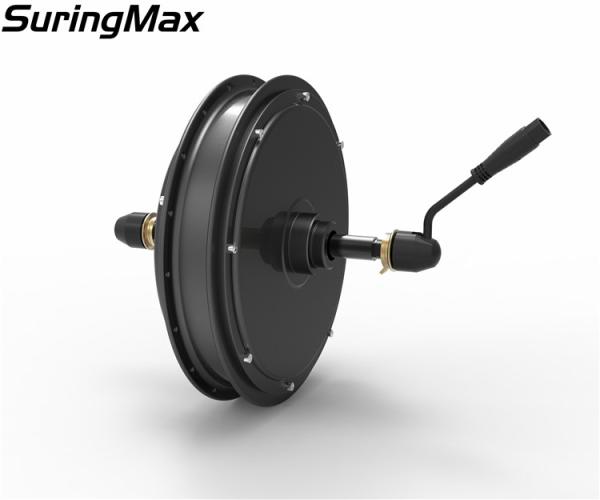

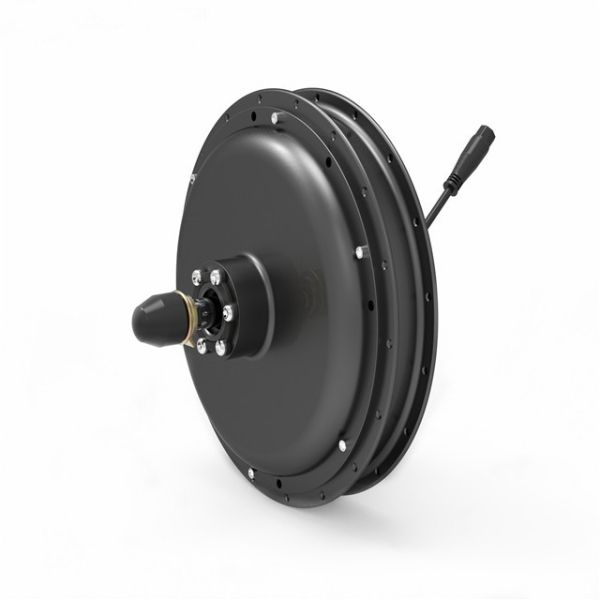

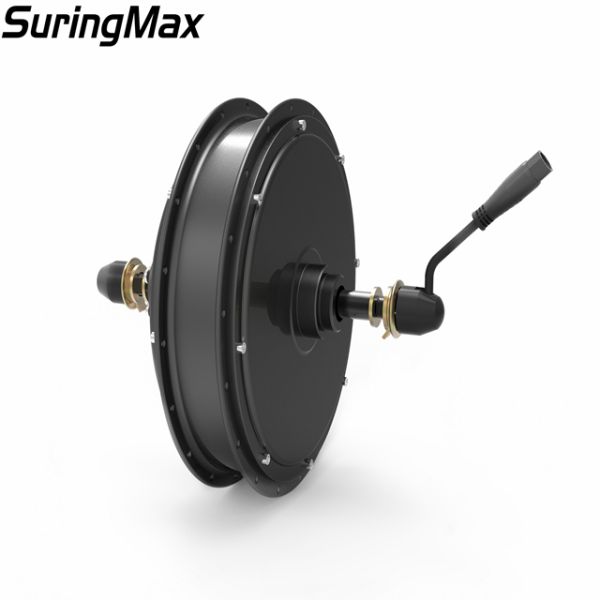

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
Specifications
Brand Name :
Suringmax
Model Number :
SRFAT-500w
Certification :
ce
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$297 PER PIECE
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 sets per month
Delivery Time :
20 working days
Packaging Details :
Good quality 5-layer corrugated paper cartons with foam for all the goods
Voltage :
48V
Power :
500w
Color :
Black
Warranty :
3 years
Max speed :
50km/h
Weight :
7.5kg
Brake :
V/Disc Brake
Display :
LCD/LED
Controller :
48V 22A Controller
Battery :
Optional Lithium Battery
Wheel size :
20-29inch
Dropout :
170mm/190mm
Max torue :
50Nm
Model :
gearless fatbike
Description

Professional 48v500w fat bike gearless hub dc motor for fat bik

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

Product description
Power 500w Voltage DC 36V-48V
Color Black Application 20-29inch fatbike
Max torque 50Nm Certification CE, RoHS
Working life ≥3years Warranty 3 years
Speed 30-50km/h Efficiency ≥80%
Dropout

170mm,190mm for rear

 MOQ 1 Piece
Controller 48v22A Brake Disk brake/V brake
Max speed 50km/h Weight 7.5kg

Advantage:

1.Aluminum stator, 0.35mm 300 silicon steel sheets.

2.More powerful,torque,efficiency

2)4.0mm square phase wire diameter, afford higher current.

3)2 set hall sensor wires Incase of the hall seosnro problem

What you should ask yourself if you want to order this motor?

1)What's the size of wheel?( 20inch----29inch,17-21inch for motorcycle rim)

2)What's the dropout of your fat bike?

3)What loaded speed do you need ?

4)Other special requirement.....

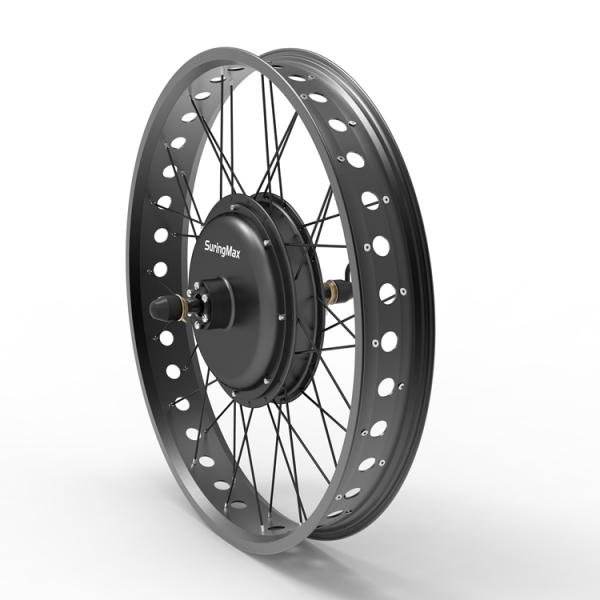

The rim and spokes asssemble on the motor for your reference(optional):

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

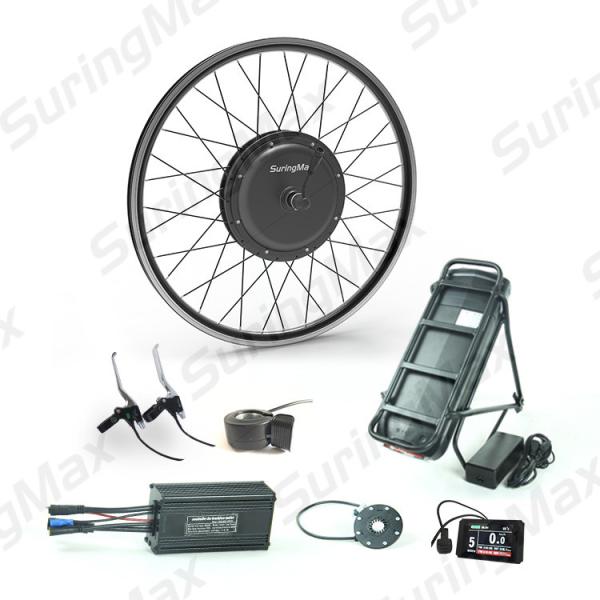

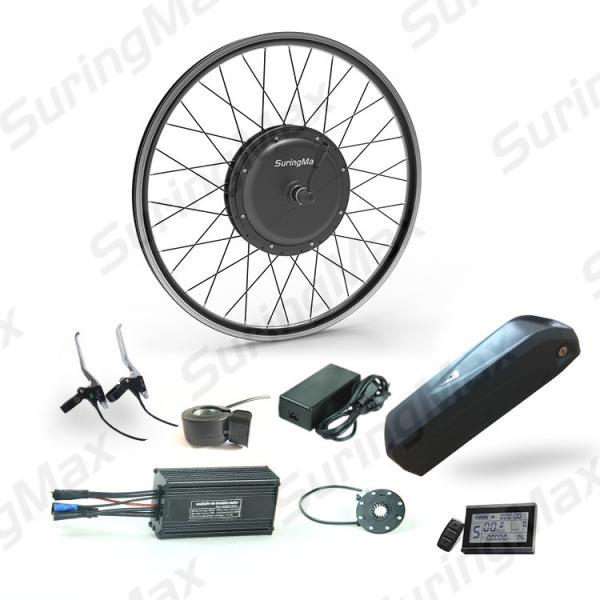

What would you need for the 500w gearless fat bike motor to form your own electric fat bike:

1.48v 22A square wave controller, can be sine wave

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

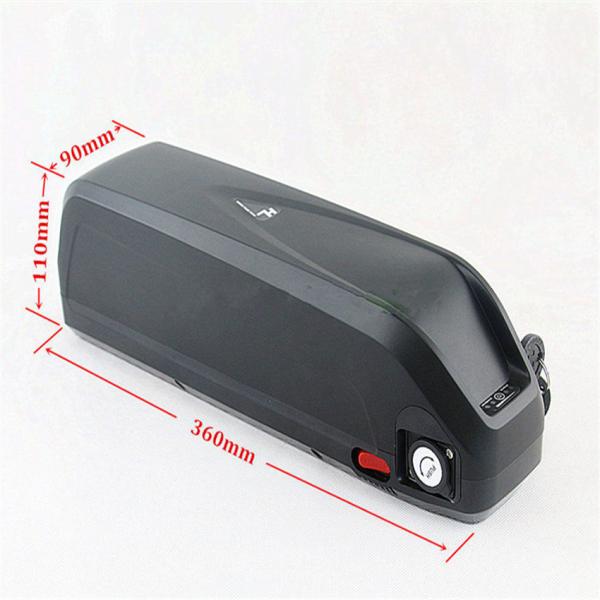

2.48v 11.6Ah LG cell lithium battery

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

3. Display---LCD3/5/8,LED900S for option

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

4. Throttle--thumb throttle/twist throttle for option

If you don't need any display, you can choose the throttle with keys and indicator

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

5.E-brake levers and brake sensor for option

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit

6. PAS 8 magnets and 12 magnets or option

500 Watt Gearless Fat Bike Hub Motor , 48v Fat Bike Electric Motor Kit
Contact us

♥ If you have any question,please feel free to contact us.
We will reply you within 12 hours.
Looking forwarding your inquiry.
