YEM082QP Accuracy 2.0 Three Phase Energy Meter With Glass Window Bakelite Base

Decriptions :

Model YEM082QP three phase four wire electromechanical front board installed active energy meter is a
kind of new style three phase four wire active energy meter, it is on the basis of original D86 three phase
electromechanical meter, and fully absorb new technologies about electromechanica l meter from domestic and abroad. The meter completely accord with relevant technical requirements of class 2 three phase active energy meter stipulated in international standard IEC 62053-11. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, it is use for setting indoor or out door meter box. The meter has novel design, rational structure, and it can display total energy consumption by drum wheel mechanical register. It has following features: high overload, power loss, long-life, specious appearance, etc.

Transport and storage :

Transport and storage of the meter must not be shaken and must accord with ZBY002-81.The meter must be stored in the original packing box and the environmental temperature is in -20℃～＋55℃ .Relative humidity shall not exceed 95%. And there isn’t any corrosive gas. The environmental temperature shall not vary violently.The meters should be in the original packing box and the boxes should be piled up no more than five on the rack . The separate meter is not suitable for storage.

Specifications :

Advantages :

1. Good Reliability and Accurate Measurement;Small Abrasion;
2. Ligth Weight;Customized size;
3. Convenient Installation;Customized Logo printed; 7,Specious Appearance; 8,Minimal Friction;

Deadline of guarantee :

Within 18 months from the date of manufacture the user complies with all of above rules. If the meter still being sealed does not conform to any technical requirements of IEC62053-11, or of any certification of Power Department or Measuring Department.

Company Profile :

• Established in 2002, Zhejiang Yomin Electric Co., LTD (before named Yueqing Yomin Electric Factory, founded in 1996) is a manufacturer and exporter specialized in the research, development and production and service of different kinds of watt-hour meters, digital meters, pointer meter, terminals and accessories etc.Located in Wenzhou City, Zhejiang Province, we are quite close to Shanghai and Ningbo port. Covering an area of 12000 square meters for manufacturing and administration, we now have over 370 employees making their great efforts for YOMIN. Most of our products are supplied by tender and widely used in domestic and overseas electricity power companies in more than 90 countries and regions.
• Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee tatal customer satisfaction. Besides, we are awarded with international certificates such as ISO9001, kEMA, CE RoHS, CB,BV etc as well as China domestic certification like CCC and CMC.

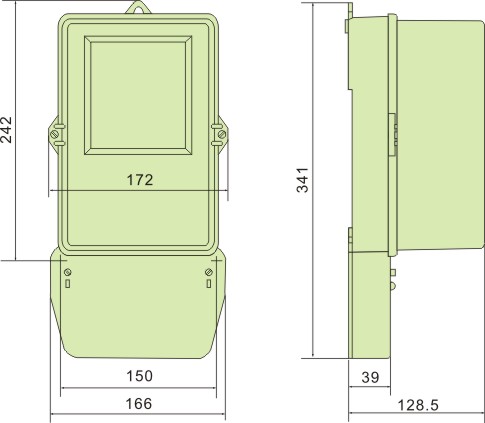

Dimensions :
