Specifications
Brand Name :
YOMIN
Model Number :
DS
Certification :
IEC60044-1,
Place of Origin :
Made in China
MOQ :
1 piece
Price :
USD 18.37-28.42 piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
176000 PCS/Month
Delivery Time :
Within one week after payment.
Packaging Details :
Standard export packing
Rated Primary Current :
5A to 3000A
Rated frequency :
50 or 60 HZ
Color :
White
Rated secondary current :
5A or 1A
Ambient temperature :
-10C~50C
Material :
PC
Model :
DS
Brand :
YOMIN
Certificate :
IEC60044-1
Use :
Measuring instrument
Country of origin :
China
Packing :
Standard export packing
Delivery date :
Within one week after payment.
Usage :
Current
Phase :
Single phase
Coil Structure :
Toroidal
Coil Number :
Autotransformer
Rated test voltage :
3kV AC. (1 min)
Description

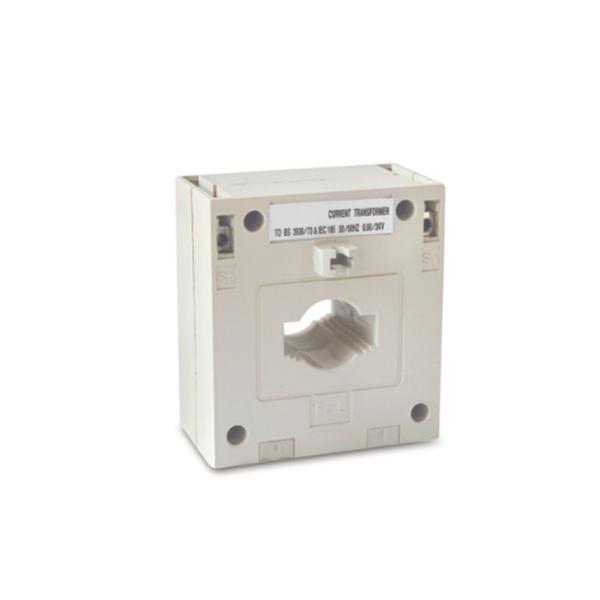

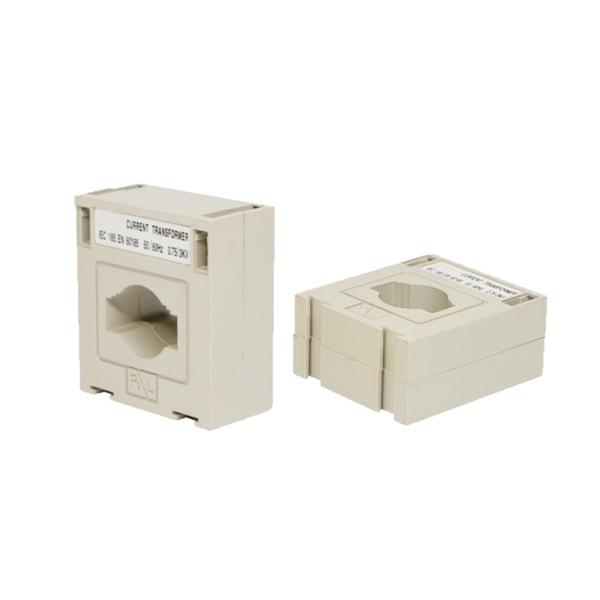

Toroidal 3000/5A Single Phase Current Transformer Class 0.5 With Electric Meter

FEATURE:

Busbar mounting

Primary current from 5A to 3000A.SPECIFICAIONS

Rated Frequency 50/60Hz

Rated test voltage 3kV AC. (1 min)

Rated short-time thermal current(Ith) 60In

Rated dynamic current, (Idyn) 2.5Ith

Rated voltage,(Um) 0.72Kv AC.

Continuous overload,(Id) 1.2In

Operating temperature -10C~50C

Housing self-extinguishing class VO

Safety factor FS 5

Secondary current 5A/1A

ITEM RATIO Class:0.2s Class:0.5 Class:1.0
DS-30 50/5A - - 2.5VA
60/5A - - 2.5VA
75/5A - - 2.5VA
100/5A 2.5VA 2.5VA 5VA
150/5A 3.75VA 5VA 7.5VA
200/5A 5VA 5VA 7.5VA
250/5A 5VA 5VA 7.5VA
300/5A 5VA 5VA 7.5VA

ITEM RATIO Class:0.2s Class:0.5 Class:1.0
DS-40 150/5A 2.5VA 2.5VA 3.75VA
200/5A 3.75VA 5VA 7.5VA
250/5A 5VA 5VA 7.5VA
300/5A 5VA 5VA 7.5VA
400/5A 5VA 10VA 12.5VA
500/5A 5VA 10VA 15VA
600/5A 5VA 10VA 15VA
800/5A 5VA 10VA 15VA

ITEM RATIO Class:0.5 Class:1.0
DS-60 400/5A 5VA 7.5VA
500/5A 7.5VA 10VA
600/5A 10VA 15VA
800/5A 10VA 15VA
1000/5A 15VA 20VA

ITEM RATIO Class:0.5 Class:1.0
DS-100 800/5A 7.5VA 10VA
1000/5A 10VA 15VA
1200/5A 10VA 15VA
1500/5A 15VA 20VA
1600/5A 15VA 20VA
2000/5A 15VA 20VA
2500/5A 15VA 20VA
3000/5A 15VA 20VA
Model

Ratio

(A)
Burden(VA)

Case

Qty.(Pcs)
Class: 0.5 Class: 1.0
DS-56/B 50/5 1.5 3.75 120
DS-56/B 60/5 1.5 3.75 120
DS-56/B 75/5 1.5 3.75 120
DS-56/B 100/5 1.5 3.75 120
DS-56/B 150/5 1.5 3.75 120
DS-56/B 200/5 1.5 3.75 120
