Specifications
Brand Name :
YOMIN
Model Number :
DM
Certification :
CE, ROHS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
1 piece
Price :
it can be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
shipped in 2-5 days after payment
Packaging Details :
carton
Phase :
Single Phase
Coil number :
One, we can make it as per customer
Coil Structure :
Toroidal
Business type :
Manufacturer
Free sample :
Yes
Product Name :
Current transformer with DM
Description

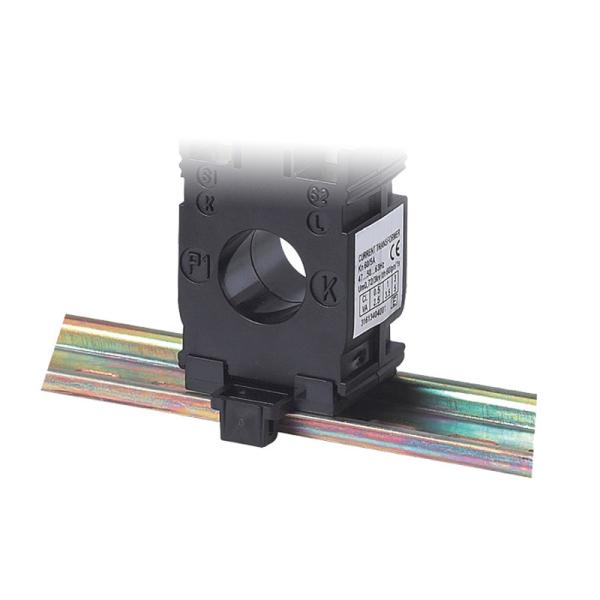

Din Rail Miniature Protection Electrical Current Transformer For Metering

Product Description:

1. The DM series of current transfomer are convenient for mounting in many ways.
2. The most current transformer need the special mounting and the DM series used the mounting of DIN typing without a lot of time.
3. The protective cover for the terminal block used the switching device with safety and quick

Technical Parameter:

Primary current: 15A-300A

Secondary current: 5A/1A

Standard approval: IEC44-1/BS7626/VDE0414

Maximum voltage: 0.72kv

Frequency: 50/60Hz

Rated load: 2.5VA/5VA/10VA/15VA

Class: 0.5/1.0

Short-time thermal current: Ith=60*Ih

Rated security coefficient Fs<5

Specifications:

Rated Frequency 50/60Hz
Rated Test Voltage 3KV AC (1min)
Rated shot-time thermal current (Ith) 60In
Rated dynamic current (Idyn) 2.5Ith
Rated voltage (Um) 0.72KV AC
Continuous overload (Id) 1.2In
Operating temperature -10째C ~ 50째C
Housing self-extingusishing class VO
Safety factor FS 5
Secondary current 5A, 1A

Technical Data:

Type Ration (A) Burden (VA) Accuracy class
DM-20 15/5 - 1.0
20/5 - 1.0
25/5 - 1.0
30/5 - 1.0
40/5 - 1.0
50/5 1 1.0
60/5 1 1.0
75/5 1.5 1.0
80/5 1.5 1.0
100/5 2.5 1.0
125/5 2.5 0.5
150/5 3 0.5
200/5 5 0.5
250/5 5 0.5

300/5

 5 0.5

Din Rail Miniature Protection Electrical Current Transformer For MeteringDin Rail Miniature Protection Electrical Current Transformer For Metering

Zhejiang Yomin Electric Co., LTD

Contact person: Nike

Tel: +86 153 5592 5721(Whatsapp)
