Power Regulator TDGC2 Analog Meter Display Alternator Voltage Regulator, Single phase AC Automatic Variac Transformer

Product description

Pressure regulator can be widely used in industry /such as chemical industry, metallurgy, instrumentation, electromechanical manufacturing, light industry, etc.scientific experiments, public equipment, household appliances, in order to achieve pressure regulation, temperature control, speed regulation, dimming and power For control purposes, it is an ideal AC voltage regulator.

Product installation and maintenance:

1. The supply voltage should meet the input voltage on the regulator nameplate;

2. The voltage regulator must be well grounded to ensure safety;

3, the use of time should always pay attention to the output current does not exceed the rated value, otherwise easy to reduce the life of the regulator, or even burned;

4. When using, rotate the hand wheel slowly and uniformly so as not to damage the brush or generate sparks;

5, should always check the regulator's use, such as the discovery of excessive brush wear, defects, should be promptly damaged for the same kind of brush, and use a number zero sandpaper pad under the brush to turn the handwheel several times to make electricity The bottom surface of the brush is polished and the contact is good before it can be used;

6, the surface of the coil and brush contact should always be kept clean, otherwise it is easy to increase the spark and burn out the surface of the coil. If a black spot is found on the surface of the coil, it can be wiped with cotton and alcohol until the surface spots are removed.

7, from the power supply to the regulator, the voltage regulator to the load of the wire and wire terminals should be in good contact and can pass the voltage regulator rated current;

8. When carrying the pressure regulator, do not use the hand wheel, and use the handle or lift the entire product.

9. When the pressure regulator needs to be mounted on a large panel or installed on another base, it can be fixed by using the mounting hole of the pressure regulator base;

10.pressure regulators often protect cleaning does not allow water droplets, oil, etc. fall into the regulator, the regulator must periodically power out of the internal accumulation of dust.

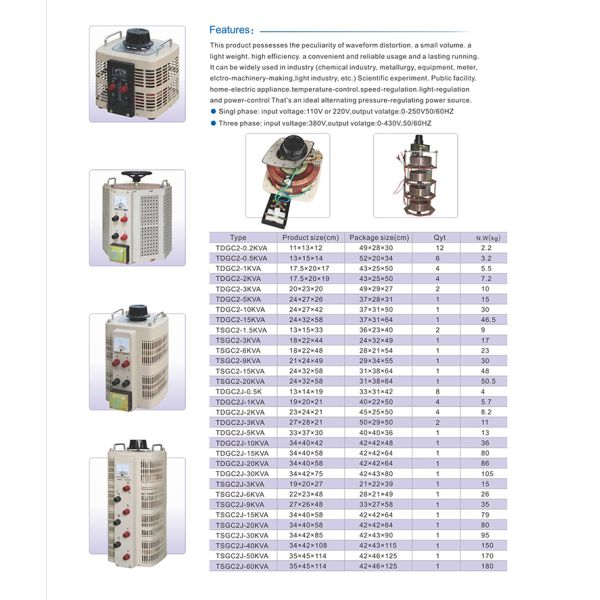

Product parameters

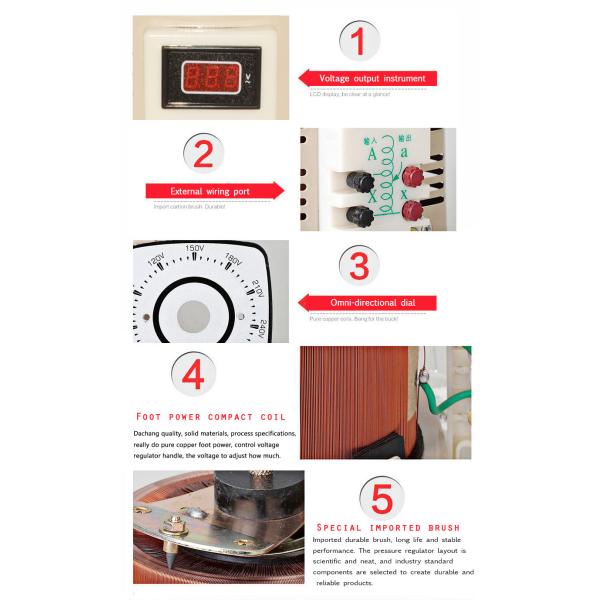

Product details

Product packaging
