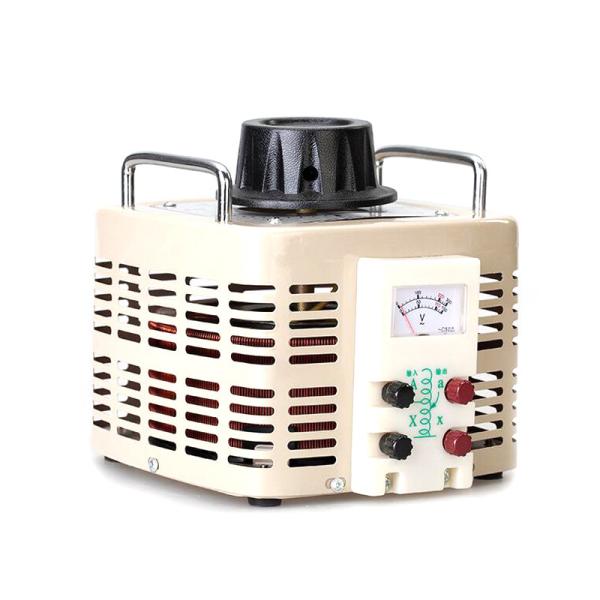

AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
Specifications
Brand Name :
YOMIN
Model Number :
TDGC2J-3K
Certification :
ROSH
Place of Origin :
Made in China
MOQ :
1 piece
Price :
USD 37.82-99.67/piece
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
190000 PCS/Month
Delivery Time :
Within one week after payment.
Packaging Details :
Within one week after payment.
Brand Name: :
YOMIN
Current Type: :
AC
Phase: :
Single phase
Product Name: :
Variac Voltage Regulator
Model Number: :
TDGC2J-3K
Protection Degree :
IP20
Place of Origin: :
China (Mainland)
Usage: :
voltage regulator
Capacity/Power: :
1500VA-60KVA
Color: :
Pale yellow
Insulation Class :
A
Packing :
Standard export packing
Voltage change rate :
±1%
Temperature rise :
≤60°C
Insulation resistance: :
≥150MΩ
Electric strength :
2000VAC/1min
Description

Manufacturer AC single phase TDGC2J-3K Analog Meter Display Voltage Regulator

Product Description

TDGC2/TSGC2 series Automatic Voltage Regulator/VARIAC is the 14th generation of power saving product of electron mechanical industry, used widely in fields like voltage regulating, temperature controlling, speed adjusting, lighting change, power control, household appliance, and lighting system,etc. TDGC2 and TSGC2 series belong to new type product.

Features

Regulator has high efficiency, low magnetic leakage, low loss, low temperature rise, low noise, low vibration, strong instantaneous overload, easy to use, reliable, can run for a long time and so on. The coil is the main component of the regulator and it has the following properties:

1. The use of high magnetic permeability oriented steel, so the loss is small.

2. Using mechanical automatic winding, even between and ,, each line is straight and parallel, so the contact surface is flat.

3. Use a heat-resistant resin material to dip paint and cure to make the pressure regulator more heat-resistant.

4. Use mechanical grinding to make the contact surface smooth like a mirror.

5. The use of a traditional multi-brush design increases the contact area of the brushes, reduces the current drawn by each carbon brush, and reduces the temperature rise.

6. Use high-performance brushes to increase electrical conductivity and eliminate fire extinguishing.

7. Use copper surface welding to reduce contact resistance and reduce temperature rise.

8. The use of heat-resistant, elastic metal materials allows long-term stability of the mechanical pressure and reduces the temperature rise of the contact.

Specification

Type

Input

Voltage (V)

Output

Voltage (V)

 Frequency

Output

current (A)

 Packing Size(cm) Weight(KG)
TDGC2-500VA 220V 0-250V 50HZ/60HZ 2 33*31.5*42 24
TDGC2-1KVA 220V 0-250V 50HZ/60HZ 4 39*22*49 27
TDGC2-2KVA 220V 0-250V 50HZ/60HZ 8 43*25*50 30
TDGC2-3KVA 220V 0-250V 50HZ/60HZ 12 49*28.5*26 29
TDGC2-5KVA 220V 0-250V 50HZ/60HZ 20 29*29*31 25
TDGC2-10KVA 220V 0-250V 50HZ/60HZ 40 44*44*39 54
TDGC2-15KVA 220V 0-250V 50HZ/60HZ 60 44*44*64 60
TDGC2-20KVA 220V 0-250V 50HZ/60HZ 80 44*44*64 80
TDGC2-30KVA 220V 0-250V 50HZ/60HZ 120 44*44*115 160


AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator

AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator

Product packaging

AC Single Phase TDGC2J-3K Analog Meter Display Voltage Regulator
