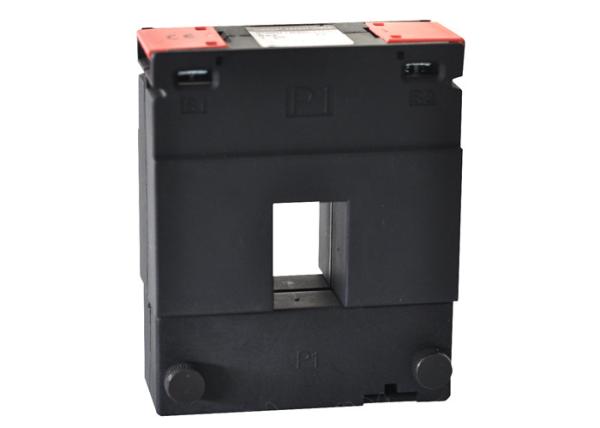

Busbar mounting Spilt-core 1000A Indoor Current Transformer For Metering
Busbar mounting Spilt-core 1000A Indoor Current Transformer For Metering
Busbar mounting Spilt-core 1000A Indoor Current Transformer For Metering
Busbar mounting Spilt-core 1000A Indoor Current Transformer For Metering
Specifications
Brand Name :
YOMIN
Model Number :
DBP-23
Certification :
CE / RoHS
Place of Origin :
Zhejiang , China ( Mainland )
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C , T/T , Western Union , Paypal
Supply Ability :
1000 Pieces Per Week
Delivery Time :
5 - 20 working days after received your payment
Packaging Details :
Export carton , 4 Pieces / Carton
Primary current :
100A-5000A
Secondary current :
5A, 1A
Phase :
Single phase
Max System Voltage :
720V AC
Frequency :
50/60Hz
Rated security coefficient :
FS<5
Standard approval :
IEC44-1, BS7626
Maximum voltage :
0.72/3kV
Description

Busbar mounting Spilt-core DBP Type 1000A Indoor Current Transformer For Metering​

Description :

The DBP series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs.

features

Two built in fixing methods:Base; Busbar mounting
Very easy to mounting.
Wide inner window, allowing clamping of big cables or bus-bars.Wide range of sizes to accommodate all the existing installations.
Primary current from 5A to 5000A.

Specifications

Primary current: 100A-5000A

Secondary current: 5A/1A

Standard approval: IEC44-1/BS7626/VDE0414/VL94

Maximum voltage: 0.72/3kv

Frequency: 50/60hz

Rated load: 1VA-30VA

Class: 0.5/1.0/3.0

Short-time thermal current: ith=100*in

Rated security coefficient Fs<5

Model

Nominal current ratio

Burden VA

Class 0.5

Class 1

DBP-23

1000

-

1.5
DBP-23

1500

-

2
DBP-23

2000

1.5

2.5
DBP-23

2500

1.5

3.75

Busbar mounting Spilt-core 1000A Indoor Current Transformer For Metering
