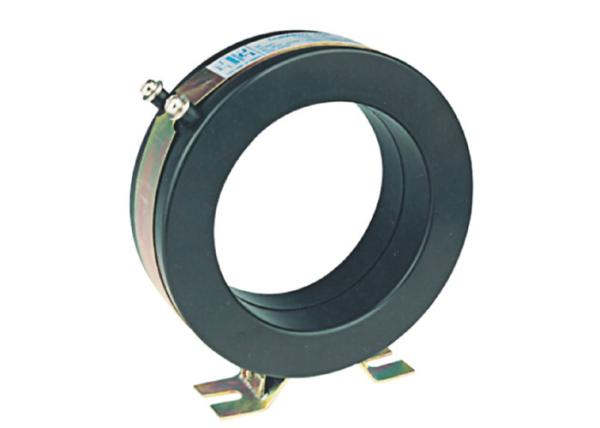

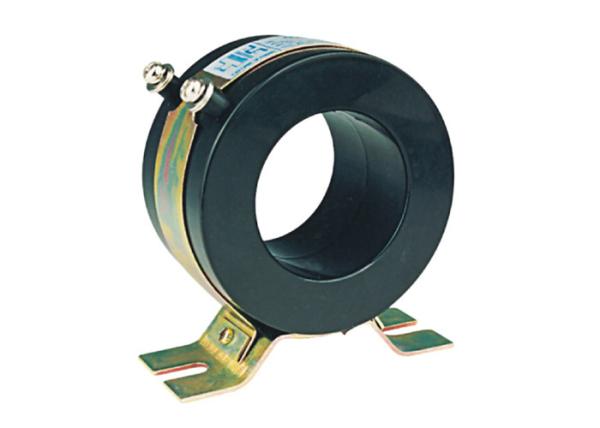

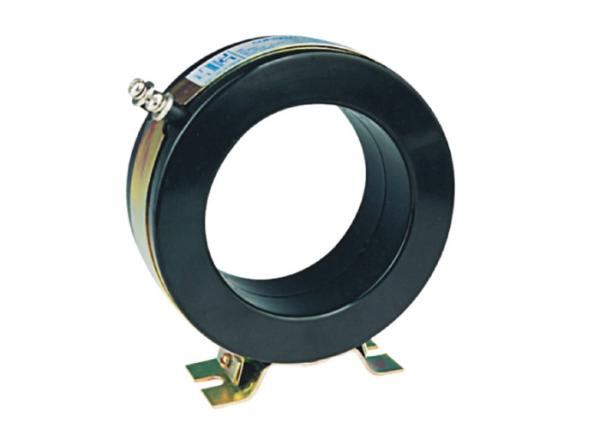

KWh Meter Low Voltage LV Current Transformers Wth PCB Mount
KWh Meter Low Voltage LV Current Transformers Wth PCB Mount
KWh Meter Low Voltage LV Current Transformers Wth PCB Mount
KWh Meter Low Voltage LV Current Transformers Wth PCB Mount
KWh Meter Low Voltage LV Current Transformers Wth PCB Mount
KWh Meter Low Voltage LV Current Transformers Wth PCB Mount
Specifications
Brand Name :
YOMIN
Model Number :
RCT series
Certification :
CE / RoHS
Place of Origin :
Zhejiang , China ( Mainland )
MOQ :
50 Piece
Price :
Negotiation
Payment Terms :
L/C , T/T , Western Union , Paypal
Supply Ability :
1000 Pieces Per Week
Delivery Time :
5 - 20 working days after received your payment
Packaging Details :
Export carton , 4 Pieces / Carton
Primary current :
100A-5000A
Secondary current :
5A, 1A
Usage :
Electronic
key world :
zero phase ct
Coil Structure :
Toroidal
Burden :
2.5VA ~ 30VA
Rated voltage :
0.66kv and below
Rated security coefficient :
Fs<5
Description

Low Voltage RCT 0.66kv and Below Zero Phase CT Wth PCB Mount Used For kWh Meter

Description :

The RCT current transformers are used in 0.66kv and below electricity system for protection and measuring purposes. The RCTs conforms the standards IEC60044-1 & GB1208-2006.

RCT Series CTs are applied to test, control, display and record the running of the eletrical equipment and to protect the equipment from damage. Mainly are put into use together with Ammeters.

Feature:

Base mounting
Low cost
Primary current from 5A to 3000A.

Specifications

1. Primary current: 5A 50 000A

2. Rated second current: 1A or 5A;

3. Rated security factor: FS < 5.

Model

Rated current(A)

Rated output(VA)

Accuracy class

Rated voltage(V)

Frequency(Hz)

RCT-35

20-5A~300/5A

1.5-5

0.5/1.0

660

50/60

RCT-58

300/5A~1000/5A

5-10

0.5/1.0

660

50/60

RCT-90

600/5A~2000/5A

5-20

0.5/1.0

660

50/60

RCT-110

1200/5A~50000/5A

10-30

0.5/1.0

660

50/60

Dimension(mm):
Model A B C D E F
RCT-35 36 78 95 84 90 53
RCT-58 58 102 93 80 113 57
RCT-90 96 92 138 85 153 45
RCT-110 112 110 165 95 180 45
