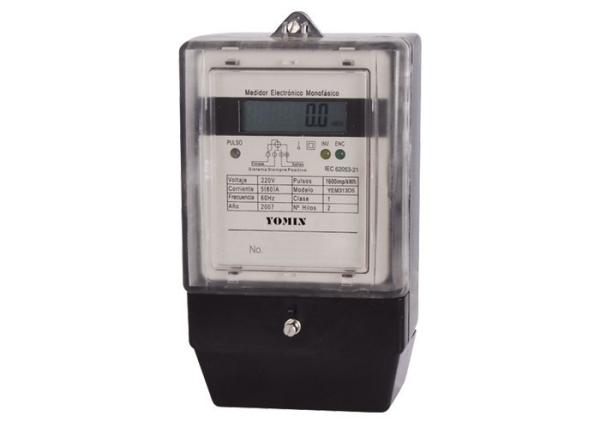

LCD Display Home Use 1P2W Electronic Energy Meter , Smart Electronic Meter

Product Description:

Model YEM313DS single phase electronic front board installed active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it is use for setting indoor or setting out door directly, and this meter has seven digits LCD displays shows the active energy consumption. And there is a maintenance-free lithium batteries in it, use for displaying power cut reading. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.

Specification

* If you need different reference voltage or current specification, please advisory our sales personnel.

Competitive Advantage

1. Seven digits display LCD, standard configuration 6+1 digits display (999999.1kWh,). May select 5+2 digits display (Please specified when ordering).

2. There is a maintenance-free lithium batteries in it, use for displaying power cut reading.

3. Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.

4. Automatic detection the direction of the flow of load current. And Instructions on individual LED. (Only yellow energy impulse signal when working, that is meaning the direction of the flow of load current reverse).

5. Standard configuration extension terminals cover, in order to protect to use safety, may select short terminals cover. (Product Configuration code is DR).

Overview About Our Factory

Yomin Eletric, is located in Wenzhou Liushu, which is one of the bases for low-voltage electrical equipment of China. We are a manufacturer specializing in producing all kinds of energy meters, such as din rail energy meter, prepaid energy meter, electromerchanical energy meter, multifunction energy meter and so on.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we are awarded with international certificates such as ISO9001, ISO14001, CE and RoHS and so on.

Beyond existing achievements, we are still working for higher goal in this line. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to building successful business relationships with new clients around the world in the near future!
