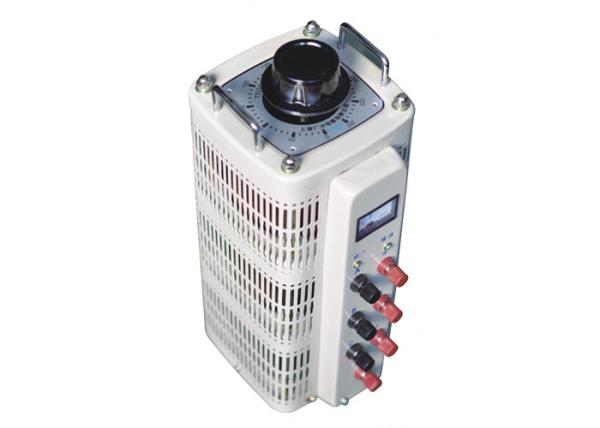

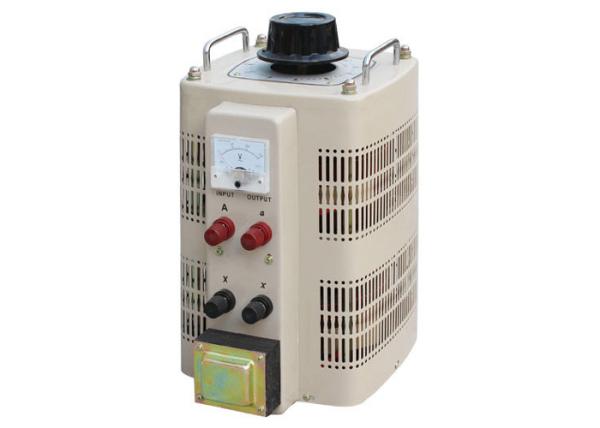

TSGC2 - 30 Three Phase Voltage Regulator
TSGC2 - 30 Three Phase Voltage Regulator
TSGC2 - 30 Three Phase Voltage Regulator
TSGC2 - 30 Three Phase Voltage Regulator
Specifications
Brand Name :
YOMIN
Model Number :
TSGC2 - 30
Certification :
CE / RoHS
Place of Origin :
Zhejiang , China ( Mainland )
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C , T/T , Western Union , Paypal
Supply Ability :
1000 Pieces Per Week
Delivery Time :
5 - 20 working days after received your payment
Packaging Details :
Wooden packing , 1 Piece / Carton
Voltage Setting :
Manual Control
Standards :
VDE0550 , IEC204-1 , IEC61588 , EC439
Quality Assurance :
18Months
Item Condition :
Brand - New
Dimension :
34 * 42 * 58
Color :
White
Description

TSGC2 - 30 Three Phase Voltage Regulator , Variac For Generator 40A Output 30000VA Regulator /

Description :

TDGC2 TSGC2 TDGC2J TSGC2J Voltage Regulator is designed and developed with the international advanced compens-ation technology. It can keep the output voltage steady automatically when the network voltage fluctuated or the load current varied, which can ensure the consumer runs moothly. It has the advantage of large capacity, high efficiency, no wave form distortion, simple operation and maintenance, reliable running, full-capacity output under tower input voltage if compared with other voltage stabilizer. the product is provided with over-voltage, over-current, phase sequence and so on protection function.

Usage :
TDGC2 TSGC2 TDGC2J TSGC2J Voltage Regulator is suitable for electric supply in small-sized plant, workshop and department in middle, large size mining enterprise, it can be widely used in the precision machine tool, precision instrument, test device, elevator, imported electromechanical device, production flow lime in the mining enterprise, oil field, railw-ay, building site, school, hospital, hotel, scientific research department and so on, it is also suitable for the user in the LV electric network and with low power voltage and big wave range.


Technical parameters :

  • Capacity.....................................................30,000VA
  • Output Current..........................................40A
  • Output........................................................0~430VAC
  • Frequency.................................................50/60Hz
  • Input...........................................................380VAC
  • Insulation Resistance................................>2MΩ
  • No. of Phase.............................................Three-Phase
  • Winding Material.......................................100% Copper
  • Max.Temperature.......................................60℃
  • Insulation Class.........................................Class B (130℃)
  • IP/NEMA Rating.........................................IP20
  • Variable Operation.....................................Manually Operated Rotary Knob
  • Portable Carrying Grip...............................Provided
  • Pollution Rating.........................................Class III
  • Analog Voltmeter Display...........................Provided
  • Housing Material.......................................Shock-Proof Metal
  • Voltage Setting..........................................Manual Control
  • Standards..................................................VDE0550,IEC204-1,IEC61588,EC439
  • Sample Service.........................................Pay to Provide
  • Quality Assurance....................................18Months
  • Item Condition...........................................Brand-New

ItemCapacityInput VoltageOutput VoltageOutput CurrentCase Qty.
Model(kVA)(V)(V)(A)(Pcs.)
TSGC2-1.51.53800~43022
TSGC2-333800~43041
TSGC2-663800~43081
TSGC2-993800~430121
TSGC2-10103800~430121
TSGC2-15153800~430201
TSGC2-20203800~430271
TSGC2-30303800~430401
TSGC2-40403800~430531
TSGC2-60603800~430801
