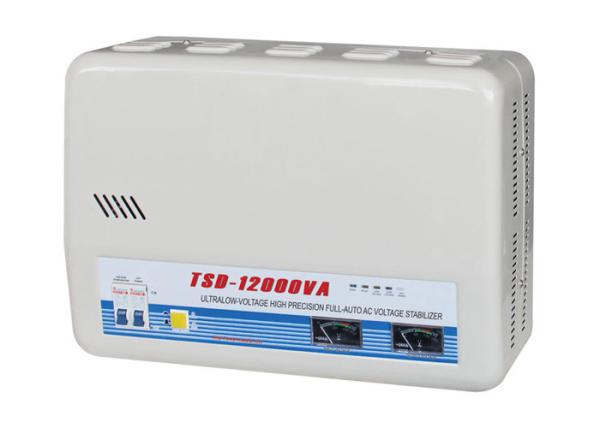

12000VA Full Home Servo AC Stabilizer , Automatic Voltage Stabilizer Hanging Type
12000VA Full Home Servo AC Stabilizer , Automatic Voltage Stabilizer Hanging Type
Specifications
Brand Name :
YOMIN
Model Number :
TSD - 12
Certification :
CE / RoHS
Place of Origin :
Zhejiang , China ( Mainland )
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C , T/T , Western Union , Paypal
Supply Ability :
1000 Pieces Per Week
Delivery Time :
5 - 20 working days after received your payment
Packaging Details :
Export carton , 1 Pieces / Carton
Ambient temperature :
- 10℃ ~ + 40℃
Input voltage :
AC 50V ~ 130V or 120V ~ 250V
Insulation resistance :
≥ 2MΩ
Wave form distortion :
No wave form distortion
Relative humidity :
< 90°C
Control type :
Servo motor
Description

12000VA Full Home Servo AC Stabilizer , Automatic Voltage Stabilizer Hanging Type

Description :

TSD series Ultra-low voltage high precision automatic AC voltage regulator is key series of our products. It is made of contact type self-couping voltage regulator, servo motor,automatic control circuit and so on. When the voltage of the network is not steady or the load varies, voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state.

  1. Input voltage:AC 50V~130V or 160V~250V
  2. Output voltage:AC 220V/110V +-2%
  3. With over current protector
  4. With output voltage indication
  5. with 110V/220V input voltage selector switch
  6. 7500W ~20000W input 160V~250V,Output 220V+-2%

Scope of application :

Computer Test equipment . Lighting equipment . Alarm and security system , X - ray equipment , Medical equipment , duplicator , Broadcasting equipment , Nimeric control machine tool industrial robot Photographic

pricessing equipment Laboratory instrument Hi - F Hi - Fi equipment .

Technical parameters :

Item Code

Capacity (KVA)

Size (L*W*H, CM)

QTY.

TSD-3 K

3

42*30.5*39

2

TSD-6 K

6

46.5*35.5*46

2

TSD-8 K

8

46.5*35.5*46

2

TSD-10 K

10

50*38.5*25

1

TSD-12 K

12

50*38.5*25

1

Specification :

Item Name

Automatic Voltage Stabilizer

Item Code

TSD-12

Phase

Single phase

Capacity

12KVA

Input voltage:

AC 50V ~ 130V or 120V ~ 250V

Output voltage:

220V ± 8% or 110V ± 8%

Frequency:

50 / 60Hz

Efficiency:

Not less than 90%

Adjust time:

Not more than 1 S

Ambient temperature:

-10℃~+40℃

Insulation resistance:

Normally more than 5MΩ

Relative humidity:

Less than 90%

Waveform distortion:

No additional waveform distortion

Control type:

Servo motor

How about the Delivery Terms?

By sea or by air or by road , FOB , CFR , CIF , etc. any is acceptable to us.

Ningbo ( Seaport ) is the nearest port to us , so if the goods are to be sent by sea , generally , we choose Ningbo as the port of loading . However , any port in China is acceptable to us . Besides , some items can be sent by international express , such as DHL , TNT , UPS , EMS , Fedex , etc .
