Specifications
Place of Origin :
Shanghai, China
Brand Name :
Fineco
Model Number :
EM4370
MOQ :
100 units
Price :
$29.00/units 100-999 units
Display Type :
Digital Only
Phase :
Three Phase
Measuring Energy Range :
999999.99
Accuracy Class :
Class.1
Output Voltage :
3*230/400V
Operating Temperature :
-25 to +75
Dimensions :
90*104.5*60
Certificate :
CE
OEM :
yes
Communication port :
RS485
Output :
S0
Communication protocol :
Modbus RTU
modular number :
modular number
voltage :
Customized voltage for 3 phase smart kwh meter price
Type :
DC connected 3 phase smart kwh meter price
Description

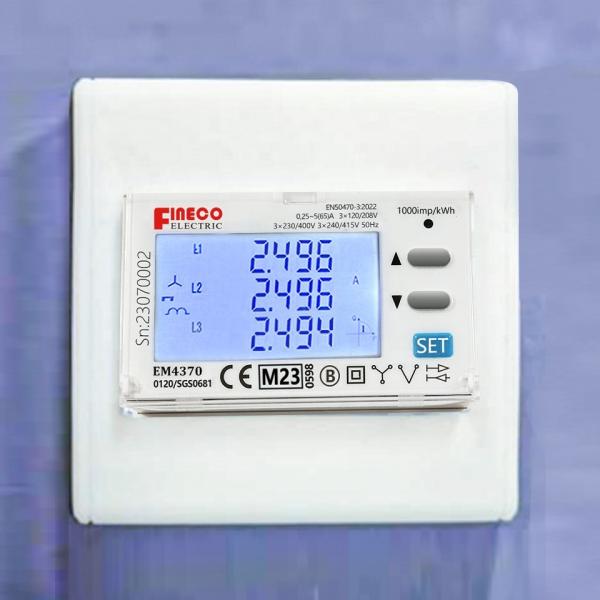

MID approved EM4370 series 3 phase bypass electric meter
The EM4370 is widely used in application scenarios such as building renovation projects, solar inverters, and electric vehicle charging piles to facilitate on-site construction. The meter is a standard four-module 72mm width, which can be used for single-phase two-wire/three-phase three-wire/three-phase four-wire power grids.

The instrument accurately measures the forward and reverse electric energy and grid voltage, current, active power, reactive power, apparent power, power factor and other grid parameters and voltage phase sequence indications. The meter can also be used in a dual-power system to measure grid and generator charges; The instrument's RS485 communication port allows remote system connection to provide all parameters in real time.
EM4370 Certified according to MID Directive, Module B and Module D of Annex II, for legal metrology relevant to active electrical energy meters.
Series Models:
Type
Nominal voltages
Function
EM4370
3×120/208V~3×240/415V
2×S0+1×DO+1×RS485+Tariff input
EM4371
3×120/208V~3×240/415V
2×S0+1×RS485+Tariff input
