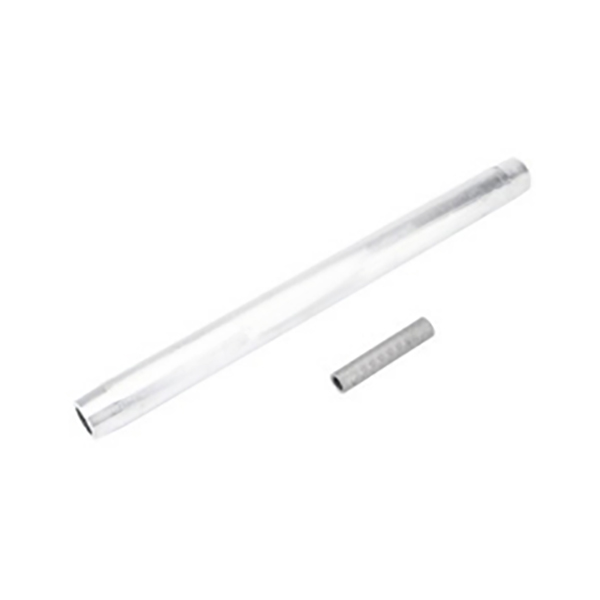

Full Tension Overhead Line Fittings JY Series Aluminum Splicing Sleeve
Full Tension Overhead Line Fittings JY Series Aluminum Splicing Sleeve
Full Tension Overhead Line Fittings JY Series Aluminum Splicing Sleeve
Full Tension Overhead Line Fittings JY Series Aluminum Splicing Sleeve
Specifications
Brand Name :
LJ
Model Number :
JYD-150/35
Certification :
Non
Place of Origin :
Luohe China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000/per month
Delivery Time :
20
Packaging Details :
Wooden Case Package
Name :
Overhead Line Fittings
Material :
aluminum
Application :
connecting the conductors
Customized :
Yes
Sample :
Immediately
Color :
Silver
Description

JY Series Aluminum Splicing Sleeve With Different Slip Strengths For Overhead Line Fittings

Overhead Line Fittings

1. The splicing sleeve is used for the connection of the transmission line conductor and the connection under the full tension of the wire, the matching insulation cover is used for the connection of the overhead insulated wire in the overhead power line.

2. The product is suitable for steel core aluminum stranded wire, steel stranded wire, aluminum stranded wire, aluminum alloy stranded wire, aluminum alloy cored aluminum stranded wire, heat-resistant steel core Connection tubes for aluminum alloy stranded wire, aluminum clad steel core aluminum alloy stranded wire, aluminum clad steel stranded wire, etc.and overhead insulated steel core aluminum stranded wire.

3. The outer sleeve is aluminium, the inner sleeve is hot-dip galvanized steel.



Technical data sheet

Catalog No.


Suitable Steel Wire

(mm)Dimensions≥(kN)Slip Strength(kg) Weight
DdLL1Φ1Φ2
JYD-150/35LGJ-150/35362238010025.518.561.80.64
JYD-185/25LGJ-185/2538204009027.011.256.50.83
JYD-185/30LGJ-185/3032203728221.012.061.00.62
JYD-185/45LGJ-185/45402443011028.014.076.20.82
JYD-300/15LGJ-300/1540184707024.58.465.00.89
JYD-300/20LGJ-300/2040184906025.09.872.00.91
JYD-400/20LGJ-400/2045185508028.59.884.01.24
JYD-300/25LGJ-300/2540204809025.511.279.00.95
JYD-400/25LGJ-400/2545205509028.511.291.01.30
JYD-240/30LGJ-240/30362046010023.012.072.00.87
JYD-400/35LGJ-400/35452254010028.513.099.01.79
JYD-500/35LGJ-500/35522262010031.513.0114.02.82
JYD-240/40LGJ-240/40362044010023.013.379.00.97
JYD-300/40LGJ-300/40402049010025.513.388.01.30
JYD-500/45LGJ-500/45522461011031.514.0122.02.88
JYD-630/45LGJ-630/45602469011034.514.0141.03.80
JYD-300/50LGJ-300/50402249012026.015.098.01.21
JYD-400/50LGJ-400/50452457012029.515.4117.01.87
JYD-720/50ACSR-720/50602471512038.515.4162.04.00
JYD-240/55LGJ-240/55362247012024.016.097.01.10
JYD-630/55LGJ-630/55602668012036.016.0156.03.63
JYD-800/55LGJ-800/55652678012040.016.0182.04.65
JYD-300/60LGJ-300/60422452513027.016.5114.72.60
JYD-400/65LGJ-400/65482656013029.517.2129.02.28
JYD-500/65LGJ-500/65522664013032.517.2146.02.93
JYD-300/70LGJ-300/70422452013027.018.0122.01.48
JYD-800/70LGJ-800/70652676013040.518.0197.04.50


Advantage:

1, LJ Brand Since 1985, a professional power fittings solution brand
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries

Full Tension Overhead Line Fittings JY Series Aluminum Splicing Sleeve,
About us

POWERCHINA Henan Electric Power Equipment Co., Ltd. is a subsidiary company of Power Construction Cooperation of China (POWERCHINA), one of the FORTUNE GLOBAL 500.

Professional customer service, product development, technical Support and after Sale Service.

POWERCHINA Henan Electric Power Equipment Co., Ltd, covering an area of 84000 square meters, was established in 1958.

POWERCHINA Henan Electric Power Equipment Co., Ltd has a total of more than 426 employees, including more than 128. engineers and technicians.
