Hc Light Small Stainless Steel Wire Rope Hoist With Remote Control
Hc Light Small Stainless Steel Wire Rope Hoist With Remote Control
Specifications
Brand Name :
JCYC
Model Number :
HC-A & HC-B
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD negotiable per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood case
Name :
Hc Light Small Stainless Steel Wire Rope Hoist With Remote Control
Color :
Customized
Capcity :
0.25t-50t
Lifting height :
3m-24m
Voltage :
220v-440v,50HZ/60HZ
Usage :
Lifting goods
Description

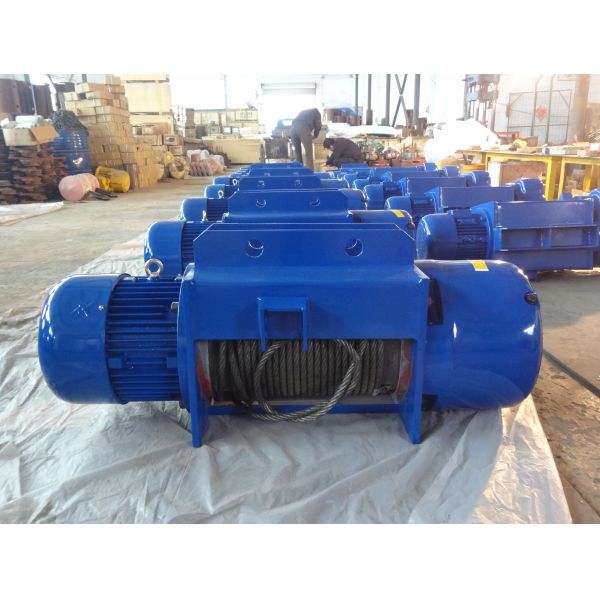

Hc Light Small Stainless Steel Wire Rope Hoist With Remote Control

Product Description:

Electric hoist is the most popular hoist for single girder overhead cane, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. The new type hc light small wireless remote control electric hoist can also work by fixing to a section of I-beam. It is a light duty designed.

Hc Light Small Stainless Steel Wire Rope Hoist With Remote Control

Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
HC-A0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ, 3 Phase 0.06 1400 220-440V 50/60HZ, 3 Phase
HC-A0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
HC-A1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
HC-A2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
HC-A3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
HC-A5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
HC-A10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
HC-A16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
HC-A20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380
Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Wire Rope Type Dia. Of Wire Rope I Beam Track Type Working Duty Lifting Motor Running Motor
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
HC-B16 16 9-48 3.5(3.5/0.35) 20 6*19 17.5 50a-63c M3 13(13/1.5) 920(1400) 220-440V 50/60HZ, 3 Phase 0.8*2 1380 220-440V 50/60HZ, 3 Phase
HC-B20 20 9-24 3.5/0.3(4/0.4) 20 6*37+1 20 50a-63c M6 18.5(18.5/3) 920(1400) 0.8*4 1380
HC-B25 25 9-24 2.4/0.24(3/0.3) 20 6*37+1 20 50a-63c M6 18.5(18.5/3) 920(1400) 0.8*4 1380
HC-B32 32 9-24 2.4/0.24(3/0.3) 20 6*37+1 26 50a-63c M3 18.5(18.5/3) 920 1.5*4 1380
HC-B50 50 9-24 2.4/0.24 20 6*37+1 26 50a-63c M3 18.5(18.5/3) 920 1.5*4 1380
HC-B80 80 9-24 2.4/0.24 20 6*37+1 26 50a-63c M3 18.5(18.5/3) 920 1.5*4 1380

Safety Features:

Safety is the most important issue for new type hc light small wireless remote control electric hoist. To ensure the safety, we equip the following safety devices:

1. eight overload protection device

2. Lifting height limit device
3. Voltage lower protection function
4. Phase sequence protection function
5. Emergency stop function
6. Rain cover for outside hoist, driving units, electrical cubicle
7. Warming indicator, flashing lights and warming sound
8. Wireless infra-detector for anti-collusion
