M5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist For Material Handling
M5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist For Material Handling
Specifications
Brand Name :
JCYC
Model Number :
SHSL
Certification :
CE & ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 sets per month
Delivery Time :
Around 12 workdays if no store
Packaging Details :
Standard Export Package
Product :
Double Beam Electric Wire Rope Hoist
Feature :
Heavy Duty
Function :
Meterial Handle
Max. Height :
18m
FEM :
1AM, 2M
Speed :
5/0.8m/min, 4/0.6m/min, 3.3/0.8m/min, 0-3m/min, 0-4m/min
Description

M5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist For Material Handling

Product Description:
M5 Level 6m to 18m Lifting Height 50t Heavy Load Double Girder Electric Wire Rope Hoist for Material Handling

Porduct Usage:
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Technical Parameters:

Capacity(t) Lifting Height(m) Lifting Speed(m/min) Lifting Motor(kw) Travelling Speed(m/min) Travelling Motor(kw) Lifting System(FEM/ISO) Travelling System(FEM/ISO) Trolley Rail Gauge(mm)
3.2 6/9/12/15/18 5/0.8 3.2/0.42 5/20 0.25*2 2M M5 2M M5 1000-1700
5 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37*2 2M M5 2M M5 1000-1700
6.3 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37*2 2M M5 2M M5 1000-1700
8 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.37*2 2M M5 2M M5 1000-2000
10 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.37*2 2M M5 2M M5 1000-2000
12.5 6/9/12/15/18 5/0.8 12.5/2 5/20 0.55*2 1AM M4 2M M5 1000-2000
16 6/9/12/15/18 4/0.6 16/2.6 5/20 0.55*2 2M M5 2M M5 1400-2400
20 6/9/12/15/18 4/0.6 16/2.6 5/20 0.55*2 1AM M4 2M M5 1400-2400
25 6/9/12/15/18 3.3/0.8 20/5 5/20 0.75*2 3M M6 2M M5 1700-3100
32 6/9/12/15/18 3.3/0.8 20/5 5/20 1.1*2 2M M5 2M M5 1700-3100
40 6/9/12/15/18 0-4 38 5/20 1.5*2 1AM M4 2M M5 1700-3100
50 6/9/12/15/18 0-3 38 5/20 1.5*2 2M M5 2M M5 1700-3100
50 6/9/12/15/18 0-3 38 5/20 1.5*2 2M M5 2M M5 2000-4200

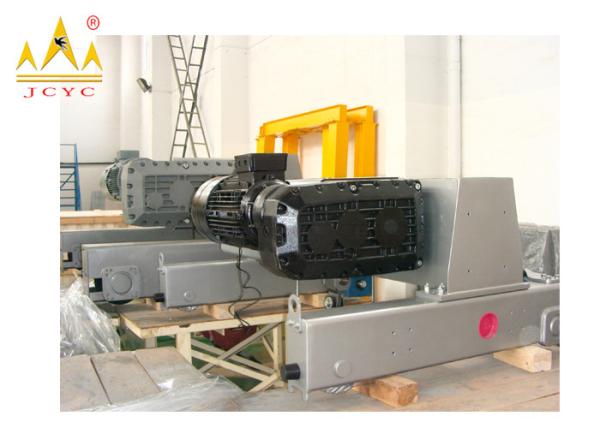

Photo:
M5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist For Material HandlingM5 Level 50t Heavy Load Double Girder Electric Wire Rope Hoist For Material Handling

Warm Tips:

Warm tips Before Make A Order We need your confirmation about below informations:

1. Trade term, for example, EXW, FOB or CIF?
2. Quantity
3. Loading capacity
4. Lifting height
5. Working voltage
6. Working environment
7. Safety voltage
8. Working duty
9. Customization is acceptable

10. OEM, ODM, sample, trial and mixed orders are all ok.
