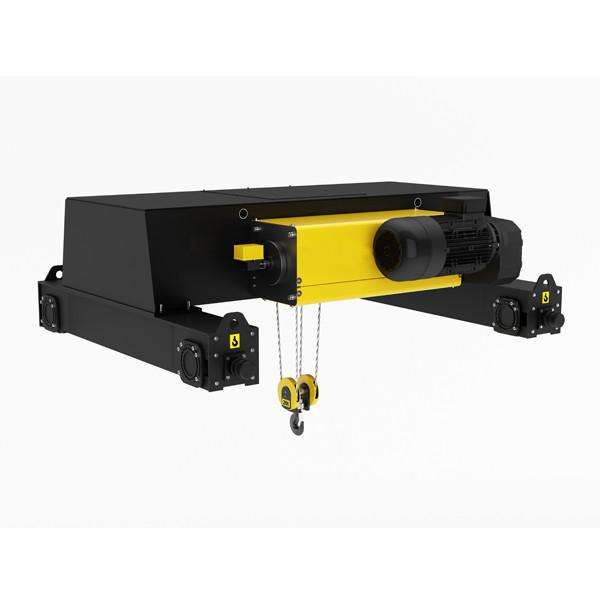

50t Double Girder Overhead Electric Hoist Lifting Machine Crane Top Running
50t Double Girder Overhead Electric Hoist Lifting Machine Crane Top Running
Specifications
Brand Name :
JCYC
Model Number :
SHSL-B
Certification :
CE & ISO
Place of Origin :
Chongqing China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per month
Delivery Time :
15 to 20 working days
Packaging Details :
standard export cases
Product name :
50t Double Girder Overhead Crane Electric Wire Rope Hoist
Type :
Double girder
Capacity :
3.2t ~ 50t
Lifting height :
6/9/12/15/18 meters or as request
Traveling speed :
5/20 m/min
Working class :
M4/M5/M6
Description

50t Double Girder Overhead Electric Hoist Lifting Machine Crane Top Running

Technique Parameters

Capacity tonLifting height mLifting speed m/minLifting motor kwTraveling speed m/minTraveling motor kwLifting System FEM/ISOTraveling System
FEM/ISO		Trolley Rail Gauge mm
3.2t6/9/12/15/185/0.83.2/0.425/200.25x22MM52MM51000-1700
5t6/9/12/15/185/0.86.1/15/200.37x22MM52MM51000-1700
6.3t6/9/12/15/185/0.86.1/15/200.37x22MM52MM51000-1700
8t6/9/12/15/185/0.89.5/1.55/200.37x22MM52MM51000-2000
10t6/9/12/15/185/0.89.5/1.55/200.37x22MM52MM51000-2000
12.5t6/9/12/15/185/0.812.5/25/200.55x21AMM42MM51000-2000
16t6/9/12/15/184/0.616/2.65/200.55x22MM52MM51400-2400
20t6/9/12/15/184/0.616/2.65/200.55x21AmM42MM51400-2400
25t6/9/12/15/183.3/0.820/55/200.75x23MM62MM51700-3100
32t6/9/12/15/183.3/0.820/55/201.1x22MM52MM51700-3100
40t6/9/12/15/180-4385/201.5x21AmM42MM51700-3100
50t6/9/12/15/180-3385/201.5x22MM52MM51700-3100
50t6/9/12/15/180-3385/201.5x22MM52MM52000-4200


50t Double Girder Overhead Electric Hoist Lifting Machine Crane Top Running

Application
  • Factory,workshop,warehouse,store;
  • Logistic,dock,port , freight yard ;
  • Construction building,mine,etc.


Feature Description
>>Safe working load 0.5t - 80t
>>DIN/FEM/ISO standard, lightweight construction
>>Silent operation
>>Lower hoist frame, building cost saving
>>Modern design of motor, fan, gear, drum, brake combined with construction of the hoist
>>Optimum cooling, cooling improved up 30%, resist 170°C as standard
>>Ambient temperature -10℃ – +40℃
>>Painted with 140μm epoxy paint for maximum resistance against climatic conditions, extending the hoist’s working life
