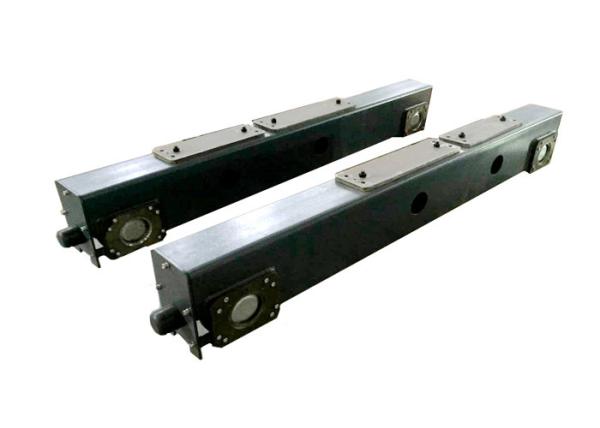

High Capacity Heavy Load Crane End Beam General Double Girder End carriage
High Capacity Heavy Load Crane End Beam General Double Girder End carriage
High Capacity Heavy Load Crane End Beam General Double Girder End carriage
High Capacity Heavy Load Crane End Beam General Double Girder End carriage
Specifications
Brand Name :
JCYC
Model Number :
JCYC-GD
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 to 300 sets per week
Delivery Time :
15 to 20 working days
Packaging Details :
Plywood case
Condition :
Brand new
Feature :
Heavy load
Performance :
High efficiency
Material :
Rolled steel
Advantages :
Customised
Traveling speed :
20 to 30 m/min
Description

High Capacity Heavy Load Crane End Beam General Double Girder End carriage

PRODUCT DETAILS:

High Capacity Heavy Load Crane End Beam General Double Girder End carriage

High Capacity Heavy Load Crane End Beam General Double Girder End carriage

Model Crane Rectangular
Steel tube		 Wheel Size Motor power S1
(mm)		 S2
(mm)		 S3
(mm)		 W1
(mm)		 W2
(mm)
GD160-20 1t/2t-11.5m 150*200*8 W160*70 0.4KW*2 2000 1700 1000-1200 400 500
GD160-25 1t/2t-16.5m 2500 2200 1000-1200 400 500
GD200-25 3t/5t-11.5m 150*250*8 W200*70 0.4KW*2 2500 2200 1200-1400 400 500
GD200-30 3t/5t-16.5m 0.75KW*2 3000 2700 1200-1400 400 500
GD200-35 3t/5t-22.5m 3500 3200 1200-1400 500 600
GD200-40 3t/5t-28.5m 4000 3700 1200-1400 600 700
GD250-30 10t-11.5m 200*250*8 W250*80 0.75KW*2 3000 2600 1400-1600 500 600
GD250-35A 10t-16.5m 1.1KW*2 3500 3100 1400-1600 500 600
GD250-40A 10t-22.5m 4000 3600 1400-1600 500 600
GD250-45A 10t-28.5m 4500 4100 1400-1600 600 700
GD250-35B 16t-16.5m 200*300*8 W250*80 1.1KW*2 3500 3100 1600-1800 600 700
GD250-40B 16t-22.5m 1.5KW*2 4000 3600 1600-1800 600 700
GD250-45B 16t-28.5m 4500 4100 1600-1800 600 700
GD315-35 20t-16.5m 200*400*8 W315*90 1.5KW*2 3500 3000 1600-1800 700 800
GD315-40 20t-22.5m 4000 3500 1600-1800 700 800
GD315-45 20t-28.5m 4500 4000 1600-1800 700 800
GD250-40T 32t-16.5m 200*400*8 W250*80/2 1.5KW*4 4000 3600 1800-2000 700 800
GD250-45T 32t-22.5m 4500 4100 1800-2000 700 800
GD250-50T 32t-28.5m 5000 4600 1800-2000 700 800

COMPETITIVE ADVANTAGES:


1. Light weight, low noise, generally used in normal working condition.
2. Taking international advanced technology.
3. Save the power, lower wheel load to ensure high efficiency.
5. Adjustable speed according to clients' request.

PLEASE FEEL FREE TO CONTACT US WITH ANY INQUIRY.
