1 ton - 5 ton Electric Chain Hoist With Travelling Hooks For Construction Industrial
1 ton - 5 ton Electric Chain Hoist With Travelling Hooks For Construction Industrial
Specifications
Brand Name :
JCYC
Model Number :
SK
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD negotiate per unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood case
Color :
Orange / Yellow
Capacity :
0.3 Ton - 5 Ton
Lifting Height :
Alternative
Net Weight :
42kg - 100kg
Motor Power :
0.5 Kw- 1.8 Kw
Body shell :
Light aluminum alloy
Description

1 ton - 5 ton Electric Chain Hoist With Travelling Hooks For Construction Industrial

Features and advantages:

1. The main parts of it adopt high quality steel product to ensure durability.

2. Special specifications and marks can be made according to customers' requirements.

3. Various lifting capacity, meet different needs.

4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

Product technical parameters:

Technical Data(single speed)

Model SK0.25 SK0.5 SK1.0 SK1.5 SK2.0-1 SK2.0-2 SK2.5 SK3.0-1 SK3.0-2 SK5.0
Capacity(ton) 0.25 0.5 1.0 1.5 2.0 2.0 2.5 3.0 3.0 5.0
Lifting speed(m/min) 9.2 8.3 6.3 8.5 6.9 3.2 6.6 6.6 4.2 3.3
Motor power(kw) 0.56 0.9 1.5 3.0 3.0 1.5 3.0 3.0 3.0 3.0
Rotation speed(r/min) 1440
Insulation grade F
Power supply 3-phase/220V-380V
Control voltage 24V/36V/48V
No. of load chain 1 1 1 1 1 2 1 1 2 2
Spec. of load chain 4.0mm 6.3mm 7.1mm 10.0mm 10mm 7.1mm 11.2mm 11.2mm 10mm 11.2mm

Technical Data(frequency transformer)

Model SK0.25 SK0.5 SK1.0 SK1.5 SK2.0-1 SK2.0-2 SK2.5 SK3.0-1 SK3.0-2 SK5.0
Capacity(ton) 0.25 0.5 1.0 1.5 2.0 2.0 2.5 3.0 3.0 5.0
Lifting speed(m/min) 0.92-9.2 0.83-8.3 0.83-8.3 0.85-8.5 0.69-6.9 0.32-3.2 0.66-6.6 0.66-6.6 0.42-4.2 0.33-3.3
Motor power(kw) 0.56 0.9 1.5 3.0 3.0 1.5 3.0 3.0 3.0 3.0
Rotation speed(r/min) 1440
Insulation grade F
Power supply 3-phase/220V-380V
Control voltage 24V/36V/48V
No. of load chain 1 1 1 1 1 2 1 1 2 2
Spec. of load chain 4.0mm 6.3mm 7.1mm 10.0mm 10mm 7.1mm 11.2mm 11.2mm 10mm 11.2mm

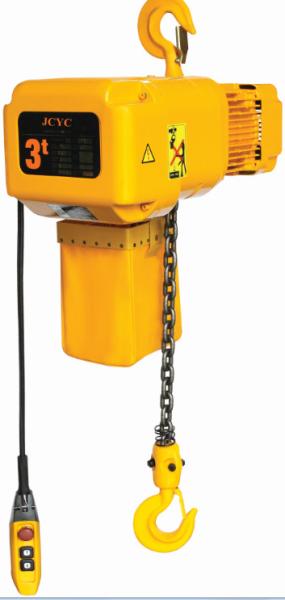

Product show:

1 ton - 5 ton Electric Chain Hoist With Travelling Hooks For Construction Industrial

1 ton - 5 ton Electric Chain Hoist With Travelling Hooks For Construction Industrial
