Lifting Tools 2.7kn - 266kn , Wire Rope Sling with Single Double Or Four Legs 6mm - 60 mm
Lifting Tools 2.7kn - 266kn , Wire Rope Sling with Single Double Or Four Legs 6mm - 60 mm
Specifications
Brand Name :
JCYC/OEM
Model Number :
Wire Rope Sling with Single, Double Or Four Legs
Certification :
CE ISO9001 Manufacturing licence
Place of Origin :
China
MOQ :
500 meters
Price :
negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
80000 meters per month
Delivery Time :
30 working day
Packaging Details :
Metal bucket
Leg :
Single
Legs :
Four
Wire Rope Dia. :
6mm - 60mm
Link Parameter (mm) :
65*130*16 - 180*330*52
WLL :
0.75t - 30t
MOQ :
500 meters
Description

1. Product Profile:

Wire Rope Sling with Single, Double or Four Legs

2. Features and Advantages:

2.1. Rated load has two kinds of state.

2.2. Usually is 0° - 45° priority load if no special requirement.

2.3. Different rated load on different wire rope specification.

2.4. Customization on steel wire rope structure to calculate the rated load is acceptable.

3. Parameter:

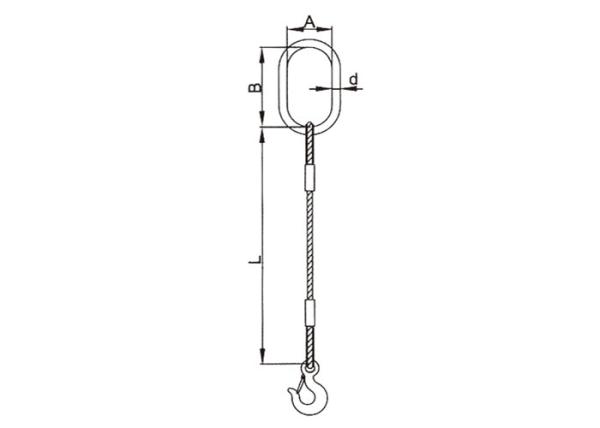

Model Wire Rope Dia.(mm) WLL (kn) Link Parameter(A*B*d)(mm) Lifting Hook
Item WLL(t)
SY-WCSH-6 6 2.7 65*130*16 U.S. 320A 0.75
SY-WCSH-7 7 3.6 65*130*16 U.S. 320A 0.75
SY-WCSH-8 8 4.7 65*130*16 U.S. 320A 0.75
SY-WCSH-9 9 6 65*130*16 U.S. 320A 0.75
SY-WCSH-10 10 7.4 65*130*16 U.S. 320A 0.75
SY-WCSH-11 11 8.9 65*130*16 U.S. 320A 1
SY-WCSH-12 12 11 65*130*16 U.S. 320A 1.5
SY-WCSH-13 13 12 65*130*16 U.S. 320A 1.5
SY-WCSH-14 14 14 65*130*16 U.S. 320A 1.5
SY-WCSH-16 16 19 65*130*16 U.S. 320A 2
SY-WCSH-18 18 24 80*150*20 U.S. 320A 3
SY-WCSH-20 20 30 80*150*20 U.S. 320A 3
SY-WCSH-22 22 36 90*160*24 U.S. 320A /
SY-WCSH-24 24 42 90*160*24 U.S. 320A /
SY-WCSH-26 26 50 90*160*24 U.S. 320A /
SY-WCSH-28 28 58 100*190*28 U.S. 320A 7
SY-WCSH-30 30 66 100*190*28 U.S. 320A 7
SY-WCSH-32 32 76 100*190*28 U.S. 320A 11
SY-WCSH-34 34 85 110*200*32 U.S. 320A 11
SY-WCSH-36 36 96 110*200*32 U.S. 320A 11
SY-WCSH-38 38 106 120*230*34 U.S. 320A 11
SY-WCSH-40 40 118 120*230*34 U.S. 320A 15
SY-WCSH-42 42 130 135*250*38 U.S. 320A 15
SY-WCSH-44 44 143 135*250*38 U.S. 320A 15
SY-WCSH-46 46 156 140*270*42 U.S. 320A 22
SY-WCSH-48 48 170 140*270*42 U.S. 320A 22
SY-WCSH-50 50 185 140*270*42 U.S. 320A 22
SY-WCSH-52 52 200 140*270*42 U.S. 320A 30
SY-WCSH-54 54 215 140*270*42 U.S. 320A 30
SY-WCSH-56 56 231 160*310*46 U.S. 320A 30
SY-WCSH-58 58 248 460*310*46 U.S. 320A 30
SY-WCSH-60 60 266 180*330*52 U.S. 320A 30

4. Company Message:

OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.

5. Photo for Reference:

Lifting Tools 2.7kn - 266kn , Wire Rope Sling with Single Double Or Four Legs 6mm - 60 mm
