Crane Scale Lifting Tools With Printer 1 ton - 50 ton , Shackle And Hook For Workshop / Warehouse
Crane Scale Lifting Tools With Printer 1 ton - 50 ton , Shackle And Hook For Workshop / Warehouse
Specifications
Brand Name :
JCYC
Model Number :
G5 / D5 / D5H
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs /week
Delivery Time :
15 working days
Packaging Details :
Carton
Product :
Crane Scale With Printer
Max. Cap. :
50 ton
Min Cap. :
1 ton
Display refresh rate :
6 times per second
Extral Device :
Optional Thermal Insulation Device
Length :
560 mm - 1645 mm
Description

OCS-D crane scale with printer

Weighing accuracy Comply with OIML Ⅲ
Display refresh rate 6 times per second
Operation time( with full charged battery) 40 hours
Wireles transmission distance No less than 200m without any obstacles
Safe over-load 150%F.S
Damaging over-load 300%F.S
Working temperature rangle ­30～50℃
Operation humidity ＜95%R.H
Scabel battery 6V/4.5Ah rechargeable battery

Details Weight kg
Capacity t Division kg Length Ring weight Ring height lifting hook Round shell height Diameter G5 D5 D5H
1 1 560 95 58 25 140 265 34 38 44
2 1 560 95 58 25 140 265 34 38 44
3 1 560 95 58 25 140 265 34 38 44
5 2 820 120 80 45 190 320 49 53 60
10 5 940 125 90 55 190 320 59 63 71
15 5 1000 135 98 60 190 320 68.5 72.5 85
20 10 1100 235 127 75 190 320 91.5 92.5 107
30 10 1290 280 145 90 190 375 132 136 147
50 20 1645 290 210 160 296 510 325 330 360

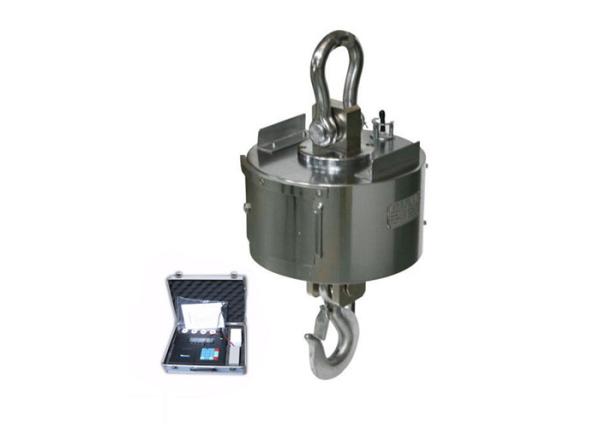

Product photos

Crane Scale Lifting Tools With Printer 1 ton - 50 ton , Shackle And Hook For Workshop / Warehouse

Crane Scale Lifting Tools With Printer 1 ton - 50 ton , Shackle And Hook For Workshop / Warehouse

Features

1. Good dynamic weighing performance, and the accuracy will not be affected by shaking

2. Steel structure, with high anti-bump and anti-interface capability

3. High integrated electron and high stability performance

4. Multiple weighing mode: conventional weighing mode, peak hold mode, counting mode and so on.

5. With memory-storage function of accumulating the total weight and total numbers

6. Adjust the division value according to the weighing objects

7. With high environmental suitability

8. Highlighted red or green LED, fit for the operation indoor or outdoor

9. Adopt stain gauge type load cell, with high precision and repeatability

10. RS232 interface selectable, can connect PC, large screen display and printer
