ISO Standrad Electric Pulling Winch Lemon With Capacity 0.5 Ton - 10 Ton
ISO Standrad Electric Pulling Winch Lemon With Capacity 0.5 Ton - 10 Ton
Specifications
Brand Name :
JCYC
Model Number :
JK
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 pcs per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood case
Capacity :
1000-10000kg
Weight :
460-10000Kg
Color :
Lemon Yellow
Lifting height :
Alternative
Power Source :
Electric
Lifting speed :
Alternative
Description

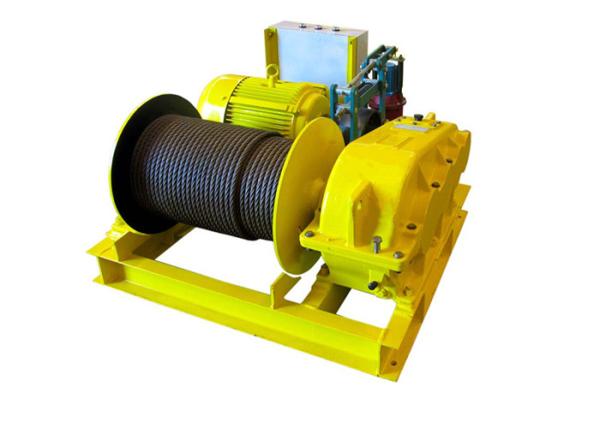

JK Electric Winch

ISO Standrad Electric Pulling Winch Lemon With Capacity 0.5 Ton - 10 Ton

JK Electric Winch
Model JK1 JK3 JK5 JK8 JK10
Line pull capacity (kg) 1000 3000 5000 8000 10000
Wire rope average speed (m/min) 30 30 28 20 19
Wire rope Dia.( mm): 9.3 15.5 21.5 26 30
Reduction box Type JZQ350 JZQ500 JZQ650 JZQ650 JZQ750
Transmission ratio 31.5 23.34 40.17 23.34 23.34
Drum (mm) Diameter(mm) 190 325 406 500 550
Length 360 520 840 900 1000
Capacity(m) 110 200 300 300 450
motor Type Y132M-4 YZR225M-8 YZR250M1-8 YZR250M1-6 YZR250M2-6
Power(kW) 7.5 22 30 37 45
Rotating speed(r/min) 1440 715 864 960 960
Hydraulic Brake YWZ-200/25 YWZ-200/25 YWZ-300/45 YWZ-300/45 YWZ-400
Dimension (cm) 945x97x60 147x140x95 186x166x95 240x180x110 250x190x120
Weight(kg) 460 1200 2700 4000 5000
