Vertical Plate Clamp of High Quality Carbon Steel with a safety mechanism for Lifting Steel Plates
Vertical Plate Clamp of High Quality Carbon Steel with a safety mechanism for Lifting Steel Plates
Vertical Plate Clamp of High Quality Carbon Steel with a safety mechanism for Lifting Steel Plates
Vertical Plate Clamp of High Quality Carbon Steel with a safety mechanism for Lifting Steel Plates
Specifications
Brand Name :
JCYC
Model Number :
CD
Certification :
CE
Place of Origin :
China
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs/week
Delivery Time :
15 working days
Packaging Details :
Pallet
Product name :
CD Vertical Plate Clamp
Material :
High Quality Carbon Steel
Max.Capacity :
30 ton
Min. Capacity :
0.8 ton
Application :
Steel plates or Steel Structure
Color :
Red and Yellow
Description

CD Vertical Plate Clamp

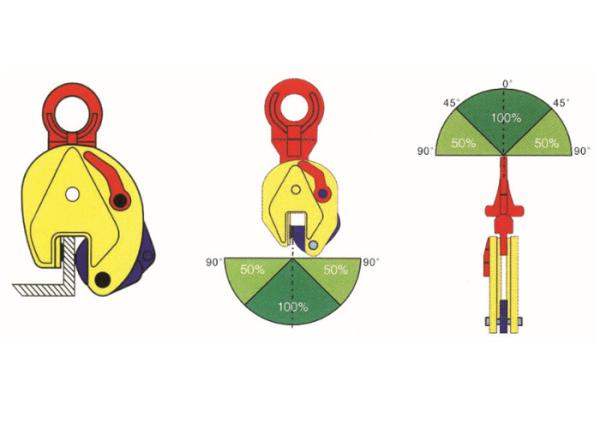

Lifting and transporting steel plates and structures from all positions (Horizontal, Vertical and sidelong)

Articulated lifting shackle (CD type)

Clamps are equipped with a safety mechanism, to prevent the clamp from slipping when lifting force is applied and when as in open position. The clamp is locked in closed as well as in open position.

Manufactured from high quality carbon steel

Do not overload

Vertical Plate Clamp of High Quality Carbon Steel with a safety mechanism for Lifting Steel Plates

Model WLL (ton) Jaw opening (mm) Weight kg
0.8t 0.8 0-15 2
1t 1 0-15 4
1t-B 1 0-20 5
1.6t 1.6 0-20 7
2t 2 0-25 8
3.2t 3.2 0-25 15
3.2t-B 3.2 0-30 15
5t 5 0-30 21
5t-B 5 0-50 23
8t 8 0-45 37
12t 12 0-70 50
16t 16 60-100 65
30t 30 80-220 120
