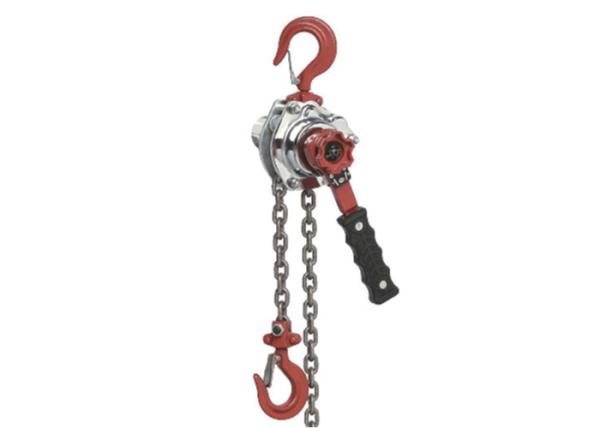

Mini Lever Hoist 250 kg 550 kg Lightweight / Compact / Convenient Design
Mini Lever Hoist 250 kg 550 kg Lightweight / Compact / Convenient Design
Specifications
Brand Name :
JCYC
Model Number :
VK
Certification :
CE
Place of Origin :
CHINA
MOQ :
10 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs / week
Delivery Time :
15 working days
Packaging Details :
Carton
Product :
500 kg Lever Hoist
Chain Grade :
Grade 80
Standard Lifting height :
1 m
Application :
Warehouse / Workshop
Warranty :
One year
Description

Mini Lever Hoist 250 kg 550 kg Lightweight / Compact / Convenient Design

Parameters

Model Capacity(kg) Lift Height(m) Running test load(T) Headroom (mm) No.of load chain fall Hand-pull lift force(N) Chain Dia(mm) Net weight (kg)
VK0.25T 250 1 3.75 215 1 125 4*12 0.35
VK0.5T 500 1.5 7.5 255 1 180 5*15 0.55

Product description

Lever block is a universal, manual hoist for lifting, tensioning and lashing in any direction.

The ratchet lever block features compact design and robust, deep drawn, stamped steel construction.

High quality materials ensure light weight without infringing reliability.

1. Light-weight, small mounting sizes and small lever force at full load.

2. Top & bottom hooks are fitted with safety latches as standard.

3. The load chain can be pulled freely and easily through the hoist in both directions to attach the load or to

tension the chain. For safety reason free chains can not be done when the hoist is under load.

4. Short hand lever with rubber grip Level Block, level hoist, .

5. Hand lever operates with little effort due to optimal gear ratio.

6. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous

overloading or abuse, the hook does not fracture but will slowly yield.

7. The hoist is fitted with high grade alloy load chain Level Block, level hoist, .

8. Inspection of lever hoist & manuals Level Block, level hoist, .

9. OEM available for Level Block, level hoist,
