100 - 240V Electric Wire Rope Hoist With Moving Trolley Single Hook
100 - 240V Electric Wire Rope Hoist With Moving Trolley Single Hook
Specifications
Brand Name :
JCYC
Model Number :
MINI
Certification :
CE
Place of Origin :
CHINA
MOQ :
10 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 units per month
Delivery Time :
15 working days
Packaging Details :
Standard Export Package
Max. Height :
12m
Max. Lifting Weight: :
1200KG
Sling :
Wire Rope
Hook Usage :
Single Or Double Usage
Power Supply :
100-240V, 220V-240V
Color :
Customized
Description

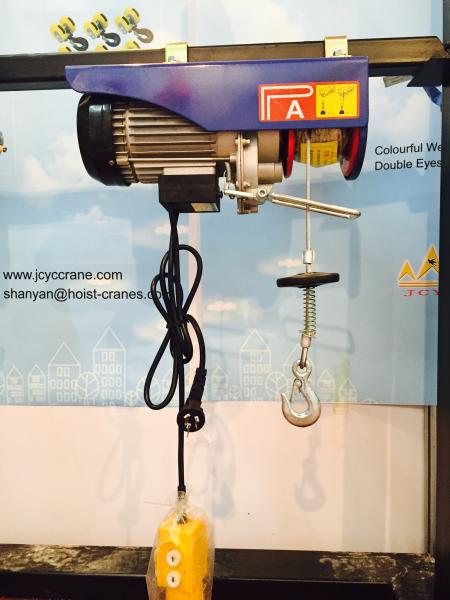

Mini Electric Wire Rope Hoist With Moving Trolley and Emergency Stop Switch PA250

Product Description:

Usage:

The mini electric hoist with trolley is very suitable for daily civilian using, industrial production line, freight logistics and other places.

Features and advantages:

1. Small wire rope hoist with trolley and emergency stop switch.

2. Reinforced braking switch with position limit.

3. Protection class ups to IP54.

4. Mini steel wire rope hoist with thermal prevention device.

5. Unique design and elegant shape.

6. The suspension parts allow unique and safe installation.

7. Increases service life by 20 times.

8. The redesigned storage system allows a rotation of the cable drum for increased service life.

9. Problem-free grease via the grease nipple.

10. Secure suspension parts by interlock lock protection.

11. Include wireless remote.

12. Waterproof protection class is IP65.

13. It has two hooks which can meet different lifting needs.

Photo of Package:

100 - 240V Electric Wire Rope Hoist With Moving Trolley Single Hook

Parameter:

Model Lifting capacity Single/double hook Rated volt Lifting height Load of Trolley Speed of Trolley Qty./Ctn Packing size G.W./N.W.
(kg) (v) single/double hook (t) (m/min) (pcs) (cm) (kg)
(m)
SY-200C 100/200 100/110/120 12/6 0.5 13 1 49x41x47 28/26
220/230/240
SY-250C 125/250 100/110/120 12/6 0.5 13 1 49x41x47 28/26
220/230/240
SY-300C 150/300 100/110/120 12/6 0.5 13 1 49x41x47 28/26
220/230/240
SY-400C 200/400 100/110/120 12/6 0.5 13 1 49x41x47 35/33
220/230/240
SY-500C 250/500 100/110/120 12/6 0.5 13 1 49x41x47 35/33
220/230/240
SY-600C 300/600 100/110/120 12/6 1 13 1 54x48x48 35/33
220/230/240
SY-700C 350/700 220/230/240 12/6 1 13 1 54x48x48 38/36
SY-800C 400/800 220/230/240 1 13 1 54x48x48 38/36
SY-1000C 500/1000 220/230/240 12/6 1 13 1 62x51x53 55/53
SY-1200C 600/1200 220/230/240 1 13 1 62x51x53 55/53
