CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist
CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist
Specifications
Brand Name :
JCYC
Model Number :
CD1
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per month
Delivery Time :
15 to 20 working days
Packaging Details :
Standard export wooden cases
Product name :
CE Approved CD Model Customized Wire Rope Used Electric Hoist Price
Brand :
JCYC
Capacity :
0.25 to 50T
Lifting speed :
3.5 to 8 m/min
Running speed :
20 m/min
Power supply :
220-440V, 50/60HZ, 3Phase
Description

CE Approved CD Model Customized Wire Rope Used Electric Hoist Price

Product Technical Parameters:

CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist

Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty

Lifting

Motor

Running

Motor

Powe

r(kw)

 R.P.M ( r/min) Power Supply

Powe

r(kw)

R.

P.M ( r/min)

 Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380

220

-440V 50/60HZ 3Phase

 0.06 1400 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380

Product Brief Introduction:

Model CD wirerope Electric Hoist ia a small-sized lifting equpment , which can be mounted on single beam,overhead ,gantry and Jib cranes, With slight modiflication,it can also be uesd as a winch.it is widly uesd in factories, mines,harbours, warehouses,cargo storeareas and shops,It is essential in raising working efficeiency and improving working conditions.

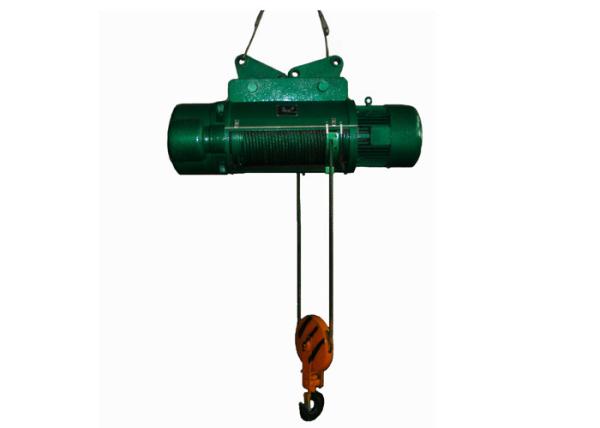

Product Show:

CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist
CE Approved Electric Wire Rope Hoist CD Model Customized Mini Electric Hoist

Buying Guides:

Please tell us your specification according the above different drawing, if difficult to you, kindly see the below the basic parameters or tell us your questions. We will choose a suitable products for you.

Or Just tell me where you will use, then it is my turns.
1. Load capacity:___t?
2. Lifting height: ___m?
3. (For crane) Span:____m?
4. Industrial voltage:___V___Hz___Phases?
5. Working Duty:____?
(Working hours ___h/day? Often full load or not? High working frequency or low? )
6. Other special specifications?
