1 ton to 35 tons Explosion Proof Electric Chain Hoists Alloy Steel Adjustable Speed
1 ton to 35 tons Explosion Proof Electric Chain Hoists Alloy Steel Adjustable Speed
Specifications
Brand Name :
JCYC / OEM
Model Number :
EP, SY-EP
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
9,000 pieces per month
Delivery Time :
15 workdays
Packaging Details :
Export Package
Color :
Yellow or Customize Color
Paint :
Painting
Grade :
Explosion-proof
Warranty :
12 months
type :
Electric chain hoist
model :
EP, SY-EP
capacity :
1 ton to 35 tons
Description

1 ton to 35 tons Explosion Proof Electric Chain Hoists Alloy Steel Adjustable Speed

1. Product Profile:

EP, SY-CP Model Explosion-proof Electric Chain Hoist. It completely solved sparkers problem and widely used in special industries. Its working system is M3 - M4, has 120 numbers of connecting times. Standard power source is three phase AC 380 V 50 Hz, customization is ok.

2. Description:

2.1. Grade: Ex d II B T4 Gb. Insulation of motor: F Class.

2.2. High quality and wide adaptation.

2.3. Excellent performance.

2.4. 1 year warranty

2.5. Sample, OEM and ODM are all ok.

3. Advantages:

3.1. The main parts of it adopt high quality steel product to ensure durability.

3.2. Special specifications and marks can be made according to customers' requirements.

3.3. Adapts to environment that has explosive gas formed by inflammable gas, steam and sir, etc

3.4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

3.5 Explosion-proof electric chain hoist.

4. Parameter:

Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor Running Motor I-Beam(mm)
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
EP1 1 6.8 10/20 1.5 1440 220-440V 50/60HZ 3Phase 0.4 1440 220-440V 50/60HZ 3Phase 80-160
EP2-1 2 6.8 10/20 3.0 1440 0.4 1440 82-178
EP2-2 2 3.4 10/20 1.5 1440 0.4 1440 82-178
EP3-1 3 5.4 10/20 3.0 1440 0.4 1440 100-178
EP3-2 3 3.4 10/20 3.0 1440 0.4 1440 100-180
EP5-2 5 2.7 10/20 3.0 1440 0.75 1440 110-180
EP10-4 10 2.8 10/20 3.0*2 1440 0.75*2 1440 150-220
EP15-6 15 1.9 10/20 3.0*2 1440 0.75*2 1440 150-220
EP20-8 20 1.4 10/20 3.0*2 1440 0.75*2 1440 150-220
EP25-10 25 1.1 10/20 3.0*2 1440 0.75*2 1440 150-220
EP30-12 30 0.9 10/20 3.0*2 1440 0.75*2 1440 150-220
EP35-16 35 0.7 10/20 3.0*2 1440 0.75*2 1440 150-220

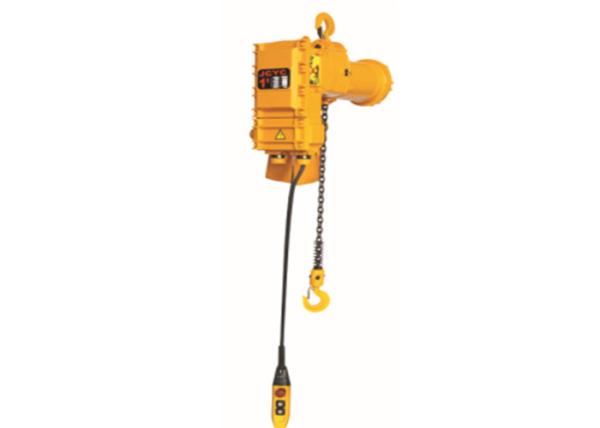

5. Photo:
1 ton to 35 tons Explosion Proof Electric Chain Hoists Alloy Steel Adjustable Speed
1 ton to 35 tons Explosion Proof Electric Chain Hoists Alloy Steel Adjustable Speed

6. Company Message:

OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
