Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes
Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes
Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes
Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes
Specifications
Brand Name :
JCYC
Model Number :
GL
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200-300 sets per week
Delivery Time :
15 working days
Packaging Details :
Plywood case
Span :
Optional
Lifting Height :
Optional
Capacity :
Optional
Color :
Customized
Mini Motor power :
0.3.kw/2
Application :
Single Girder Cranes
Description

Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes

Main Features:

End carriage use rectangular tube manufacturing module, buffer motor drive, with forged wheels, using CNC boring and milling of various customized machine, disposable completes the openning, boring, milling drilling. You only need to joint crane girder and the end carriage corrected, the high cost, so that your crane manufacturing, installation and maintenance is very easy.

Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes

Product Datasheet:

Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes

Model Crane Rectangular
Steel tube		 Wheel Size Motor power S1
(mm)		 S2
(mm)		 W1
(mm)		 W2
(mm)
GL125-15 1t-7.5m 150*150*6 W125*60 0.3KW*2 1500 1300 400 500
GL125-20 1t-11.5m 2000 1800 400 500
GL125-25 1t-16.5m 2500 2300 400 500
GL160-15 2t/3t-7.5m 150*200*8 W160*70 0.4KW*2 1500 1200 400 500
GL160-20 2t/3t-11.5m 2000 1700 400 500
GL160-25 2t/3t-16.5m 2500 2200 400 500
GL160-30 2t/3t-22.5m 3000 2700 500 600
GL160-35 2t/3t-28.5m 3500 3200 600 700
GL200-20 5t-11.5m 150*250*8 W200*70 0.4KW*2 2000 1700 400 500
GL200-25 5t-16.5m 2500 2200 400 500
GL200-30 5t-22.5m 0.75KW*2 3000 2700 500 600
GL200-35 5t-28.5m 3500 3200 600 700
GL250-20 10t-11.5m 200*250*8 W250*80 0.75KW*2 2000 1600 400 500
GL250-25A 10t-16.5m 2500 2100 500 600
GL250-30A 10t-22.5m 1.1KW*2 3000 2600 500 600
GL250-35A 10t-28.5m 3500 3100 700 800
GL250-25B 16t-16.5m 200*300*8 W250*80 1.1KW*2 2500 2100 600 700
GL250-30B 16t-22.5m 3000 2600 700 800
GL250-35B 16t-28.5m 1.5KW*2 3500 3100 700 800
GL315-30 20t-16.5m 200*400*8 W315*90 1.5KW*2 3000 2500 700 800
GL315-35 20t-22.5m 3500 3000 700 800

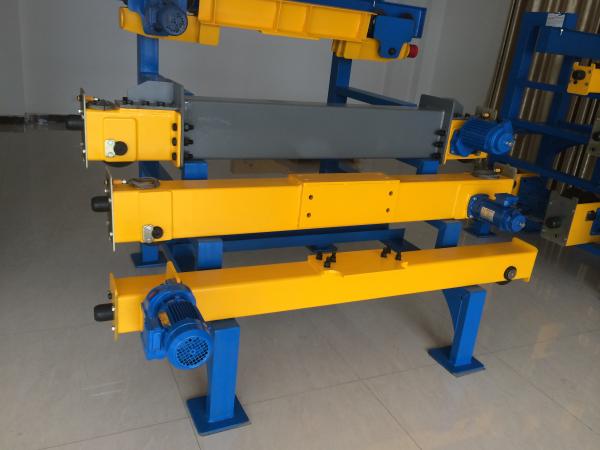

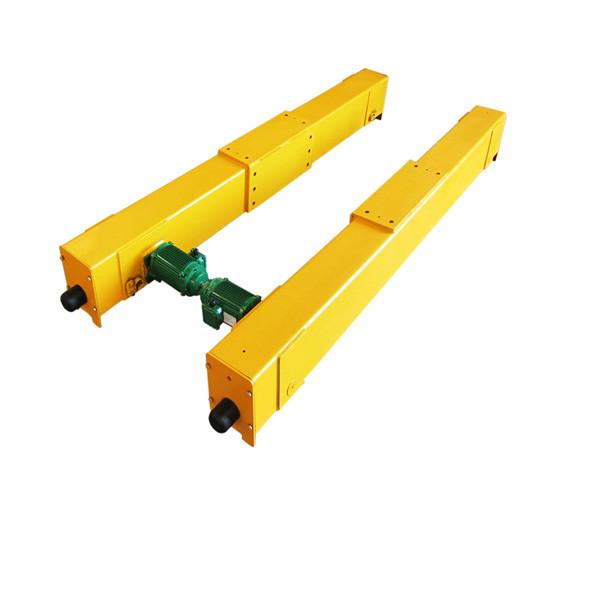

Product Show:

Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes

Single Girder Top Running End Carriage for Various Suspension and Bridge Cranes

Single Girder Top Running End Carriage for Various Suspension and Bridge CranesSingle Girder Top Running End Carriage for Various Suspension and Bridge Cranes
