10T 15T 20T 50T 5Ton Wire Rope Crane Hoist Single And Double Speed
10T 15T 20T 50T 5Ton Wire Rope Crane Hoist Single And Double Speed
10T 15T 20T 50T 5Ton Wire Rope Crane Hoist Single And Double Speed
10T 15T 20T 50T 5Ton Wire Rope Crane Hoist Single And Double Speed
Specifications
Brand Name :
JCYC
Model Number :
CD/MD
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
15 to 20 working days
Packaging Details :
Standard export wooden cases
Product name :
CD / MD Electric Wire Rope Hoist
Model :
CD/MD model
Brand :
JCYC/OEM
Capacity :
0.25T to 50T
Lifting speed :
0.8m/min /8m/min
Color :
As your request
Description

CD / MD 10T 15T 20T 50T 5Ton Electric Wire Rope Hoist Single and Double Speed Electric Cable Hoist

Product Description:

CD and MD type wire rope electric hoist descriptions:
The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed in single beam crane, bridge crane, gantry crane, cantilever crane, etc. They can meet the requirements of ordinary occasions.

The electric wire rope hoist model CD and MD have the features of compact, light, small-size shape and smooth operation. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double girder crane, the cantilever crane and the gantry crane. The electric hoist model MD1 with double lifting speed should be used in cases where the hoist model CD1 with single speed cannot meet the requirements for fine adjusting during precision operations.

Product Parameters:

JCYC-CD1 Electric Wire Rope Hoist

Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type

Dia.

of Wire Rope (mm)

 I Beam Track Type Working Duty Lifting Motor

Running

Motor

Power

(kw)

 R.P.M Power Supply

Power

(kw)

 R.P.M Power Supply
CD1-0.25 0.25 3-9 8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase

0.06

 1400 220-440V 50/60HZ 3Phase
CD1-0.5 0.5 6-12 8 20 6*37+1 4.8 16-28b M3 0.8 1380 0.2 1380
CD1-1 1 6-30 8 20 6*37+1 7.4 16-28b M3 1.5 1380 0.2 1380
CD1-2 2 6-30 8 20 6*37+1 11 20a-32c M3 3 1380 0.4 1380
CD1-3 3 6-30 8 20 6*37+1 13 20a-32c M3 4.5 1380 0.4 1380
CD1-5 5 6-30 8 20 6*37+1 15 25a-63c M3 7.5 1380 0.8 1380
CD1-10 10 6-30 7 20 6*37+1 15 25a-63c M3 13 1400 0.8*2 1380
CD1-16 16 6-30 3.5 20 6*37+1 15 45a-63c M2 13 1400 0.8*2 1380
CD1-20 20 6-30 3.5 20 6*37+1 20 50a-63c M2 13 1400 0.8*2 1380

JCYC-MD1 Electric Wire Rope Hoist

Model Lifting Capacity (t) Lifting Height (m) Lifting Speed (m/min) Running Speed (m/min) Wire Rope Type Dia.of Wire Rope (mm) I Beam Track Type Working Duty Lifting Motor Running Motor

Power

(kw)

 R.P.M ( r/min) Power Supply

Power

(kw)

 R.P.M ( r/min) Power Supply
MD1-0.25 0.25 3-9 8/0.8 20 6*19 3.6 16-22b M3 0.4 1380 220-440V 50/60HZ 3Phase 0.06 1400 220-440V 50/60HZ 3Phase
MD1-0.5 0.5 6-12 8/0.8 20 6*37+1 4.8 16-28b M3 0.2/0.8 1380 0.2 1380
MD1-1 1 6-30 8/0.8 20 6*37+1 7.4 16-28b M3 0.2/1.5 1380 0.2 1380
MD1-2 2 6-30 8/0.8 20 6*37+1 11 20a-32c M3 0.4/3.0 1380 0.4 1380
MD1-3 3 6-30 8/0.8 20 6*37+1 13 20a-32c M3 0.4/4.5 1380 0.4 1380
MD1-5 5 6-30 8/0.8 20 6*37+1 15 25a-63c M3 0.8/7.5 1380 0.8 1380
MD1-10 10 6-30 7/0.7 20 6*37+1 15 25a-63c M3 1.5/13 1400 0.8*2 1380
MD1-16 16 6-30 3.5/0.35 20 6*37+1 15 45a-63c M2 1.5/13 1400 0.8*2 1380
MD1-20 20 6-30 3.5/0.35 20 6*37+1 20 50a-63c M2 1.5/13 1400 0.8*2 1380

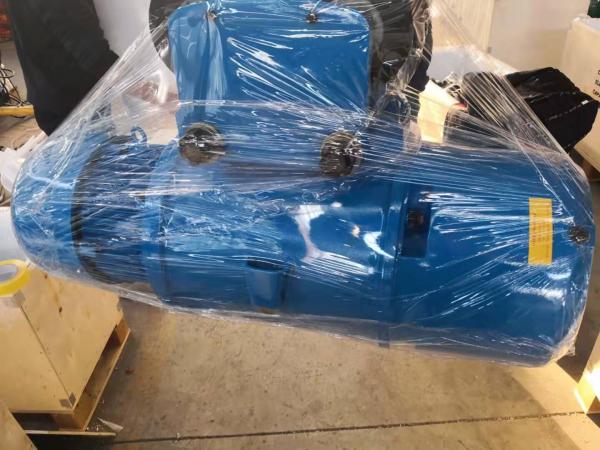

Product Packing:

10T 15T 20T 50T 5Ton Wire Rope Crane Hoist Single And Double Speed
