5 Ton To 320 Ton Heavy Duty Double Girder Overhead Travelling Crane
5 Ton To 320 Ton Heavy Duty Double Girder Overhead Travelling Crane
Specifications
Brand Name :
JCYC / OEM
Model Number :
JCYC-DGC
Certification :
CE ISO9001 Manufactring licence
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Ngotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
800 pcs per month
Delivery Time :
15 to 20 working day
Packaging Details :
standard export packing
Name :
5 ton to 320 ton Large Heavy Duty Double Girder Overhead Travelling Crane
Capacity :
5 ton - 150 ton
Span :
7.5 meters - 36 meters
Voltage :
380-690V 3Phase
Beam :
Double beam
Type :
Dual-beam bridge crane
Material :
Q345 Steel
Description

5 ton to 320 ton Large Heavy Duty Double Girder Overhead Travelling Crane​

Product Profile:

Double girder overhead crane is a large and powerful heavy duty lifting equipment used for various fields and sectors, such as workshop of manufacturing and assembly lines, chemical plant and freight yard. The double beam overhead crane with hook can handle a considerable amount of weight within your facilities, ranging from 5 ton to 320 ton. To meet your heavier lifting applications or special requirements, the double girder crane can be custom designed and built.

Double girder crane can realize a greater lifting height, speed and work duty than single girder overhead crane, thus it can be empoyed for a

variety of usage from intermittent use to frequent service. With regard to heavy duty overhead crane, the lifting operation is typically controlled within the cabin, whereas wireless remote control is a cost-effective option for light weight lifting operations.

Benefits of employing a double girder overhead crane:

1. It has large capacity and wide application. Generally when the rated load weight is more than 15 ton or the span is over 30m, double girder overhead crane is a preferred option.

2. It has rigid structure, reliable and durable performance, which will enormously increase production for your business.

3. It provides more effective lifting height as the hook can be pulled up between two girders.

4. It is highly suitable for frequent and severe lifting occasions.

Technical parameter:

Capacity

(t)

 5～10t, 16/3.2～50/10t, 75/20～100/20t, 100/32t, 125/30～250/50t, 300/40t, 350/75t, 400/80t, 600/150t

Lifting Height

(mm)

 6～22

Span

(m)

 10.5～31.5m, 13～31m
Operating Mechanism Trolley Rail Distance 1400/1700/2000/2400/2700/3100
Running Speed(m/min) 0～20
Job Level M5
Wheel Diameter(mm) ∮160 ∮220

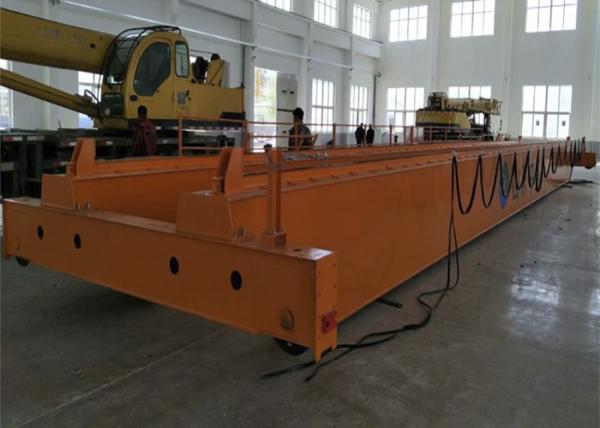

Photo:

5 Ton To 320 Ton Heavy Duty Double Girder Overhead Travelling Crane
