1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
Specifications
Brand Name :
JCYC
Model Number :
KCD
Certification :
CE & ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
15 to 30 working days
Packaging Details :
Standard export wooden cases
Product name :
1000kg Single Phase 220V Endless Rope Electric Winch for Marine
Brand :
JCYC/OEM
Application :
Material lifting/pulling
Capacity :
100kg to 2000kg
Rope length :
0-100m or at your request
Warranty :
1 year
Description

1000kg Single Phase 220V Endless Rope Electric Winch for Marine

Product introduction:

KCD type electric hoist winch is a kind of electric winch, widely used in the construction industry, with the feature of stable
and reliable operation, hoisting height is can reach 100 meter.

Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.

Configurations:

1. The gearbox case of the winch was made of high-strength aluminum alloy materials with light weight and high precision.
2. The winch increased the module gear which could reduce the noise of the gearbox ,higher safety coefficient and longer use time.
3. The winch equiped with afterburner system,specific motor,case fan,the rotary steel wire rope,Rotating hook and so on.The configuration is very high.
4. The winch looks delicate appearance and high grade.

Product Parameters:

Model
Lifting capacity(kg)
Motor power(kw)
Lifting height(m)
Lifting speed(m/min)
Voltage(v)
G.W/N.W(kg)
KCD300
300/600
0.4
0-100
12
220V/380V etc.
35/33
KCD400
400/800
1.0
0-100
12
220V/380V etc.
42/40
KCD500
500/1000
0.8
0-100
14
220V/380V etc.
52/50
KCD750
750/1500
1.5
0-100
12
220V/380V etc.
42/40
KCD1000
1000/2000
3.0
0-100
14
220V/380V etc.
52/50

Questions before make quotation:

1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.

Product show:

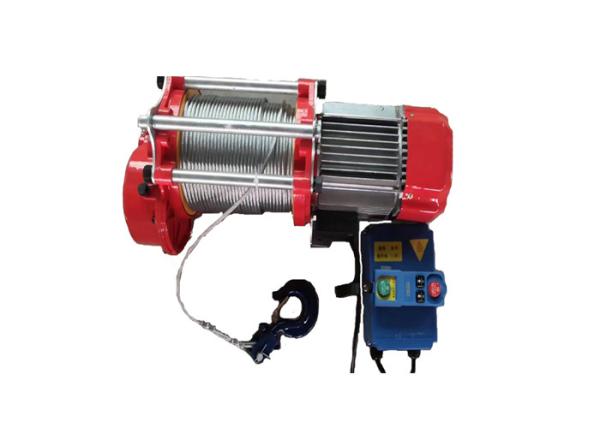

with wireless remote control

1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting

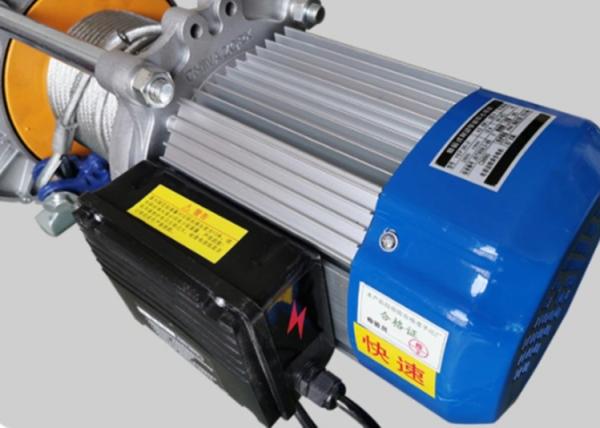

with pendent control

1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting

package

1000kg 220V Endless Wire Rope Winch For Marine 12m/Min Lifting
