3.2 Ton Hook Type Wire Rope Snatch Pulley Block For Rope Lifting
3.2 Ton Hook Type Wire Rope Snatch Pulley Block For Rope Lifting
Specifications
Brand Name :
JCYC
Model Number :
HQGK
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per month
Delivery Time :
15 to 20 days
Packaging Details :
standard export cases
Product name :
3.2 Ton Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting
Short name :
Pulley block, snatch block
Type :
Single wheel hook type
Material :
Forged steel
Capacity :
3.2 ton
Color :
Red, can customized
Description

3.2 Ton Hook Type Heavy Duty Wire Rope Snatch Pulley Block For Rope Lifting

Application

It is used for lifting and sagging operation in transmission line construction. It is used for pole and tower erection, line construction, equipment hoisting and other lifting applications.
The sheave is made of high strength qualified steel, the sheave is mounted on ball bearings. The frame of pulley blocks is galvanized. All the blocks have been tested before ex-works.
The single sheave pulley block can be designed as side open type and side closed type.

Note: Please specify the fitting styles (hook, eye, clevis) when ordering.

Producty strengths

>> International standard, safty factor is 4:1.

>> Easy to maintain: configuration for easy operation and maintenance and extension of the service life of carbon steel wheels and butter nozzle.

>> High strength alloy steel forging, and quenched and tempered heat treatment, stronger tension and more safety.

>> Strong corrosiion resistance:spray surface treatment.

Product detail shows:

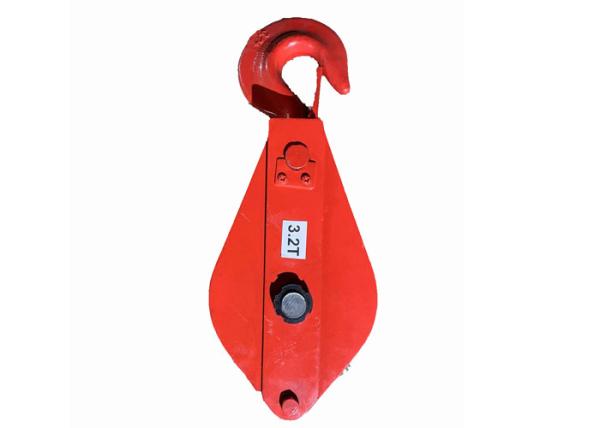

3.2 Ton Hook Type Wire Rope Snatch Pulley Block For Rope Lifting

Product parameters:

Single Wheel Hook Type

Model Rated capacity(t) Test load(kn) Sheave Dia.(mm) For wire dia.(mm) Weight(kg)
HQGK1-0.5 0.5 8 71 6.2-7.7 1.6
HQGK1-1 1.0 16 85 7.7-11 3.1
HQGK1-2 2.0 32 112 11-14 6.1
HQGK1-3.2 3.2 51.2 132 12.5-15.5 10
HQGK1-5 5 80 160 15.5-18.5 17
HQGK1-8 8 128 210 20-23 33
HQGK1-10 10 160 240 23-24.5 43
HQGK1-16 16 224 315 28-31 100
HQGK1-20 20 280 355 31-35 133
