Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
Specifications
Brand Name :
JCYC
Model Number :
JM/JK
Certification :
CE & ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
15 to 30 working days
Packaging Details :
Standard export wooden cases
Product name :
Pulling Electric Wire Rope Winch
Brand :
JCYC/OEM
Application :
Material lifting
Capacity :
1 to 80T
Rope length :
100m to 500m or at your request
Customised :
Yes
Color :
As per your request
Voltage :
220v-440v,50HZ/60HZ/3 P
Description

Industrial Elevator Pulling Electric Wire Rope Winch with Slow and Fast Speed

Overview:

JM/JK electric winch is a cost-effective option to lift and pull heavy objects and materials in building construction, bridge construction, road construction, industrial, mine and marine. It provides easy load control using a push-button control box or remote control (a control pendant or wireless remote control). These winches come in a range of styles and configurations to accommodate your unique applications. We can also custom design and build the winch to your special requirements.

Details:

JM/JK electric winch is a small and lightweight winch machine with simple structure. It mainly consists of electric motor, rope, drum, transmission system, brake and control system.

Electric motor – for general engineering winches, IP44 protected electric motor is used.

Rope – there are two main factors involving in the rope capacity, length and diameter. Wire rope and synthetic rope are available for you to choose from.

Drum – it is a cylindrical device designed to store the rope as well as wind the rope in and out during winching operation.

Transmission system – different types of transmission system are available, including worm gearbox, spur gearbox and planetary gearbox. The selection of winch transmission is determined by your required efficiency and how much torque is going to be transmitted.

Brake – the winch can be delivered with motor brake, transmission brake and drum brake.

Control system – the winch is normally equipped with a control box that comprises up/down push buttons and emergency stop. Remote control is available for a much safer winching operation.

Technical Parameters:

Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope dia. (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JK0.5 500 20/30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 20/30 Φ9.3 70/120 Φ165*415 5.5/7.5
JK1.5 1500 20/30 Φ12.5 80/180 Φ219*450 11/15
JK2 2000 20/30 Φ12.5 80/180 Φ219*480 11/15
JK3 3000 20/30 Φ15.5 100/200 Φ219*525 15/18.5
JK5 5000 20/30 Φ21.5 100/200 Φ325*620 22/30
JK8 8000 20 Φ26 300 Φ500*900 30
JK10 10000 19 Φ30 450 Φ550*1000

45

Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JM0.5 500 15 Φ7.7 50/120 Φ140*300 2.2
JM1 1000 15 Φ9.3 70/120 Φ165*415 5.5
JM1.5 1500 15 Φ12.5 80/180 Φ219*450 7.5
JM2 2000 15 Φ12.5 80/180 Φ219*480 7.5
JM3 3000 15 Φ15.5 100/200 Φ219*525 11
JM5 5000 9 Φ19.5 250 Φ325*620 11
JM8 8000 9 Φ26 300 Φ406*808 15
JM10 10000 9 Φ30 350 Φ406*900 22
JM16 16000 9 Φ38 400 Φ550*1000 37
JM20 20000 9 Φ42 450 Φ650*1300 45
JM30 30000 9 Φ54 450 Φ900*1500 63

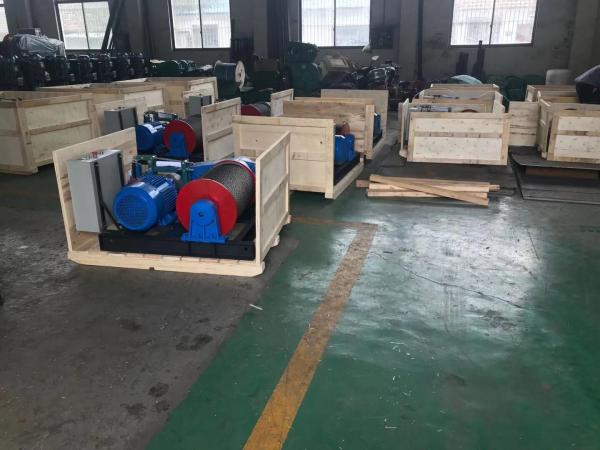

Product show:

Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting

Industrial Elevator Pulling Electric Wire Rope Winch for Material lifting
