Power Supply Crane Spare Parts Current Collector Sliding Contact Line Conductor Bar Systems
Power Supply Crane Spare Parts Current Collector Sliding Contact Line Conductor Bar Systems
Power Supply Crane Spare Parts Current Collector Sliding Contact Line Conductor Bar Systems
Power Supply Crane Spare Parts Current Collector Sliding Contact Line Conductor Bar Systems
Specifications
Brand Name :
JCYC
Model Number :
HFP40
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 to 300 sets per week
Delivery Time :
15 to 20 working days
Packaging Details :
Plywood case
Category :
Busbar
Feature :
Power supply
Max. Current :
240A
Max. Voltage :
660V
Dimensions :
Customised
Application :
Good Conductivity
Description

Busbar Current collector Sliding Contact Line Conductor Bar Systems

Specifications:

Electrical parameters:
Max. Current 240A
Max. Voltage 660V
Dielectric strength 30-40KV/mm
Spec. resistance 5 ×1015 Ohm × cm
Surface resistivity 1013 Ohm × cm
Leakage resistance CTI600-2.7
Mechanical parameters:
Flexible strength 75N/mm2 ±10%
Tensile strength 40N/mm2 ±10%
Temperature range:
Standard Housing -20ºC — +70ºC
High Temp. Housing -10ºC — +115ºC
Low Temp. Housing -40ºC — +80ºC
Combustibility:
Flame retardant Class B1 - no flaming particles, self-extinguishing
Resistance to chemicals:
+45ºC
Gasoline Sulphuric acid 50%
Mineral oil Caustic soda 25% & 50%
Grease Hydro-chloric acid, concentrated

Product Description:

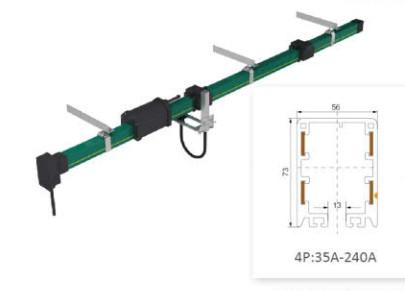

Power Supply Crane Spare Parts Current Collector Sliding Contact Line Conductor Bar Systems

Model Poles Conductor cross section (mm²) Max. Current (A) Leakage-distance (mm) Max. Voltage (V) Resistance (Ω/km) Weight (kg)
HFP56-4-8/35 4 8 35 35 660 1.944 2.09
HFP56-4-10/50 4 10 50 35 660 1.656 2.16
HFP56-4-12/65 4 12 65 35 660 1.321 2.23
HFP56-4-15/80 4 15 80 35 660 1.137 2.30
HFP56-4-20/100 4 20 100 33 660 1.011 2.43
HFP56-4-25/120 4 25 120 33 660 0.713 2.56
HFP56-4-35/140 4 35 140 33 660 0.522 2.95
HFP56-4-50/170 4 50 170 33 660 0.337 3.25
HFP56-4-70/210 4 70 210 33 660 0.265 3.85
HFP56-4-80/240 4 80 240 30 660 0.233 4.16
