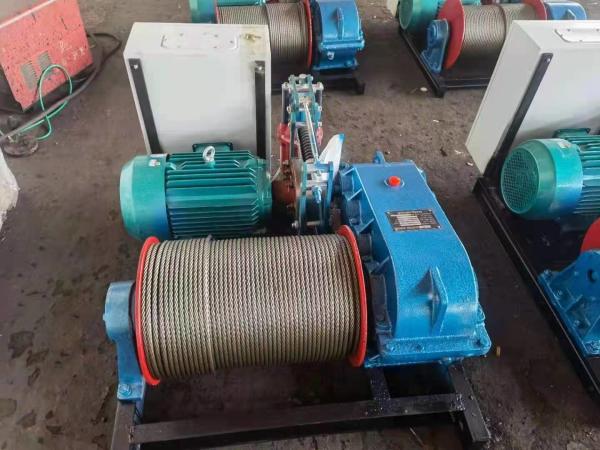

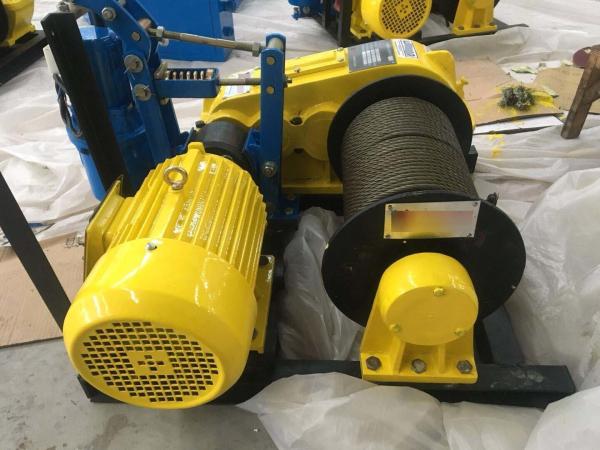

380V Electric Wire Rope Winch 1000m Lifting Height Mine Lifting Hoist Winch For Pulling
380V Electric Wire Rope Winch 1000m Lifting Height Mine Lifting Hoist Winch For Pulling
380V Electric Wire Rope Winch 1000m Lifting Height Mine Lifting Hoist Winch For Pulling
380V Electric Wire Rope Winch 1000m Lifting Height Mine Lifting Hoist Winch For Pulling
Specifications
Brand Name :
JCYC/OEM
Model Number :
JM/JK
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 unit
Price :
USD negotiate per unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability :
1000 pcs per month
Delivery Time :
10 -15 working days
Packaging Details :
Plywood case
Product name :
Lifting Hoist Winch
Lifting Weight :
0.25t to 35t
Maximum Lifting Height :
0-1000m or at request
Application :
Cranes,Boat,Mining,Marine,Construction etc.
Cable rated speed :
6-40 m/min or at request
Voltage :
220V ~ 690V 3P 50HZ/60HZ
Color :
As per request
Description

380V 220V Electric Wire Rope Winch 1000m Lifting Height For Pulling

Overview for mine winch crane

Winch is a kind of general-purposed lifting equipment, with safety, convenient in operation, reliable, durable, low in noise and so on character,

to be used widely in construction site, plant, mine, marine, port and wharf etc. It's a necessary equipment for horizontal or slope pulling.

Slow speed used for crane and installation industry feature

  • Precision needle bearing used in high-load areas offering lower friction level and longer life;
  • Electrical parts are protected by steel box from rain;
  • Emergency stop button for emergency use;
  • Steel boxes equiped with lock to avoid other people in addition to operator to operate winches;
  • It could lift, drag and drop vertically and obliquely;
  • Rope winding orderly, safe and reliable performance;
  • The big curvature, fiber oil lubrication, galvanized cover of the wire rope extend its service life;
  • Corrosion resistant painting;
  • Running stably, reliable operation with low noise (not exceed 85dB);
  • Pass 1.25 times static overload test.

Model Cable rated pull
(kg)		 Cable rated
speed
(m/min)		 Wire rope
(ɸmm)		 Reduction box Drum(mm)
Type Transmission
ratio		 Dia(ɸ) Length
JM2 2000 12 15.53 JZQ350 23.34 260 480
JM3 3000 10 17 JZQ350 31.50 310 510
JM5 5000 11 21.50 JZQ400 23.34 400 730
JM8 8000 10 26 JZQ500 31.50 500 900
JM10 10000 9 30 JZQ650 40.17 550 1000
JM12 12000 9 32 JZQ650 40.17 650 1000
JM16 16000 6.6 36.5 JZQ750 31.50 750 1830
JM20 20000 7.7 39 JZQ750 31.50 750 1830
JM25 25000 8.5 42 JZQ750 31.50 850 1925
JM30 30000 8.5 48 JZQ850 23.34 960 1960

JK fast speed electric winch


If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.

Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope dia. (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JK0.5 500 20/30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 20/30 Φ9.3 70/120 Φ165*415 5.5/7.5
JK1.5 1500 20/30 Φ12.5 80/180 Φ219*450 11/15
JK2 2000 20/30 Φ12.5 80/180 Φ219*480 11/15
JK3 3000 20/30 Φ15.5 100/200 Φ219*525 15/18.5
JK5 5000 20/30 Φ21.5 100/200 Φ325*620 22/30
JK8 8000 20 Φ26 300 Φ500*900 30
JK10 10000 19 Φ30 450 Φ550*1000 45

Electric winch generally includes the following units:

1. motor.

2. Reduction gear box.

3. winch drum.

4. Brake.

5. electric control system.

6. optional rope guider.

380V Electric Wire Rope Winch 1000m Lifting Height Mine Lifting Hoist Winch For Pulling

Questions before make quotation:

1. Purpose and application of the winch, lifting or pulling?
2. Capacity?
3. Rope volume?
4. Requirement for rope speed?
5. Power supply?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
