50t Capacity G80 Chain Lifting Hoist Extrusion Molding For Warehouses
50t Capacity G80 Chain Lifting Hoist Extrusion Molding For Warehouses
50t Capacity G80 Chain Lifting Hoist Extrusion Molding For Warehouses
50t Capacity G80 Chain Lifting Hoist Extrusion Molding For Warehouses
Specifications
Brand Name :
JCYC/OEM
Model Number :
SY-A
Certification :
CE ISO9001 manufacturing licence
Place of Origin :
CHINA
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs per month
Delivery Time :
20-30 working day
Packaging Details :
Plywood Case
Product name :
Electric Chain Hoist
Capacity :
0.3 ton to 50 ton
Lifting height :
3/6/9/12/18m or at request
Power supply :
220V-690V 3Phase 50/60Hz
Color :
Yellow/orange or at request
OEM :
Yes
Lifting chain :
G80
Description

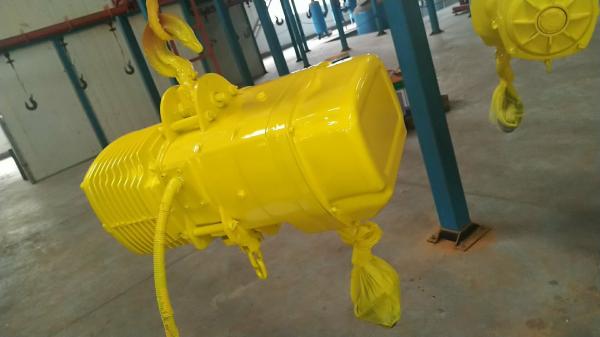

Electric G80 Chain Lifting Chain Hoist For Warehouses

Brief Introduction:

Electric chain hoist has a small,compact,light weight and cool design,use single/triple phase power supply,quickly and easily operates,easy to install,security,reliability and widely using. Ideal lifting tools for DIY, warehouses, garages, farms, hunting, engine repair shops, machine shops, restaurants, AD boards hold, show and home improvement etc, also perfect for loading and unloading heavy items from trucks and trailers.

Structure Features

The body chooses to use high strength tensile shell or die casting aluminum case, extrusion molding process thin-walled precision manufacturing, small size, low weight, high strength.
Seperate speed-adjusting system, seal the level 2 coaxial transmission speed gear mechanism with long-service oil bath lubrication system.
The electric hoist powder metallurgy clutch is used for overload protection device. The brake disc adopts dc magnetic field, braking torque, stable and rapid, the noise is small.

1. Hooks

Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.


2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.


3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.


4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.


5. Chain Bucket
Solid chain bucket as standard part for safer operation


6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.


7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.


8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.


9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.

10. Light Wight
Light weight, compact and solid body case.


11. Push Button Control
Fits operator's hand operation. Impact and chemical atmosphere resistant.


Product technical parameters:

Model Lifting Capacity(t) Lifting Height(m) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor Running Motor
Power(kw) R.P.M(r/min) Power Supply
SY-A0.5-1 0.5 3-9 6.8 12.2 0.75 1440 220-440V 50/60HZ 3Phase
SY-A1-1 1 3-9 6.6 10/20 1.5 1440
SY-A1-2 1 3-9 3.4 10/20 0.75 1440
SY-A2-1 2 3-9 6.6 10/20 3.0 1440
SY-A2-2 2 3-9 3.3 10/20 1.5 1440
SY-A3-1 3 3-9 5.4 10/20 3.0 1440
SY-A3-2 3 3-9 4.4 11/21 3.0 1440
SY-A3-3 3 3-9 2.4 11/21 1.5 1440
SY-A5-2 5 3-9 2.7 10/20 3.0 1440
SY-A7.5-3 7.5 3-9 1.8 10/20 3*2 1440
SY-A10-4 10 3-9 2.7 10/20 3*2 1440
SY-A15-6 15 3-9 1.9 10/20 3*2 1440
SY-A20-8 20 3-9 1.4 10/20 3*2 1440
SY-A25-8 25 3-9 1.1 10/20 3*2 1440
SY-A30-10 30 3-9 0.9 10/20 3*2 1440
SY-A35-16 35 3-9 0.7 10/20 3*2 1440

50t Capacity G80 Chain Lifting Hoist Extrusion Molding For Warehouses

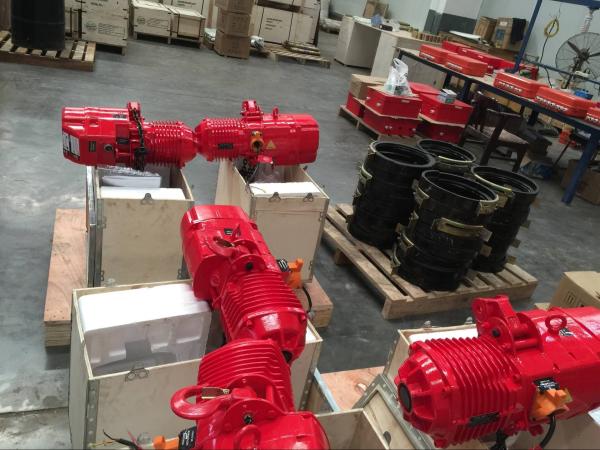

Factory show:

50t Capacity G80 Chain Lifting Hoist Extrusion Molding For Warehouses

50t Capacity G80 Chain Lifting Hoist Extrusion Molding For Warehouses
