A5 Single Girder Beam 10t Overhead Travelling Crane For Project
A5 Single Girder Beam 10t Overhead Travelling Crane For Project
A5 Single Girder Beam 10t Overhead Travelling Crane For Project
A5 Single Girder Beam 10t Overhead Travelling Crane For Project
A5 Single Girder Beam 10t Overhead Travelling Crane For Project
A5 Single Girder Beam 10t Overhead Travelling Crane For Project
Specifications
Brand Name :
JCYC / OEM
Model Number :
Single Girder Bridge Crane
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Ngotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 sets per month
Delivery Time :
20 working day
Packaging Details :
Standard export packing
Product name :
Single Beam Overhead Bridge Cranes For Sale
Span :
3-35m
Working duty :
A5, A6
Capacity :
1 ton to 20 ton
Lifting height :
1-35m
Design standard :
FEM, DIN
Power supply :
380V/440V
Description

Single Girder Beam 5t/10t Overhead Travelling Crane for Project

1. Product Feature:

European single beam overhead crane is a light duty overhead crane designed as European crane standards, eg: FEM, DIN. It has the advantage of smaller dimension, lighter self weight, higher lifting height and so on. Lifting capacity from 1 ton to 20 ton. European type single girder overhead crane has the minimum limiting distance from hook to the wall, lower headroom and more effective working space, etc. It will save more money on the initial construction investment, long term heating fee, air conditioning and other maintenance fee.

2. Technical Information(example):

Single Girder Overhead Crane(10ton)

Span(m) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Working duty A5
Lifting height(m) 6, 9, 12
Lifting speed(m/min) 0.8/5
Trolley weight(kg) 640
Total weight(kg) 2696 3200 4091 5307 6466 7694 9309
Max Wheel Load(KN) 51.85 54.44 57.7 60.83 64 67.26 71.36
Track P30
Main dimension(mm) 7.5 10.5 13.5 16.5 19.5 22.5 25.5
Rail top to main top(H) 908 908 1008 1208 1308 1358 1482
Rail top to hook centre(h) 465 465 465 365 365 365 345
Hook left limitation(C1) 675 675 675 675 675 675 695
Hook right limitation(C2) 1020
Track center to end beam lateral(A) 100
Wheel base(W) 2000 2000 2000 2500 3000 3000 3500
Crane width(B) 2674 2674 2674 3174 3674 3674 4174

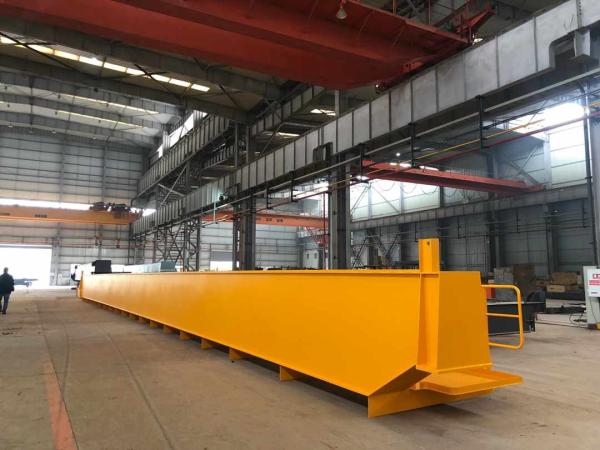

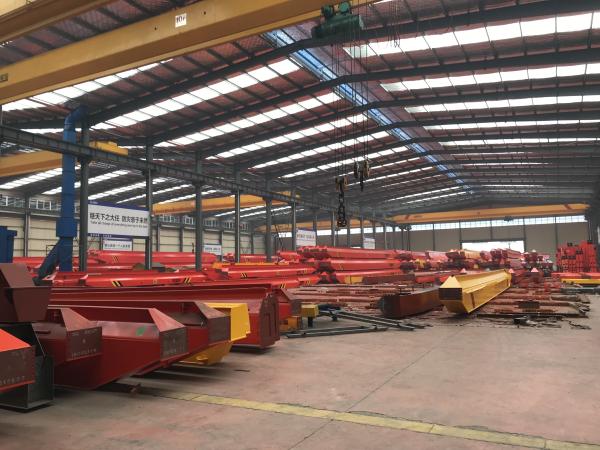

3. Product show:

A5 Single Girder Beam 10t Overhead Travelling Crane For Project

A5 Single Girder Beam 10t Overhead Travelling Crane For Project

4. Questions before quotation:

1. capacity?

2. The span of main girder?

3. The lifting height(ground to the main girder)?

4. Single speed or double speed for lifting?

5. Pendant control or remote control or cabin?

6. Power supply?(volt./3p/hz)

7. Traveling length?

7. Any other special requirements?

That will be much helpful if you can supply drawing to us.
