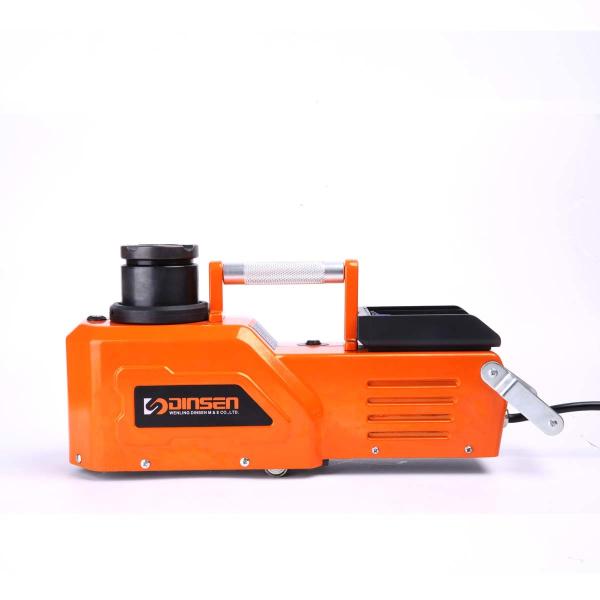

Total weight 15ton electric car jacks with jump starter built-in lithium battery
10T/15T Weight Loading Electric Hydraulic Jack | |
Model No. | DSJ0380-2 |
Description | Electric Hydraulic Jack with lithium battery for 10T/15T |
Port | Ningbo or Shanghai |
Payment terms | 1)30% T/T in advance,the balance paid against copy of B/L 2)L/C at sight |
Warranty | One Year |
Color | Available to be customized (With MOQ request) |
Certification | Patent certifications: ISO9001, ASME PASE-2014, CE, RoHS |
N.W./G.W. | 12.3/13.0kgs |
Package | Color box with foam or Woven bag with foam |
Set/ctn | 2pcs |
Dimensions | 485*370*270mm |
20FT | 1210pcs
|
Electric Hydraulic Jack | |
Rated Power | 300W |
Operating Voltage | DC12V/24V |
Max.Current | 25A/15A |
Fuse | 30A/15A |
Lift Range | 200mm-520mm |
Max.Loading Car Weight | 10.0T/15.0T |
Power Cable | 5m |
FEATURES:
♦ 1. USB charging: Charging cell phone or tablet.
♦ 2. Jump start 12V vehicle.
♦ 3. For power supply to 12V vehicles or 12V electronics.
♦ 4. Approx. 4-5 hours recharging time, convenient to operate.
♦ 5. With the functions of Reverse-charge protection, Short-circuit protection, over-temperature protection, Reverse polarity protection, Over-discharge protection, Over-charge protection.
Lithium Battery Specification | |
Model No. | DSLB01 |
Battery Capacity | 12000mAh(44.4Wh) |
Output | 12V/10A (12V car electronic products) 12V Jump Starter |
Input | Quick Charge (5V2.4A,9V/2A,12V-1.5A) |
Full charging time | 4-5hours |
Life time | >1000cycles |
Start Current | 200A |
Peak Current | 400A |
Size | 128*97*50.5mm |
Weight | 560g |
Operating Temperature | -20℃~60℃ |
FEATURES:
♦ 1. New design matched with Lithium battery.
♦ 2. Mental cover, more durable and long lasting.
♦ 3. Designed with current overload protection.
♦ 4. LED light design, convenient for night illumination.
♦ 5. Equipped with automatic telescopic sliding wheel, easier to carry and also adjust the position properly when lifting.
♦ 6. Matched with safety Valve, in any emergency, if the vehicle couldn't be fallen down by the jack, the safety valve can be operated manually.
♦ 7. Widely used for saloon car, large pick-up truck, and the lorry for total weight within 10T/15T.
♦ 8. Lithium Battery could be used as Jump Starter: Jump under 4.0L gasoline car.
♦ 9. Lithium battery with the functions of Reverse-charge protection, Short-circuit protection, over-temperature protection, Reverse polarity protection, Over-discharge protection, Over-charge protection.
DINSEN is the specilist manufacturer of the electric hydraulic jack, electric impact wrench and auto inflator pump, not trading company.
DINSEN can offer you the best price and after sale service.
1.The MOQ request?
DINSEN brand: no MOQ request.
OEM brand: MOQ request accordingly.
2.About the sample?
The sample cost and freight fee has to be charged accordingly.
3.About payment terms?
1) 100% T/T for sample orders.
2) 30% T/T in advance, balance before delivery or against copy of B/L.
3) L/C at sight.
4.How long does it take to receive my order?
About 25 working days after we confirmed payment and 10 working days for sample order.
5.What basic information should I provide when inquiry?
1) Quantity.
2) Ma. lifting weight.
3) Min. lifting height.
4) Max. bearing capacity
5) Other request (such as logo printing, custom packaging and ect) if you have.
6.About warranty time?
DINSEN provide one year warranty time
7.About price
The exact prices shall be quoted accordingly based on different details and your requirements, OEM is also available.
Sincerely looking forward to cooperating with customers from all over the world!
